Front Backrest -- Without Power or Lumbar Support Seats

REMOVAL
1. Remove the front seat.







2. Remove the backrest adjust lever.
1 Pull the spring clip up to release the handle.
2 Remove the handle.

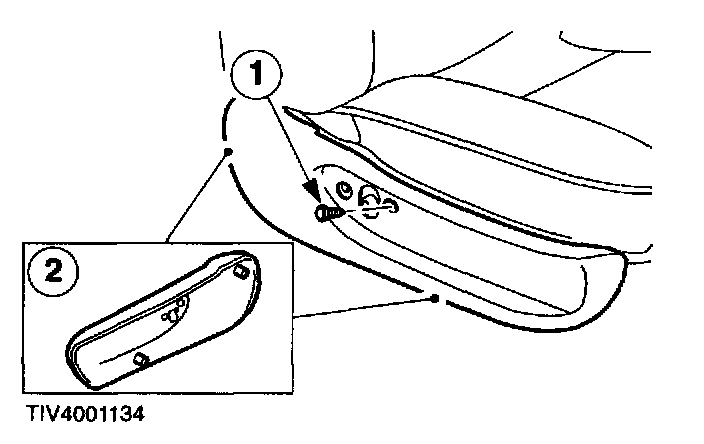

3. Remove the seat base outer trim panel.
1 Remove the retaining screw.
2 Pull the panel to release the two retaining dowels.

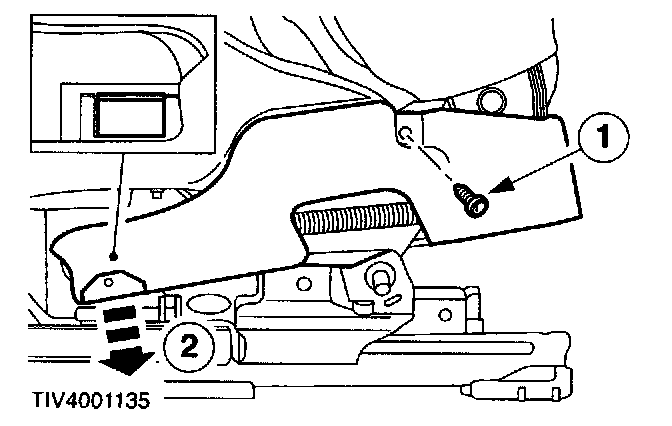

4. Remove the seat base inner trim panel.
1 Remove the retaining screw.
2 Detach the clip.

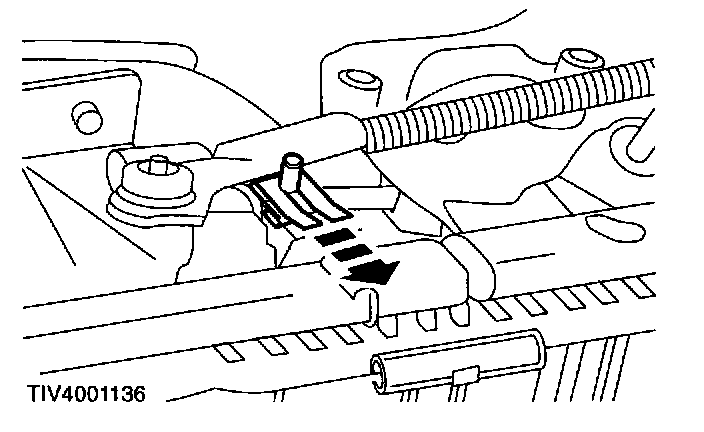

5. Detach the inner backrest release cable.

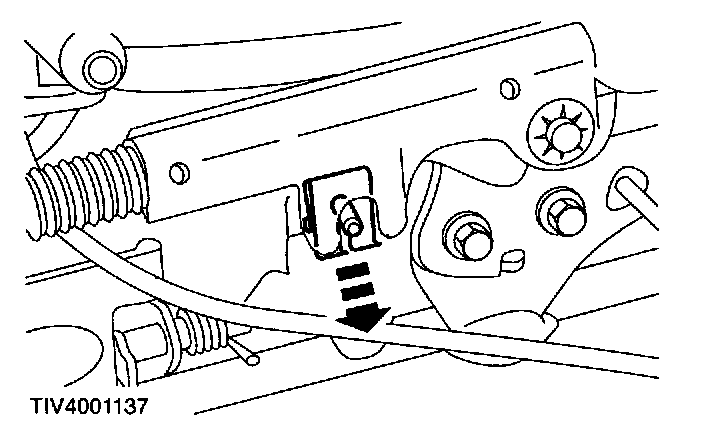

6. Detach the outer backrest release cable.

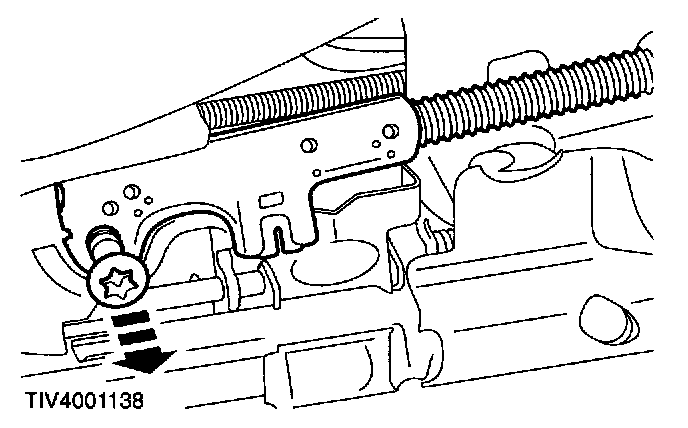

7. Detach the inner seat backrest spring assister.

CAUTION: Make sure the seat back is fully upright before proceeding to the next step.

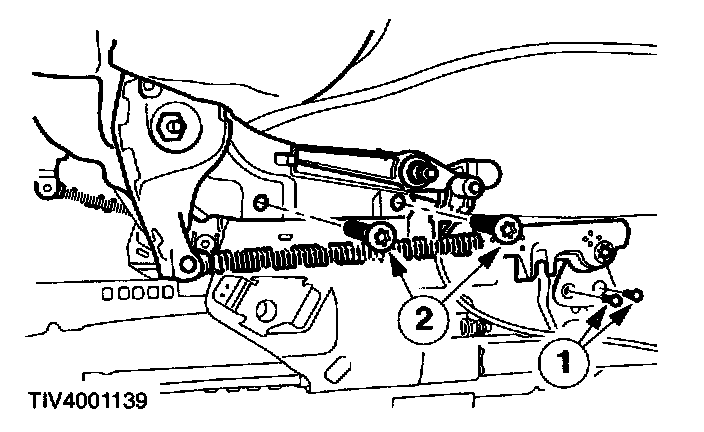

8. Remove the seat backrest.
1 Remove the two backrest spring assister retaining screws.
2 Remove the two Torx retaining screws.

INSTALLATION
1. To install, reverse the removal procedure.
