Rear Seat Backrest

REMOVAL







1. Fold the rear seat backrest forwards.
1 Pull the seat back release in the luggage compartment.
2 Lower the seat backrest.

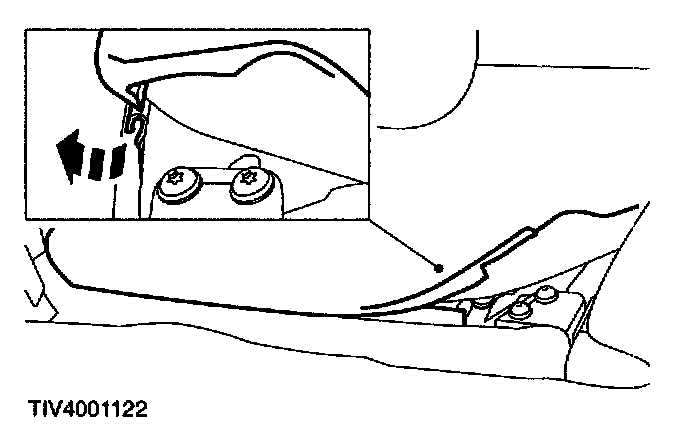

2. Release the retaining strip.







3. Remove the rear seat backrest.

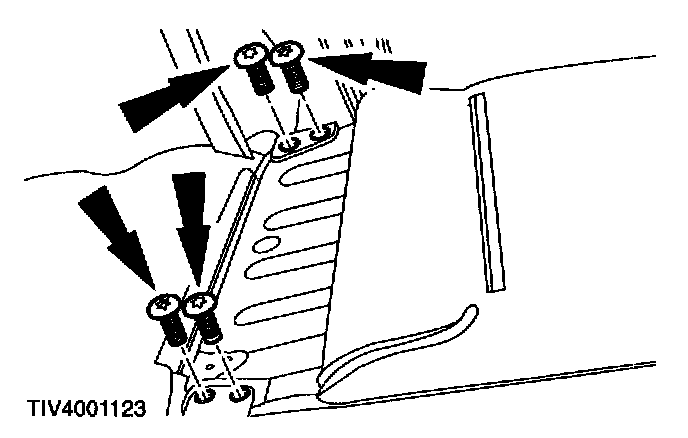

^ Remove the four Torx retaining bolts.

INSTALLATION
1. To install, reverse the removal procedure.
