Manual Seat

REMOVAL

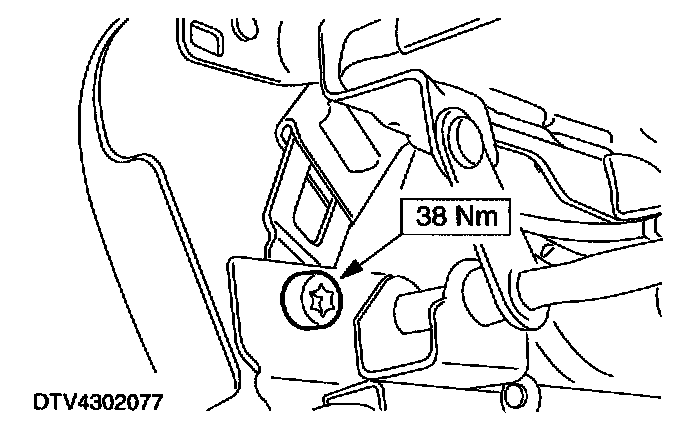

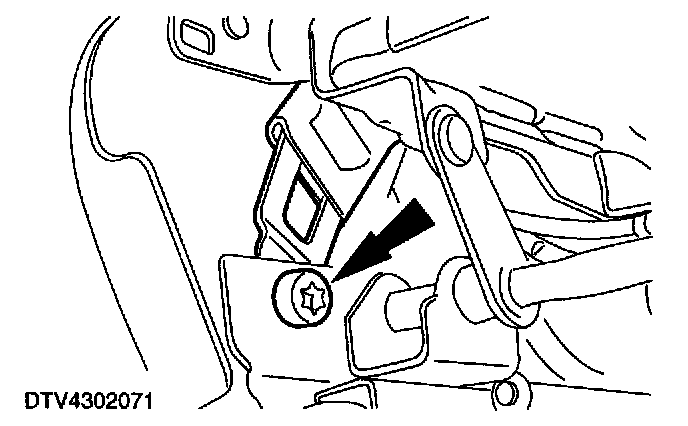

1. Detach the safety belt.
^ Remove the Torx retaining bolt.

2. Move the seat fully forwards.

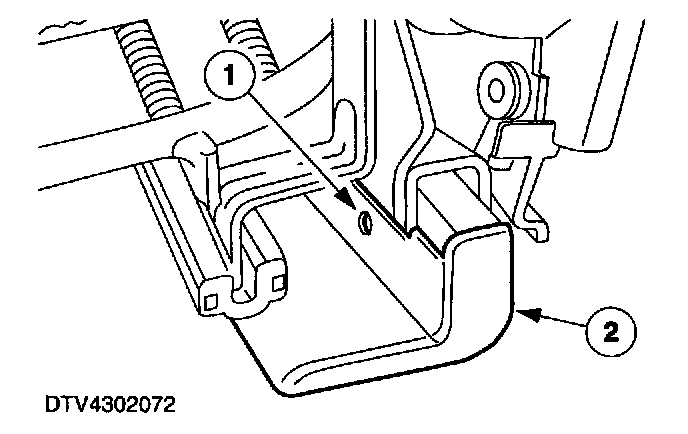

3. Remove the left and right - hand seat track trim.
1 Remove the retaining screw each side.
2 Remove the trim each side.

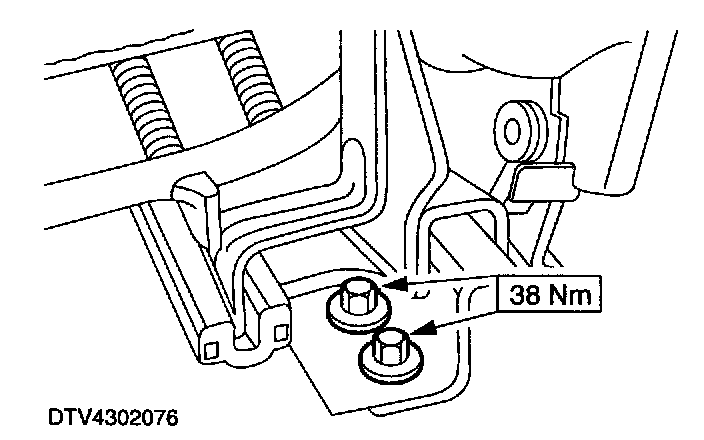

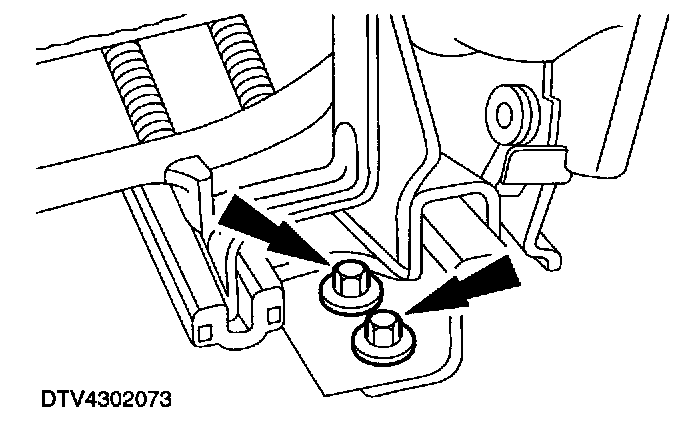

4. Remove the left and right - hand rear retaining bolts.
^ move the two bolts each side.

5. Move the seat fully rearwards.

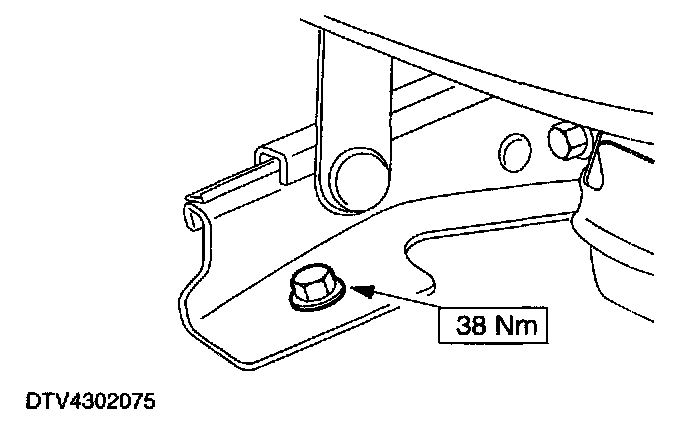

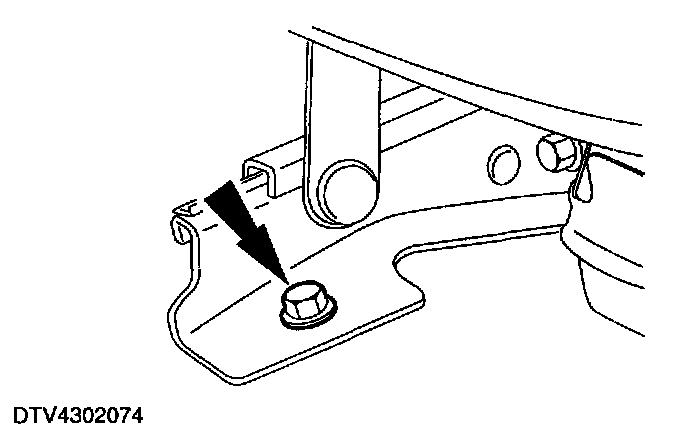

6. Remove the left and right front retaining bolts.
^ Remove one bolt each side.

7. Remove the seat.

INSTALLATION

















1. To install, reverse the removal procedure.
