Rear Seat Cushion
Rear Seat Cushion
DISASSEMBLY
1.
Remove the rear seat cushion.
2.

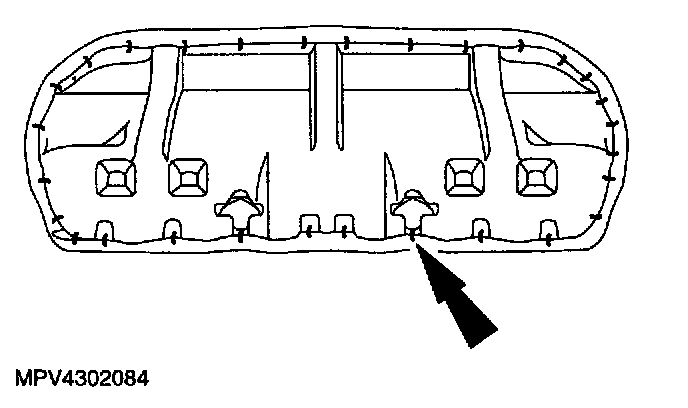

Remove the hog rings.
3.
Remove the cover.
^

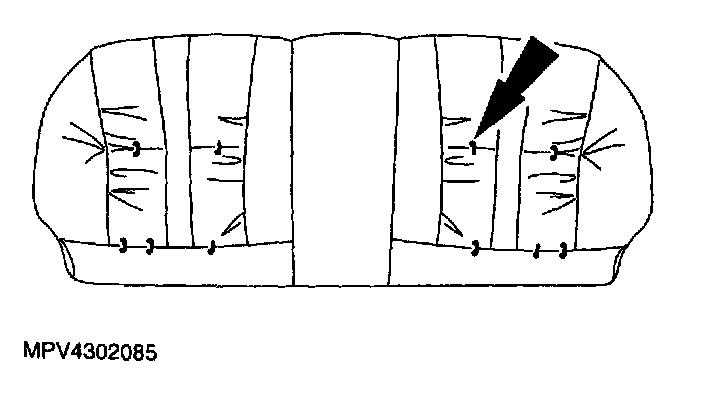

Remove the hog rings from under the cover.
ASSEMBLY
1.
To assemble, reverse the disassembly procedure.
