Front Seat Cushion

DISASSEMBLY
1. Remove the front seat backrest.







2. Remove the safety belt buckle.
^ Detach the warning lamp wiring harness (if equipped).

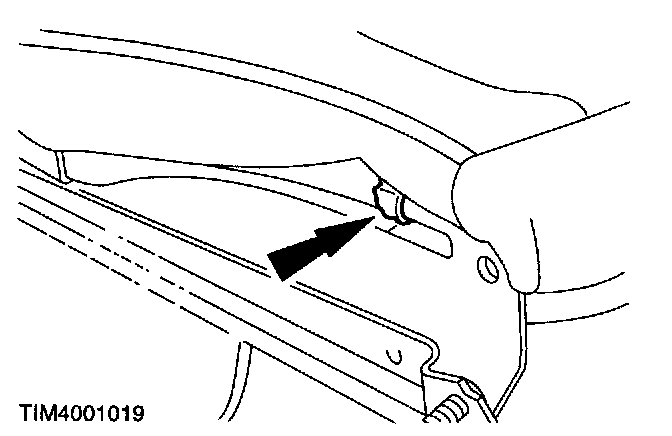

^ Remove the retaining nut

NOTE: Retaining nuts use both left and right-hand thread.







3. Remove the two staples.







4. Detach the cushion and cover.

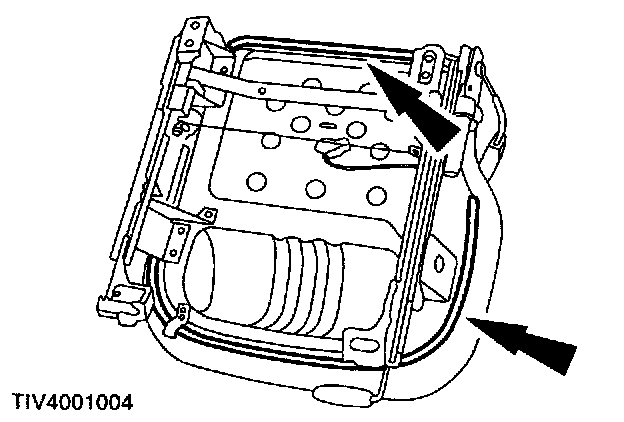

^ Detach the retaining strip.







5. Remove the seat cover.

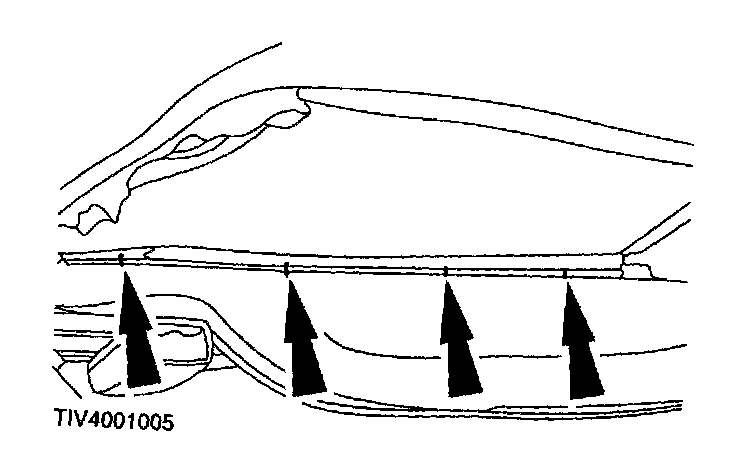

^ Cut the hog rings from the left and right-hand side.

ASSEMBLY







1. To assemble, reverse the disassembly procedure.
