Component Tests and General Diagnostics

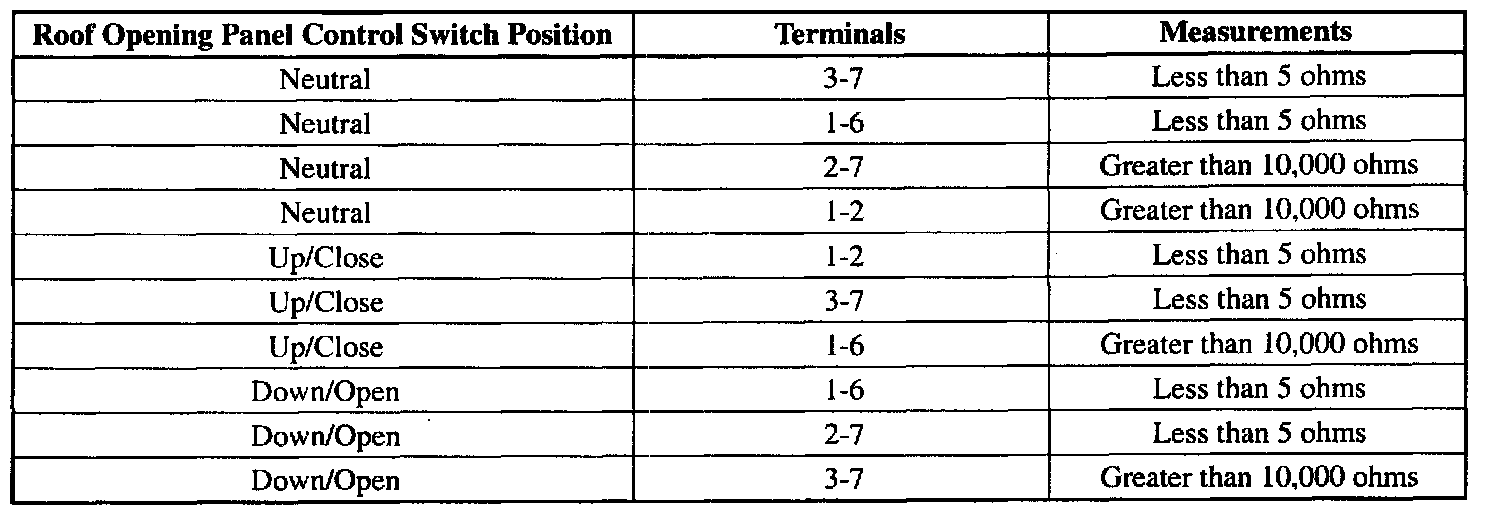

1. Measure the resistance:
2. If all measurements of the roof opening panel control switch are as noted, return to the Pinpoint Test. Otherwise install a new roof opening panel control switch. Pinpoint Tests
