Roof Opening Panel Shield

REMOVAL
1. Remove the glass roof panel. For additional information, refer to Roof Opening Panel Glass.
2. Slide the opening shield to the closed position.

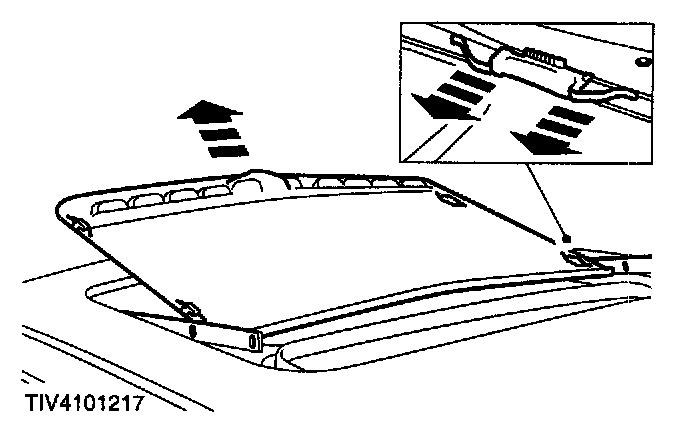

3. Release the metal retaining tabs and lift the opening shield from the track.

INSTALLATION
1. To install, reverse the removal procedure.
