Roof Opening Panel Motor

REMOVAL
1. Remove fuse F21 (40A).
2. Remove the interior lamp.

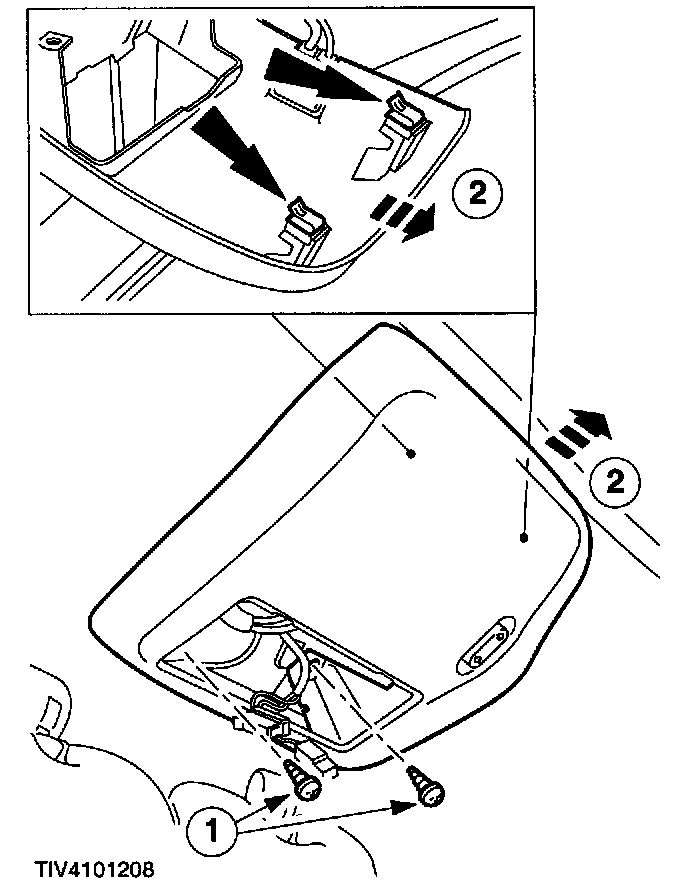

3. Remove the overhead console.
1 Remove the screws.
2 Slide the console towards the roof opening panel.







4. Disconnect the roof opening panel electrical connectors.

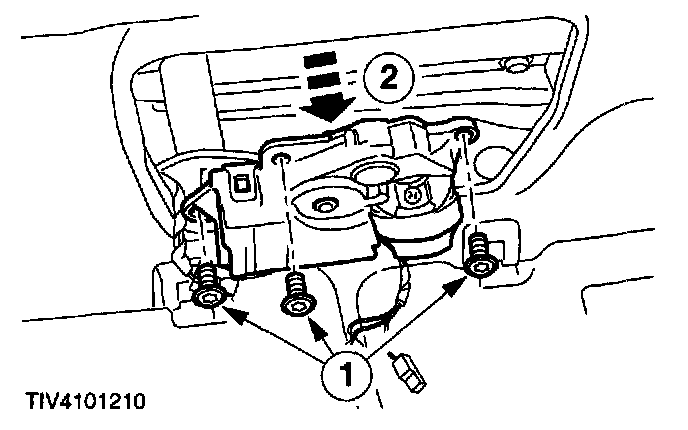

5. Remove the roof opening panel motor control unit.
1 Remove the screws.
2 Remove the roof opening panel motor.

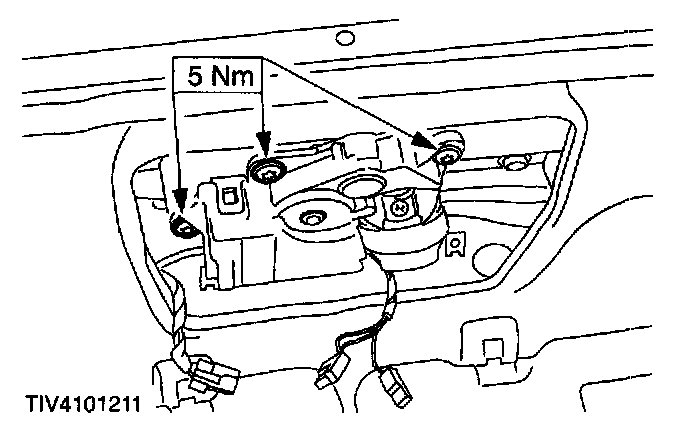

INSTALLATION







1. To install, reverse the removal procedure.
2. Synchronize the roof opening panel motor. For additional information, refer to Motor Synchronization. General Procedures
