Roof Opening Panel Glass

REMOVAL

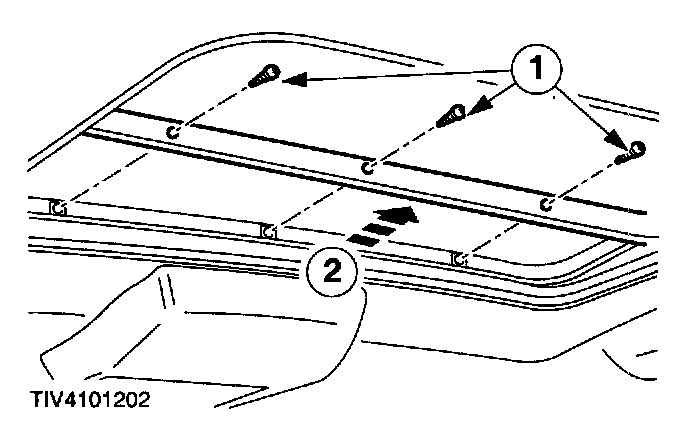

1. Detach the roof opening panel surround.
1 Remove the screws.
2 Slide the surround into the stowage space above the headliner.

2. Raise/tilt the roof opening panel.

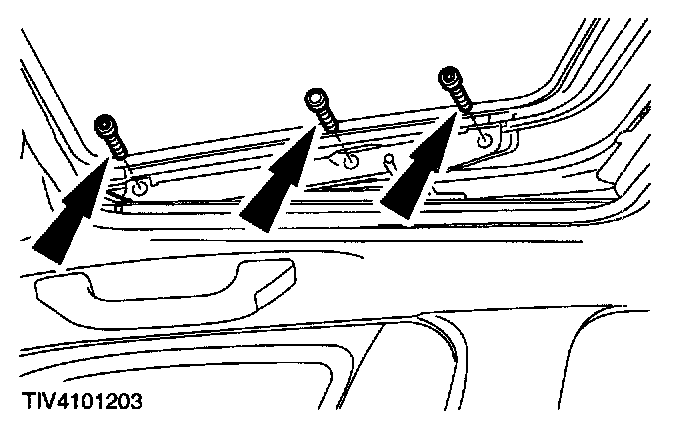

3. Remove the roof opening panel.
^ Remove the three screws from each side.

INSTALLATION

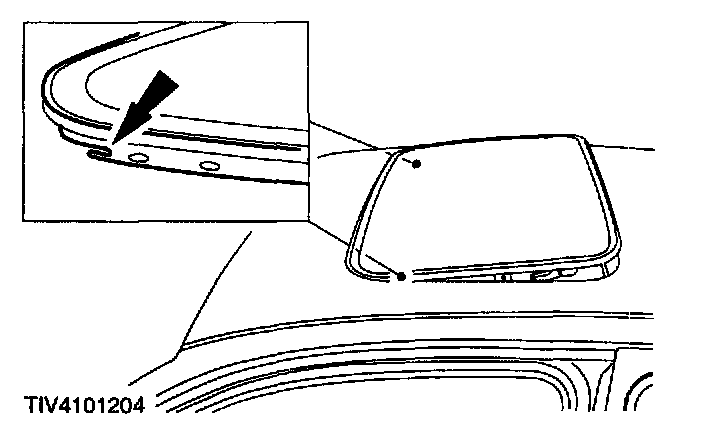

1. Position the roof opening panel guides at the front edge of the frame.







2. Install the roof opening panel screws on both sides.

NOTE: Do not tighten the screws at this stage.

3. Adjust the roof opening panel. For additional information, refer to the procedure: Roof Opening Panel Alignment.







4. Install the roof opening panel surround.
1 Slide the surround to the front of the roof opening panel.
2 Install the retaining screws.
