Roof Opening Panel Front Drain Hose

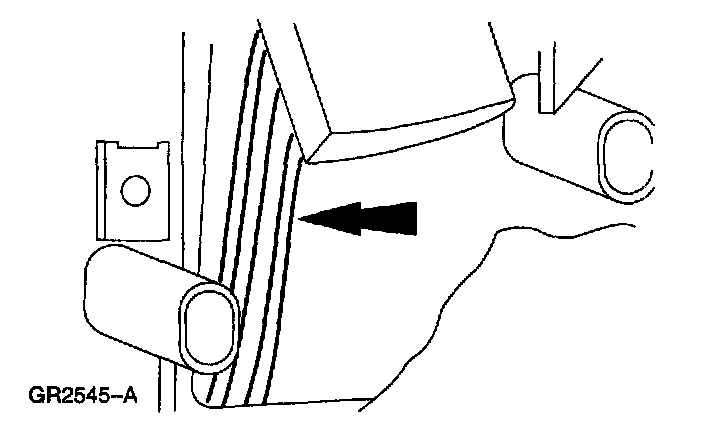

REMOVAL
1. Remove the roof headliner.

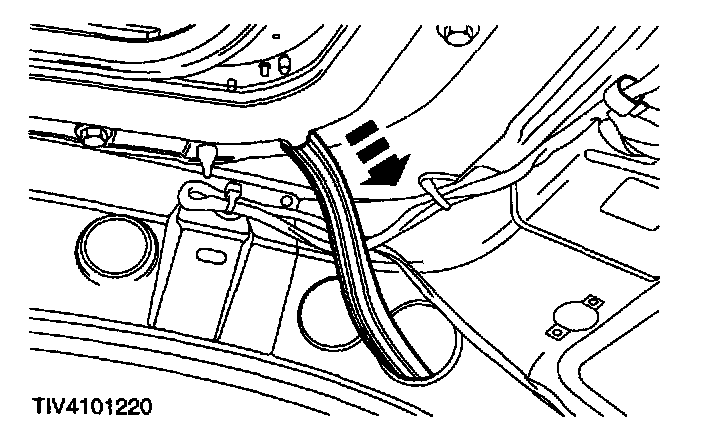

2. Detach the drain hose from the roof opening panel.







3. Detach the scuff plate.

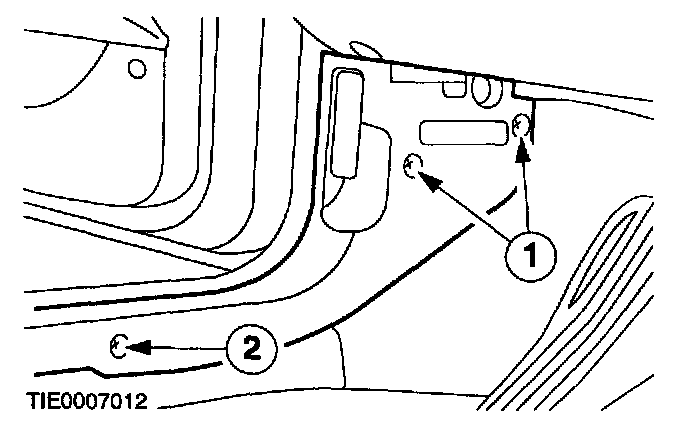

1 Remove the two clips.
2 Remove the screw.

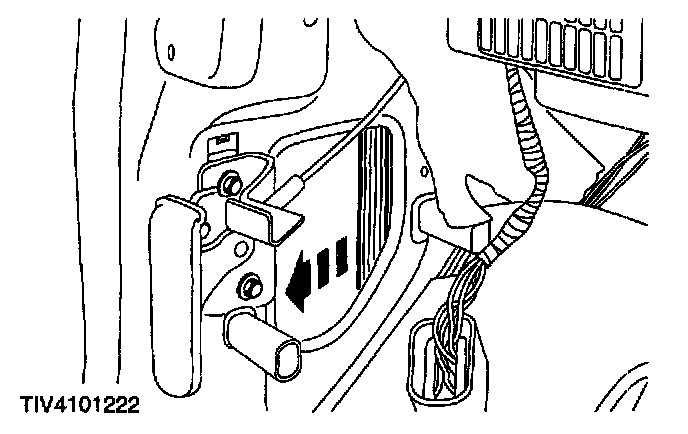

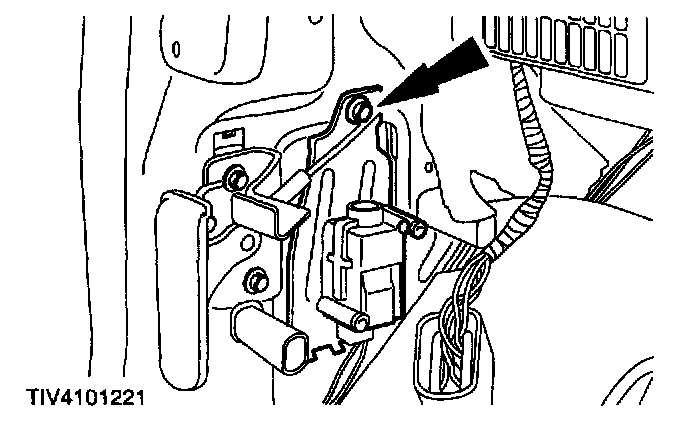

4. Detach the fuel cut off reset switch.

NOTE: On the right-hand side of the vehicle detach the electrical connector box.

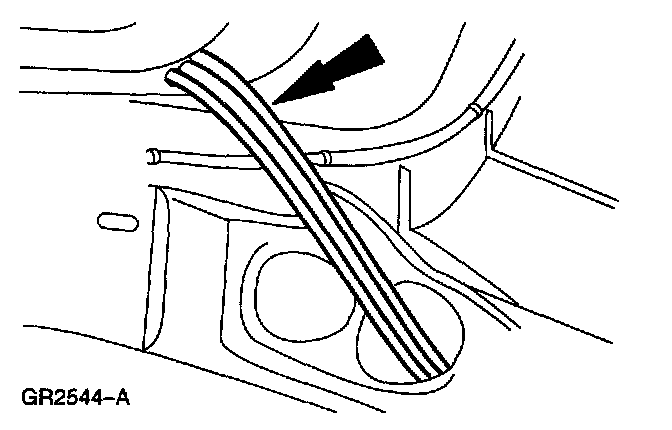

5. Detach the drain hose and remove it from the A-pillar.

INSTALLATION







1. Position the drain tube down the A pillar and connect it to the roof opening panel frame.







2. Make sure the pipe is not bent or kinked behind the scuff plate.







3. Install the fuel cut off reset switch.

NOTE: On the right-hand side of the vehicle install the electrical connector box.







4. Install the scuff plate.
1 Install the two clips.
2 Install the screw.

5. Install the roof headliner.
