Roof Opening Panel Cable and Guide

REMOVAL

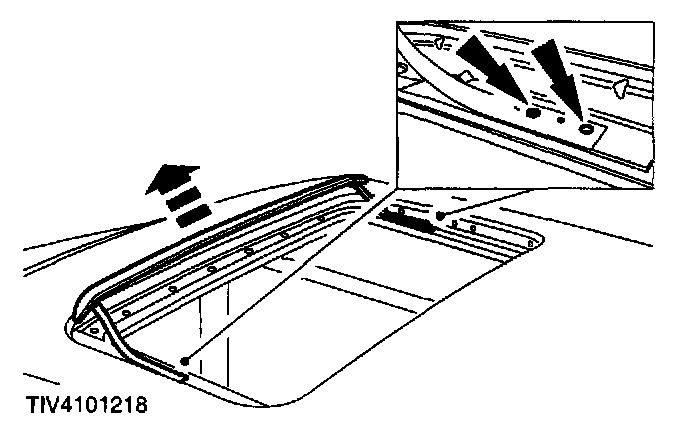

1. Remove the glass roof panel. For additional information, refer to Roof Opening Panel Glass.
2. Position the roof sliding rails and guide to the full open position.







3. Remove the roof air deflector.

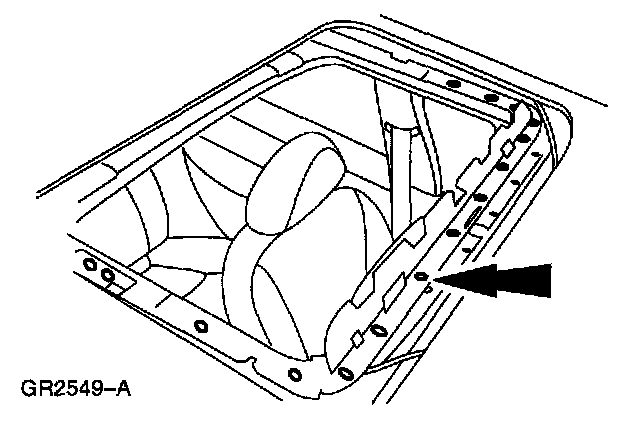

4. Remove the 16 screws retaining the sliding cables cover.

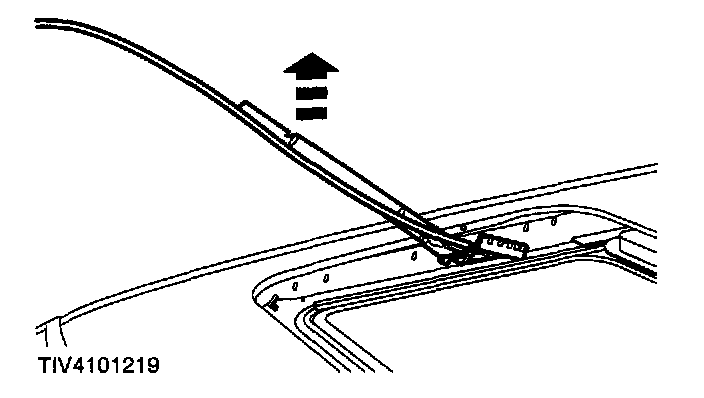

5. Remove the sliding cables and guides.

INSTALLATION
1. To install, reverse the removal procedures
