Mirrors: Service and Repair

EXTERIOR MIRROR


REMOVAL

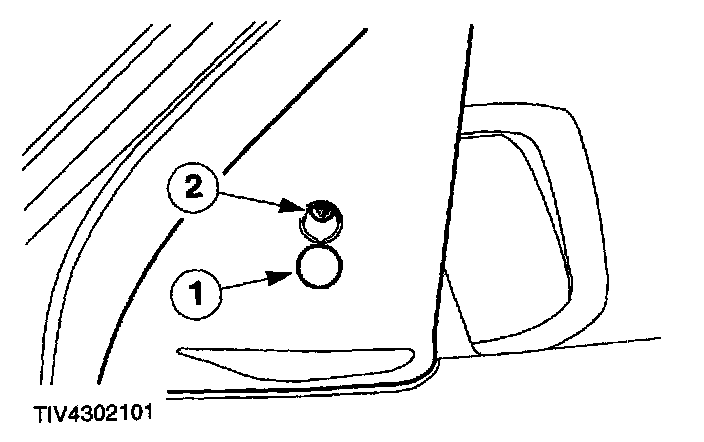

1. Remove the bezel.
1 Remove the screw cover.
2 Remove the screw.

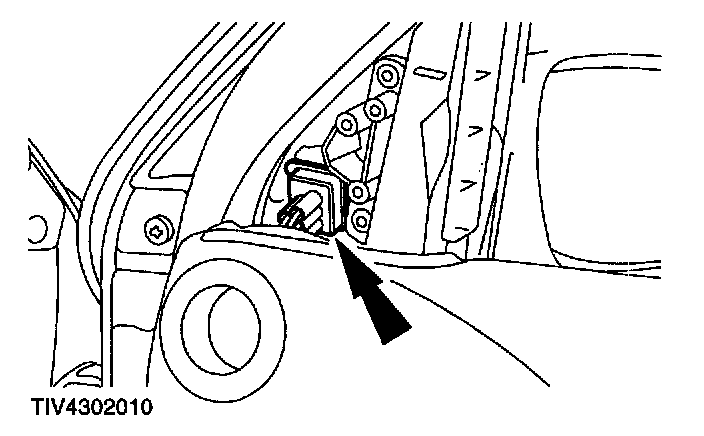

2. Disconnect the electrical connector.

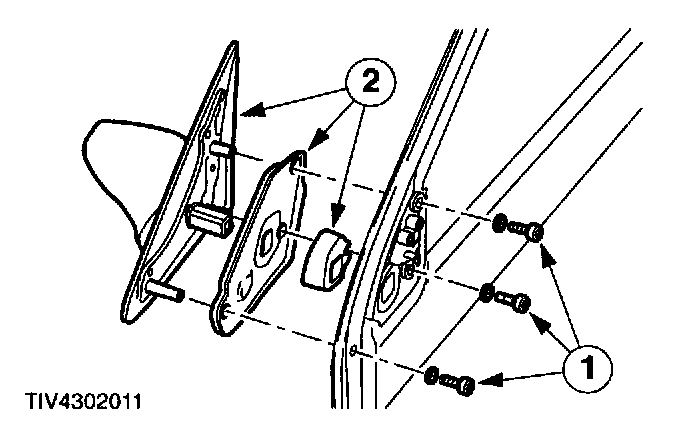

3. Remove the mirror.
1 Remove the screws.
2 Remove the mirror.

NOTE: Note the position of the gaskets.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure the gaskets are correctly positioned.
