Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Test C: All the Locks Operate From One Switch Only

Test C: All the Locks Operate From One Switch Only

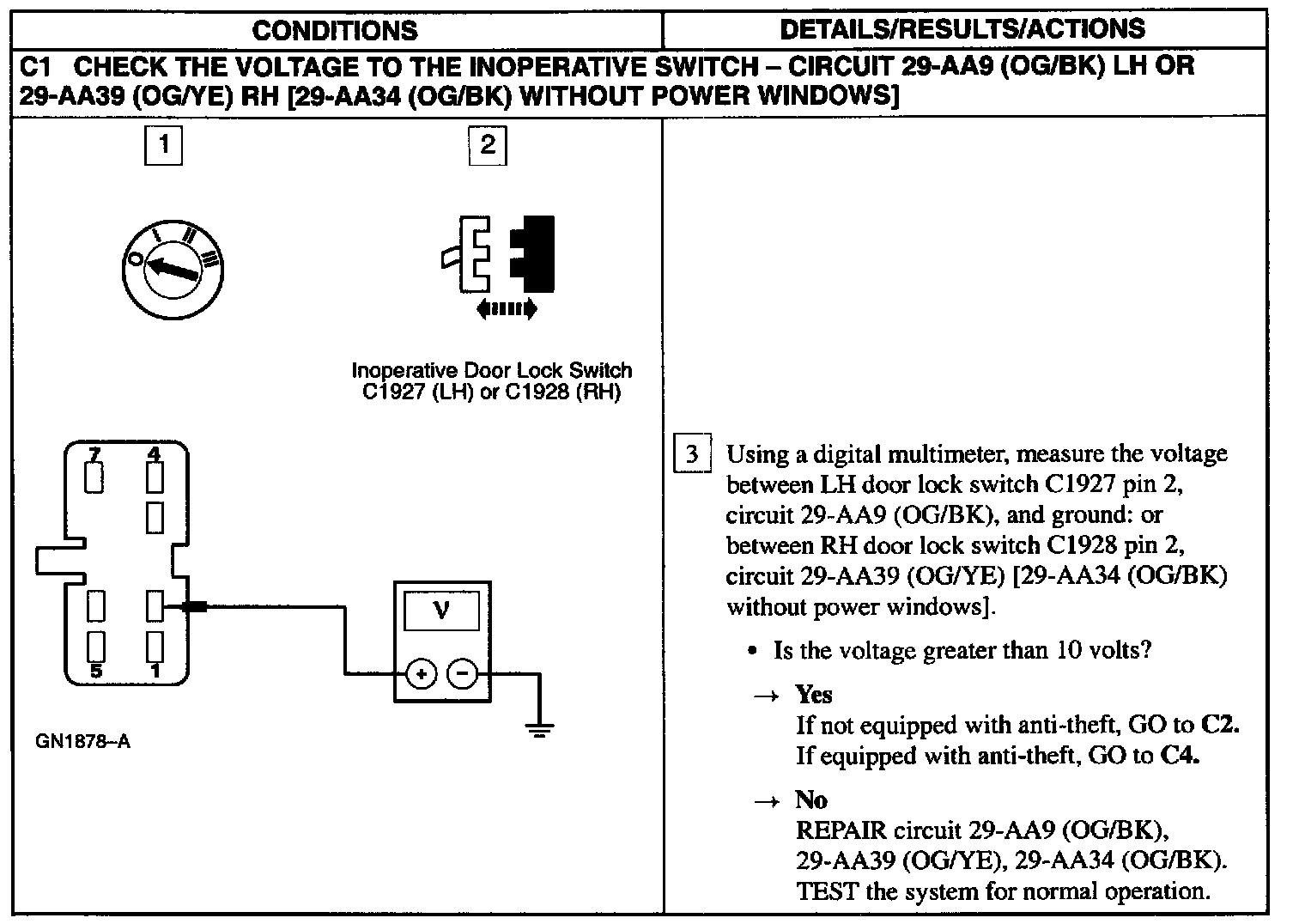

C1:

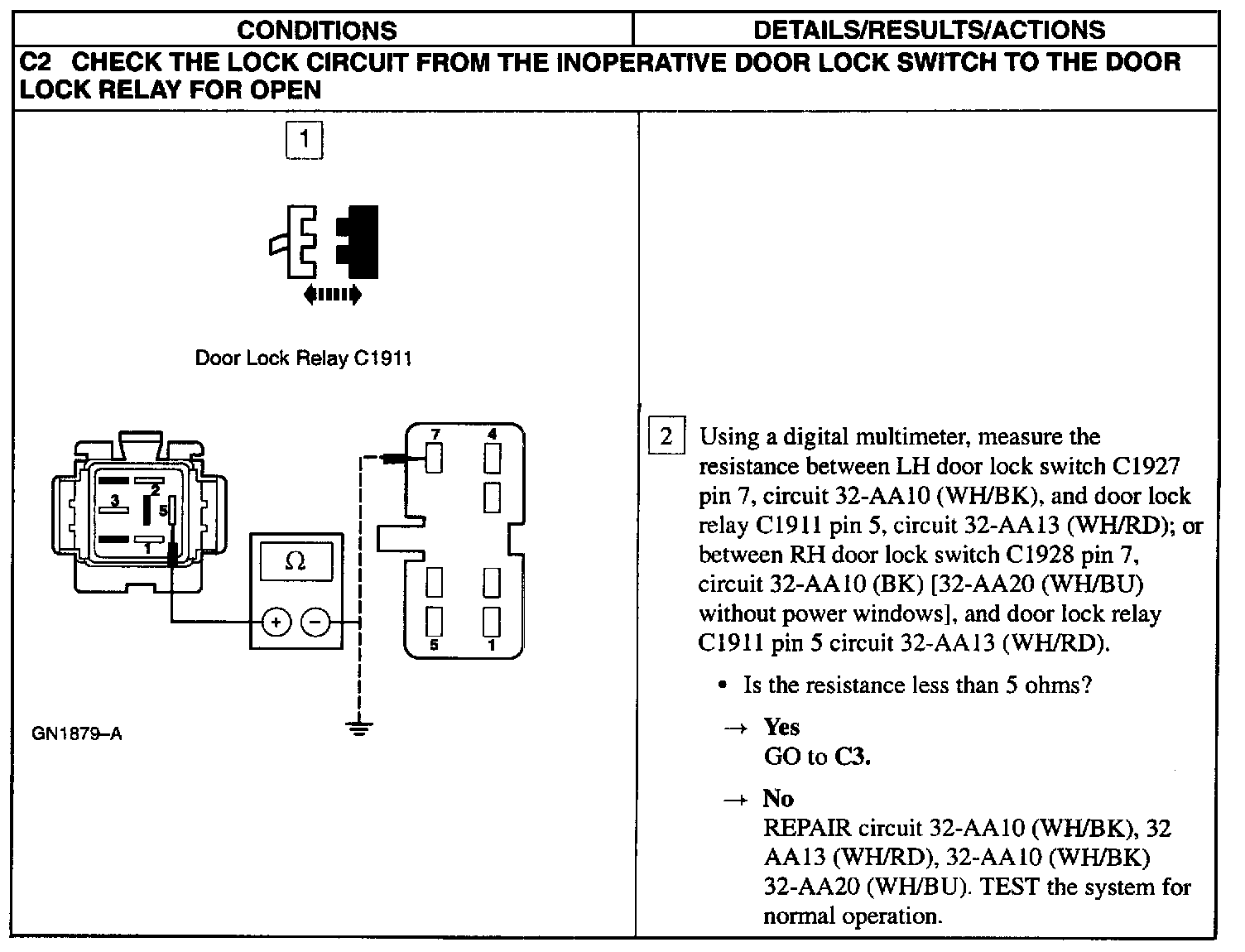

C2:

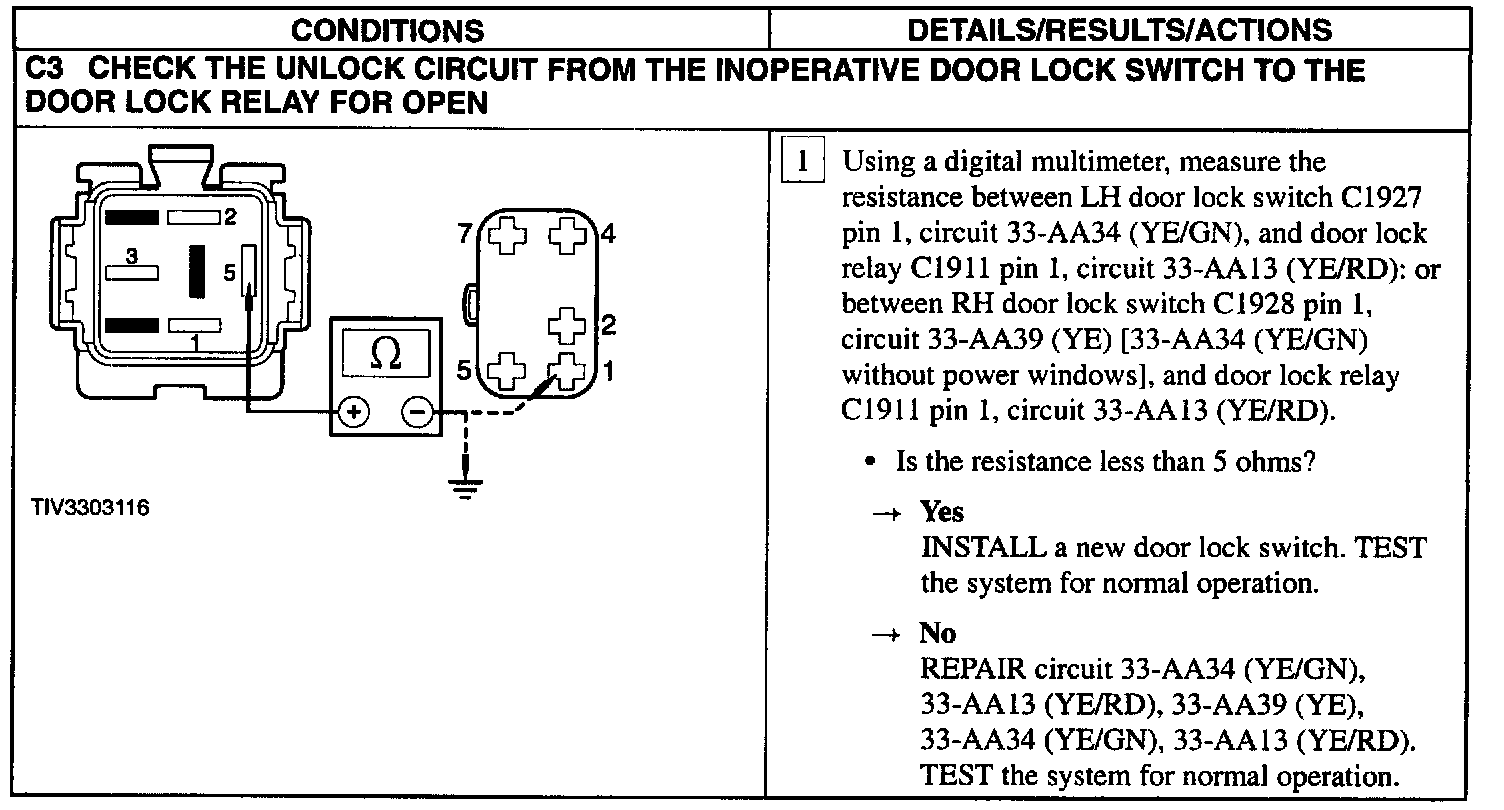

C3:

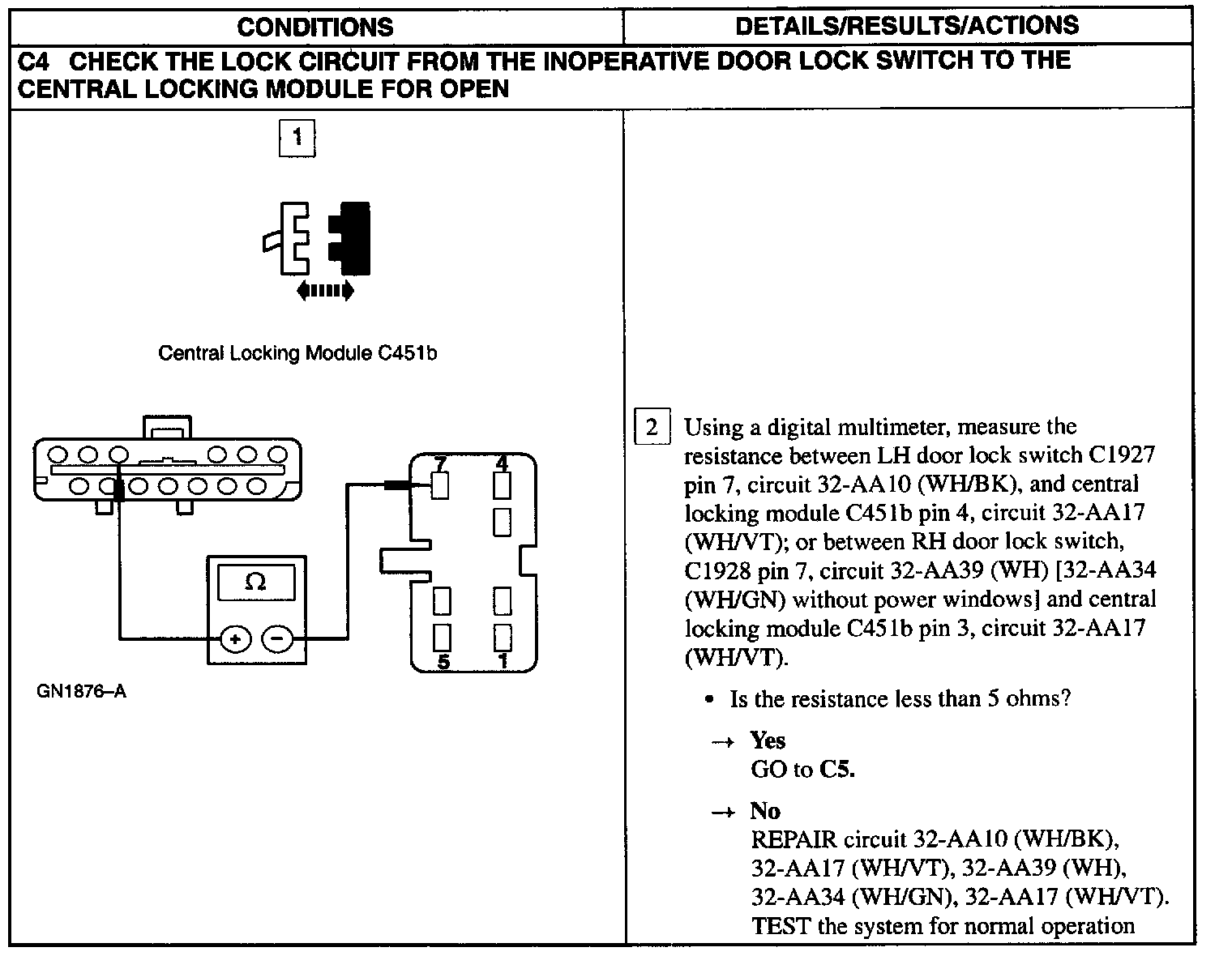

C4:

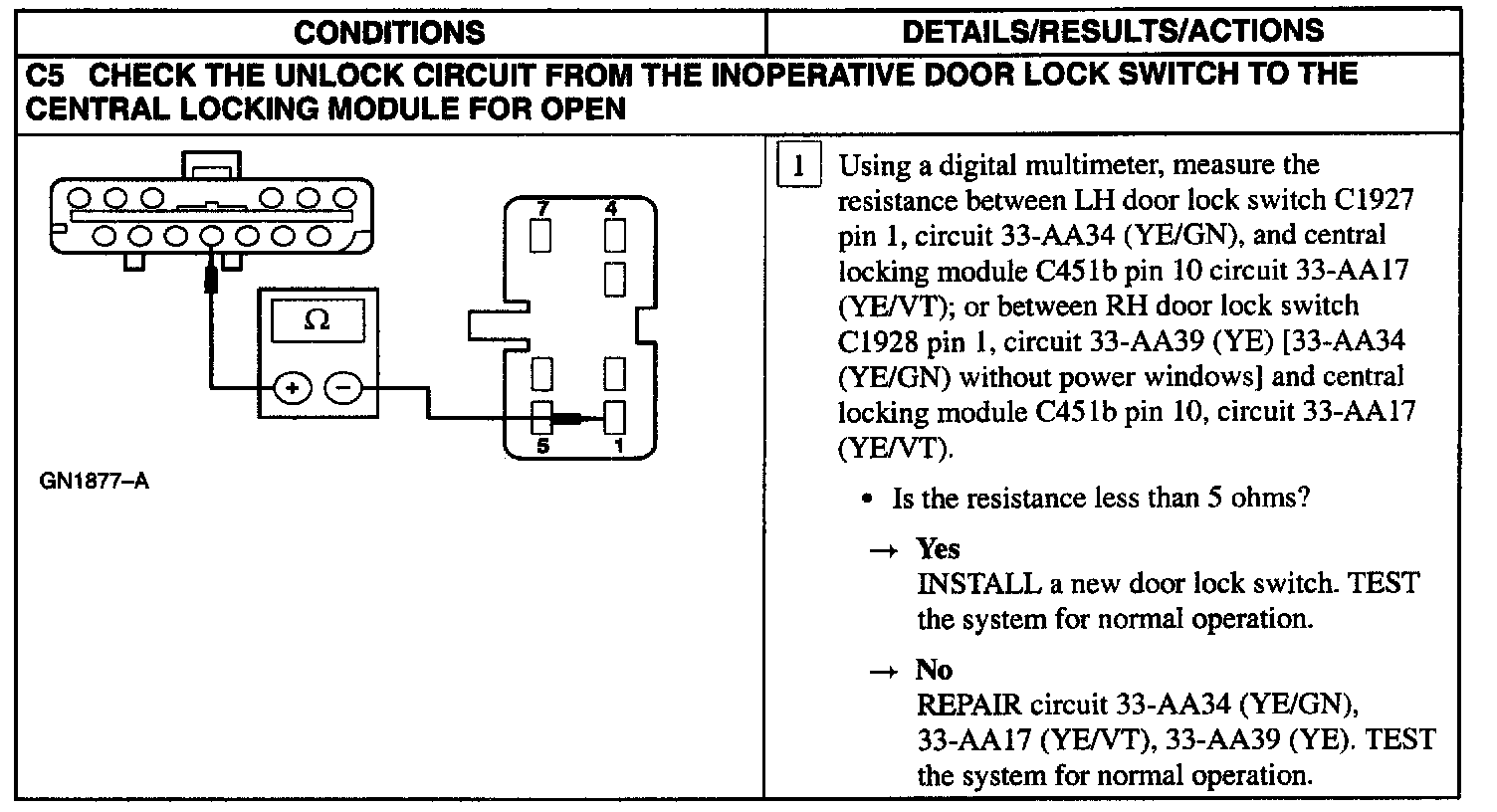

C5:
