Scuff Plate Trim Panel

SCUFF PLATE TRIM PANEL

Removal
1. Remove the B - pillar trim panel.
2. Remove the seat base outer trim panel.

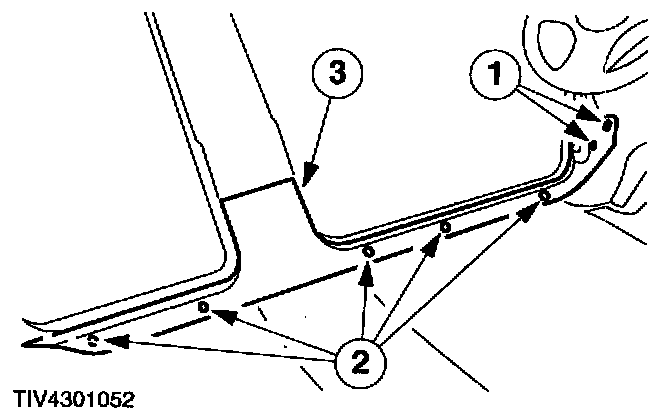

3. Remove the trim panel.
1 Remove the clips.
2 Remove the screws.
3 Remove the panel.

Installation
1. To install, reverse the removal procedure.
