C-Pillar Trim Panel

C-PILLAR TRIM PANEL

Removal

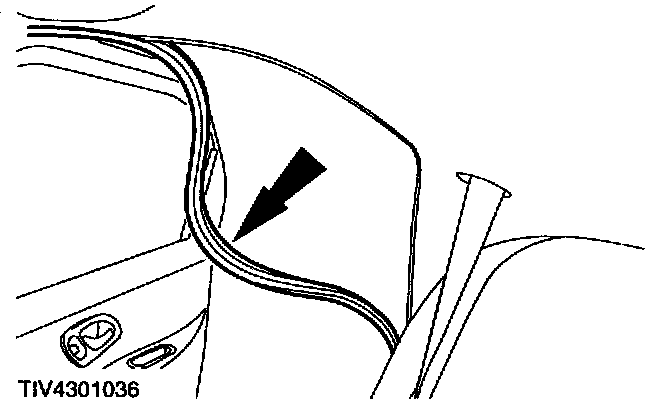

1. Detach the door weatherstrip.







2. Remove the seat side bolster.
- Disengage the clips.

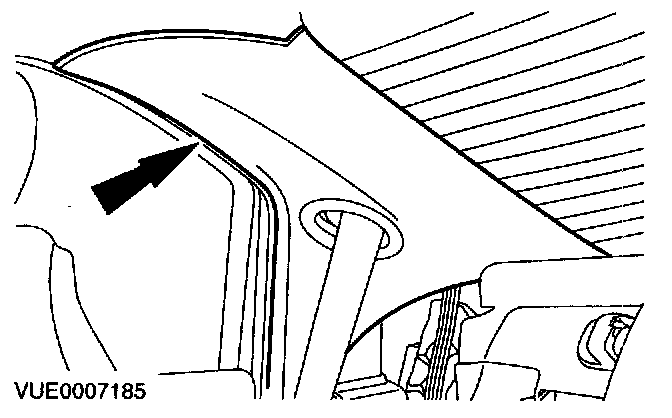

3. Detach the trim panel.

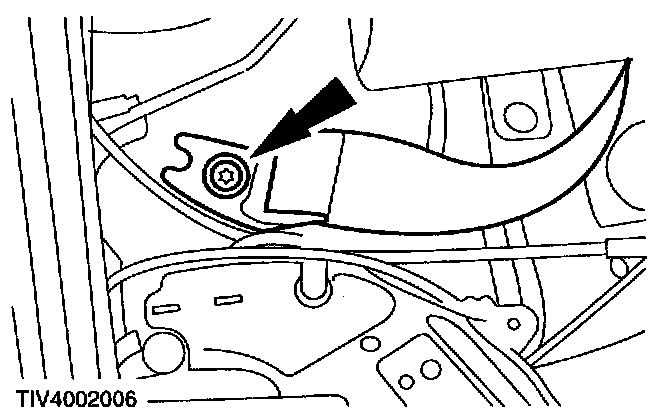

4. Detach the lower rear safety belt retaining plate.







5. Remove the trim panel.

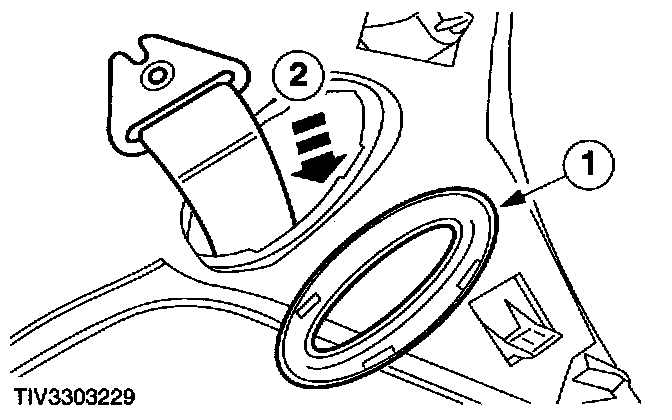

1 Remove the trim bezel.
2 Pass the safety belt through the trim panel.

Installation

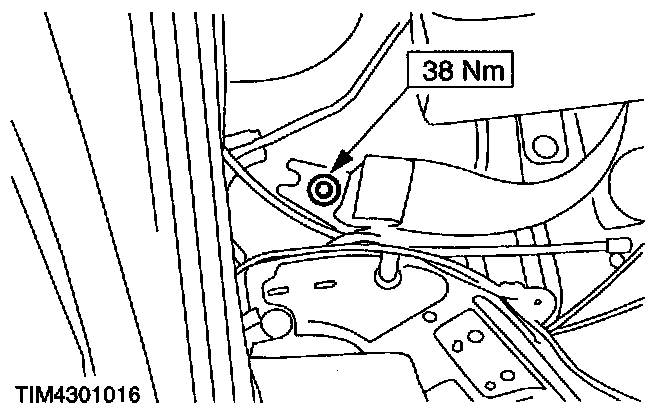

1. To install, reverse the removal procedure.
