A-Pillar Trim Panel

A-PILLAR TRIM PANEL

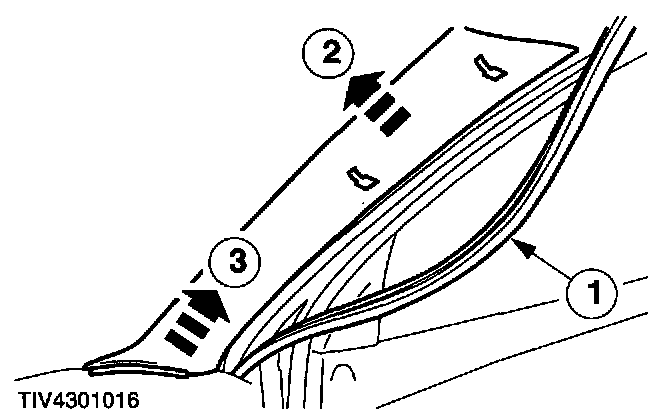

Removal







1. Remove the trim panel.
1 Detach the door weatherseal.
2 Lever the trim panel outwards to release the clips.
3 Pull the trim panel upwards.

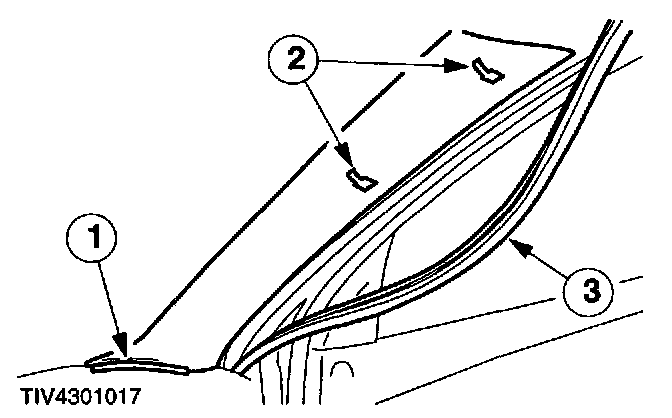

Installation







1. Install the trim panel.
1 Position the seal and push the trim panel down.
2 Engage the clips.
3 Install the door weatherseal.
