Scuff Plate Trim Panel

REMOVAL
1. Remove the B- pillar trim panel.
2. Remove the seat base outer trim panel.

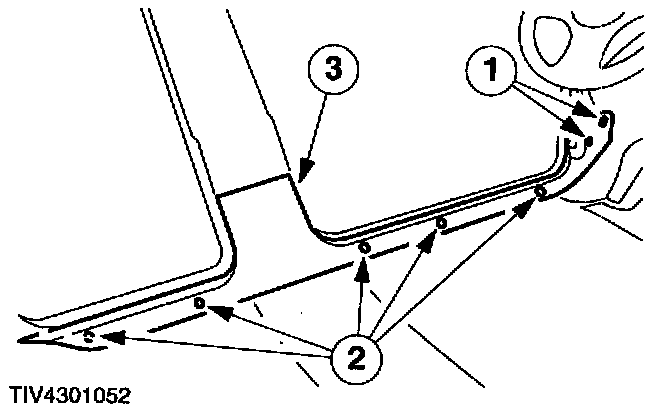

3. Remove the trim panel.
1 Remove the clips.
2 Remove the screws.
3 Remove the panel.

INSTALLATION
1. To install, reverse the removal procedure.
