C-Pillar Trim Panel

REMOVAL

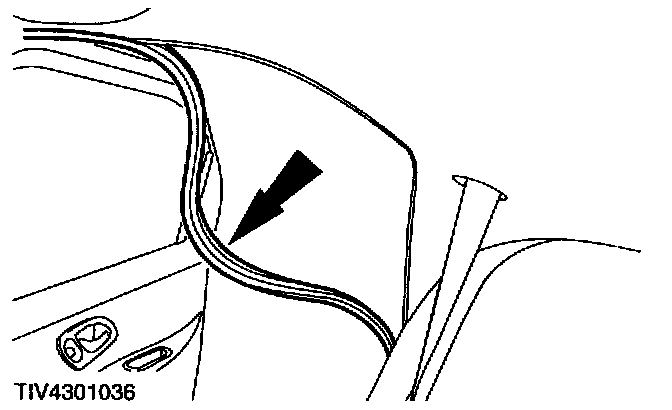

1. Detach the door weatherstrip.







2. Remove the seat side bolster.
- Disengage the clips.

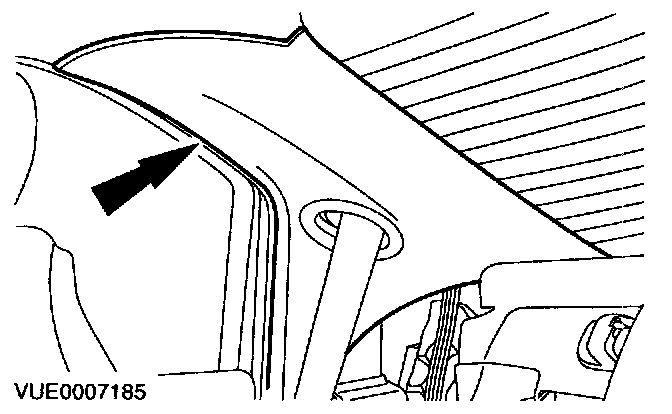

3. Detach the trim panel.

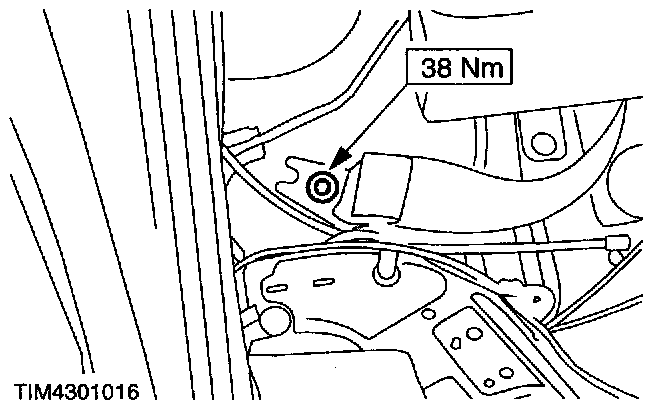

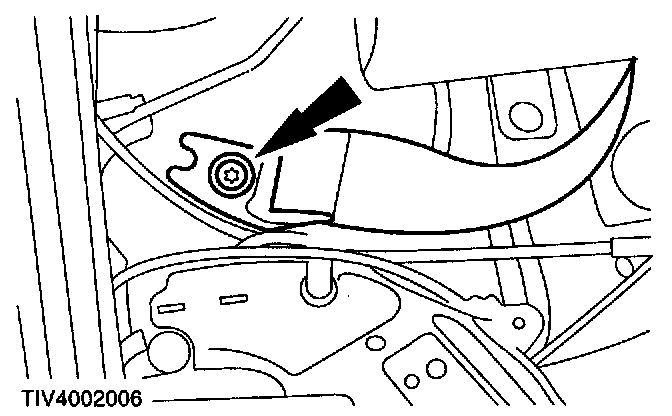

4. Detach the lower rear safety belt retaining plate.

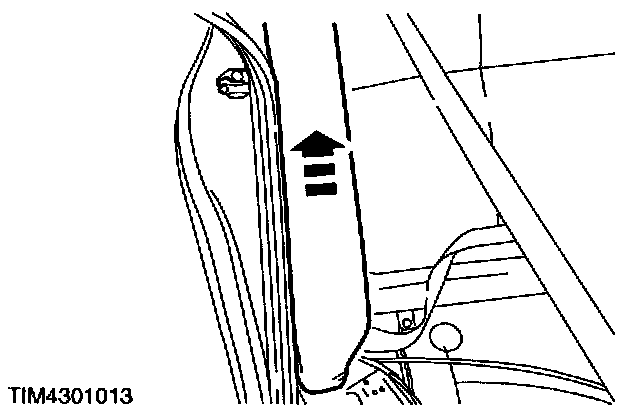

5. Remove the trim panel.

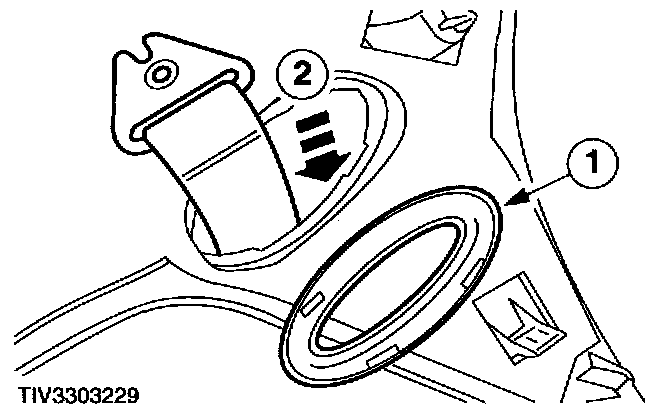

1 Remove the trim bezel.
2 Pass the safety belt through the trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
