B-Pillar Trim Panel

REMOVAL

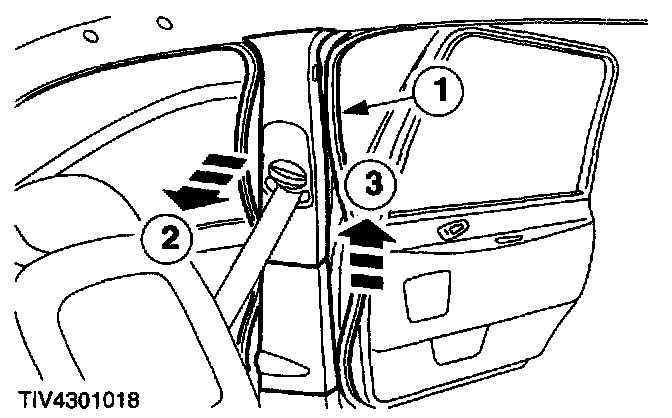

1. Unclip the upper trim panel.
1 Detach the door weatherseals.
2 Pull the trim panel outwards.
3 Pull the trim panel upwards.

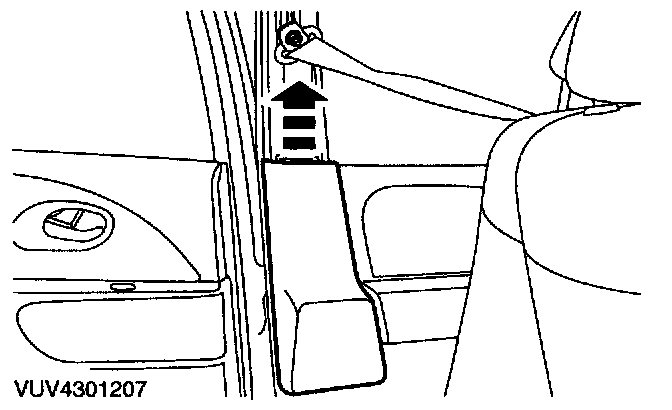

2. Remove the upper trim panel.
- Separate the lower half from the upper half.







3. Detach the front safety belt.







4. Remove the upper trim panel.

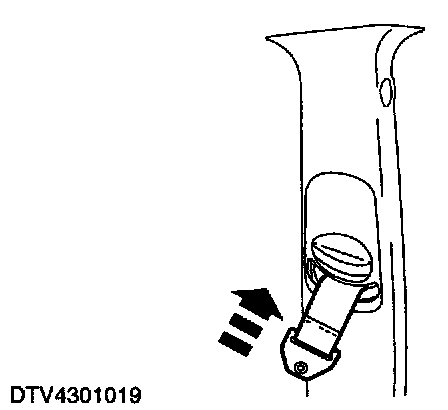

- Pass the safety belt through the upper trim panel.

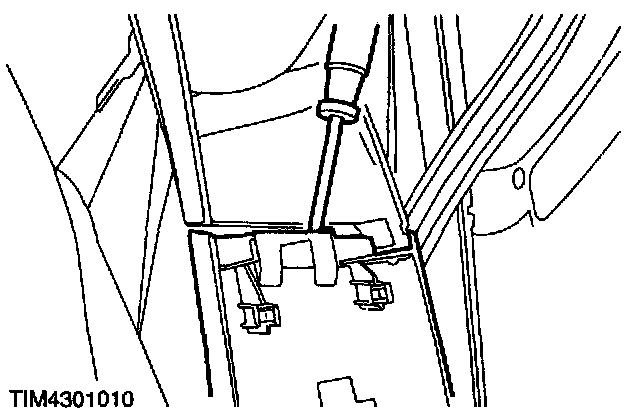

5. Remove the lower trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
