Removal and Replacement

HEADLINER

Removal

All Vehicles
1. Remove the A, B, and C-pillar trim panels.
2. Remove the interior lamps.

Vehicles with overhead console

3. Remove the overhead console.

All Vehicles

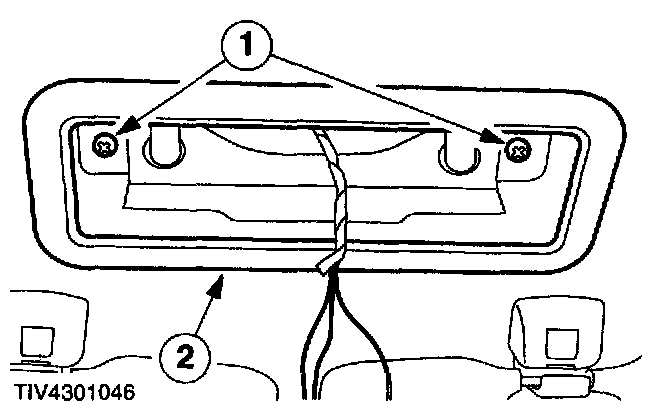

4. Remove the interior lamp housing.
1 Remove the screws.
2 Remove the housing.

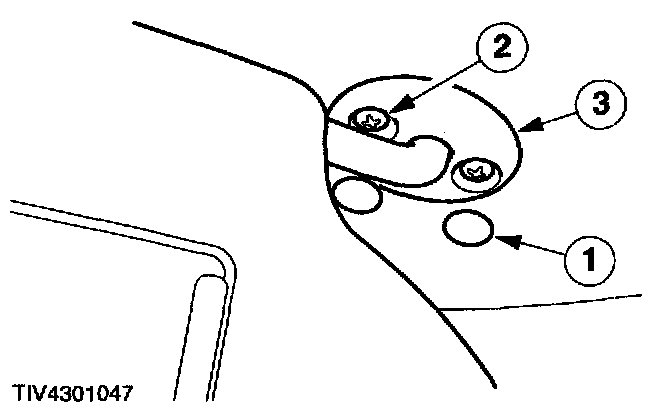

5. Remove the sun visors.
1 Remove the screw covers.
2 Remove the screws.
3 Remove the visor.

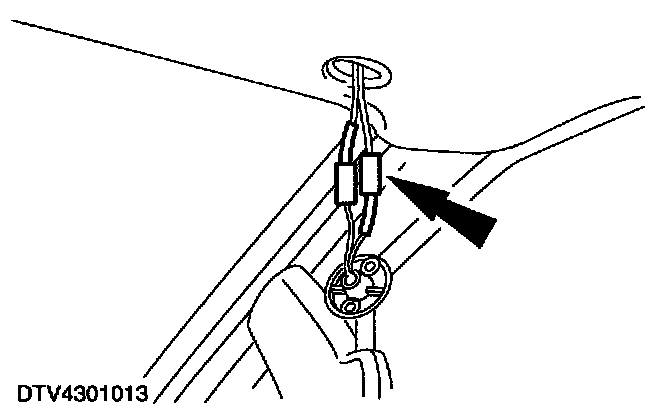

6. Disconnect the electrical connectors.

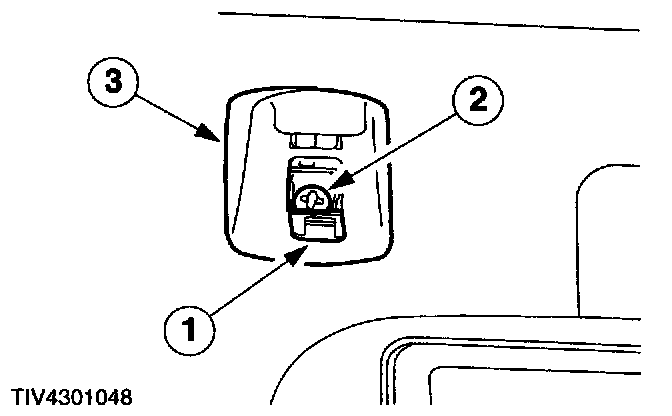

7. Remove the sun visor inner brackets.
1 Lever the screw cover open.
2 Remove the screw.
3 Remove the inner bracket.







8. Remove the passenger assist handles.
1 Lever the screw covers open.
2 Remove the screws.
3 Remove the handle.

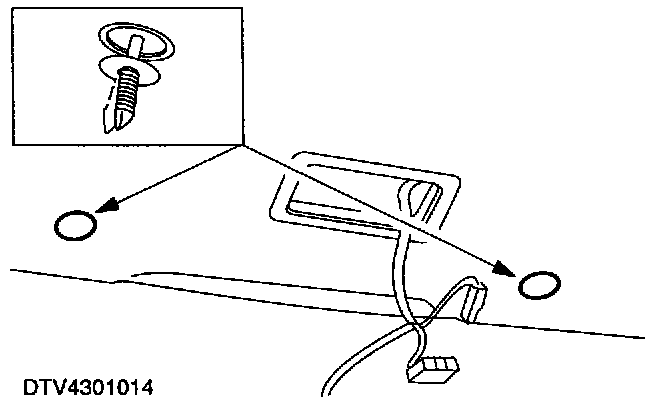

9. Remove the rear retaining clips.
- Lever the center pin up, then remove the clip.

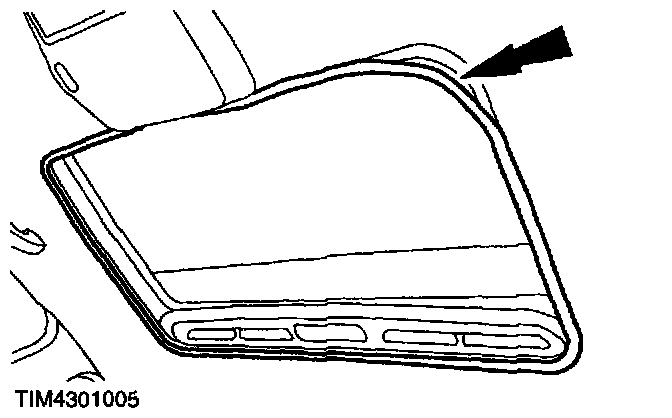

10. Remove the sunroof edge strip.

11. NOTE: Recline the front seats and remove the headliner through the rear door opening.

Remove the headliner.

Installation
1. To install, reverse the removal procedure.
