Overhead Console

REMOVAL
1. Disconnect the battery ground cable.

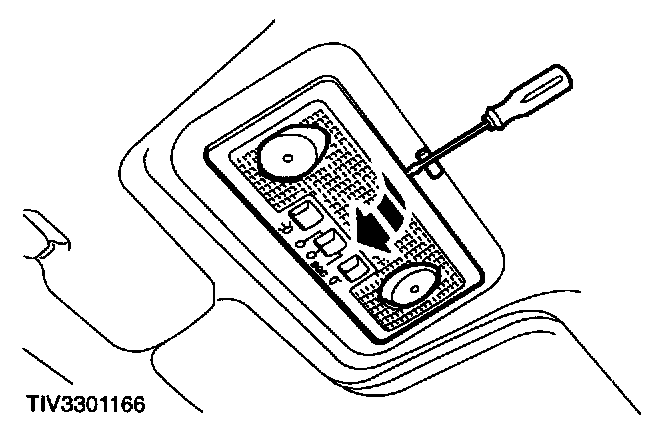

2. Detach the interior lamp.

NOTE: Remove the lamp assembly as a unit.

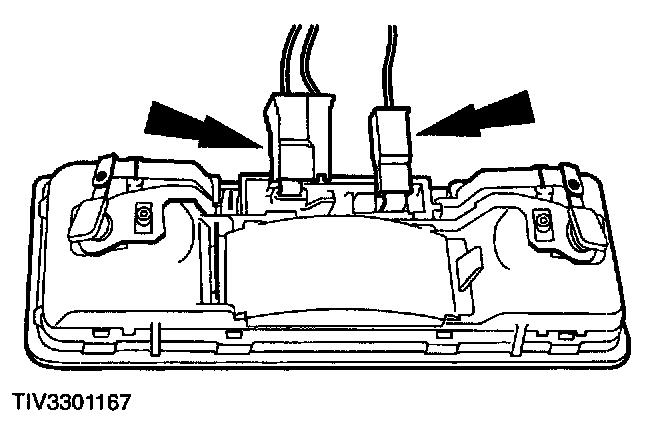

3. Disconnect the interior lamp electrical connectors.

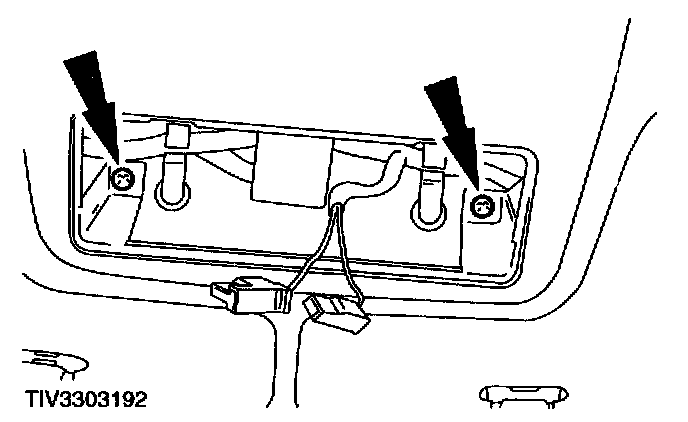

4. Remove the overhead console screws.







5. Remove the overhead console.

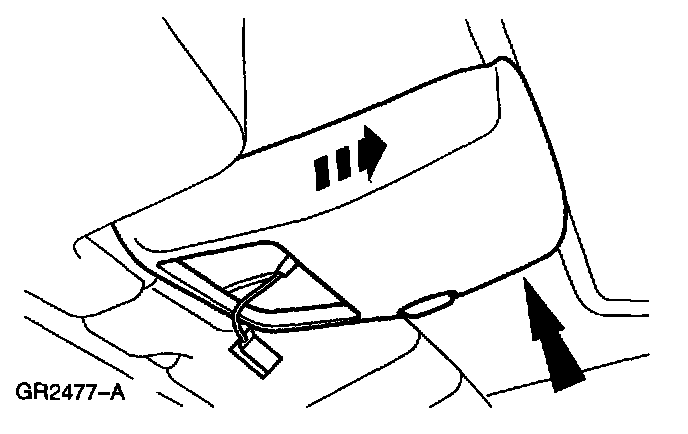

- Slide the console back to disengage it from the clips.
- Disconnect the roof opening panel switch (if equipped).

INSTALLATION
1. To install, reverse the removal procedure.
