Front Fender Liner: Service and Repair
FENDER SPLASH SHIELDRemoval
1. Raise the vehicle.

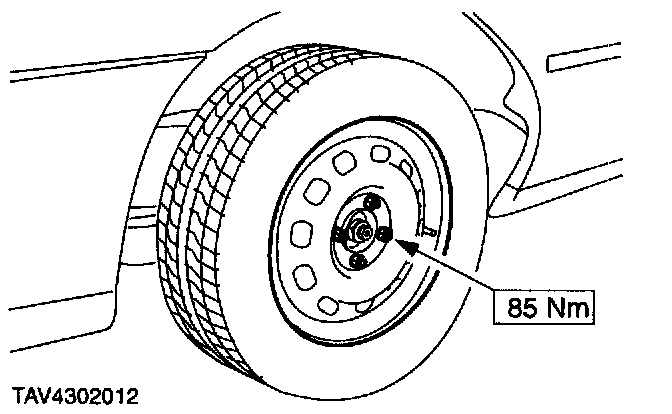

2. Remove wheel.

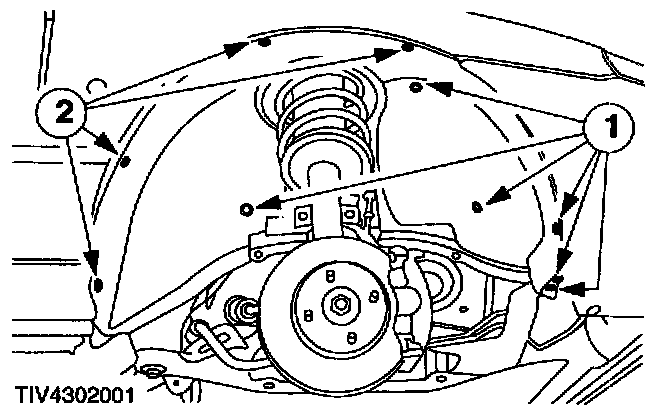

3. Remove front wheel housing cover.
1 Unscrew the bolts.
2 Remove clips.
Installation
1. Install the components in reverse order.
- Lower the vehicle.
