Hood Latch: Service and Repair

REMOVAL
1. Remove the radiator grille.

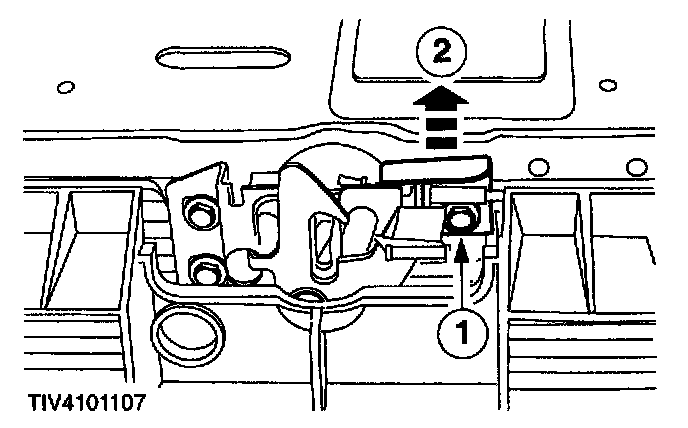

2. Remove the hood latch cover bracket.
1 Loosen the retaining bolt.
2 Remove the hood latch cover bracket.

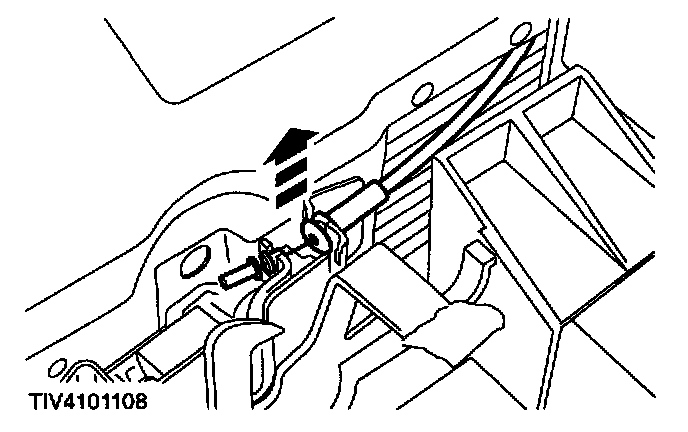

3. Detach the hood latch release cable.

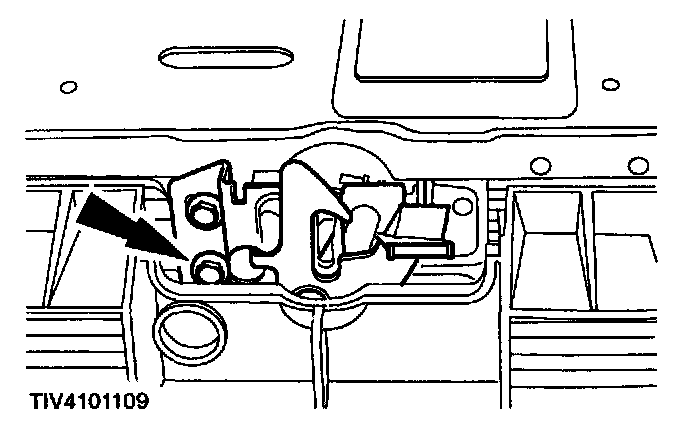

4. Remove the hood latch assembly.

NOTE: Using a suitable marker pen mark the position of the hood latch assembly.

INSTALLATION
1. To install, reverse the removal procedure.
