Hood Latch Release: Service and Repair

REMOVAL
1. Remove the cowl side trim panel.







2. Remove the hood latch release handle screws.







3. Remove the hood latch release handle.

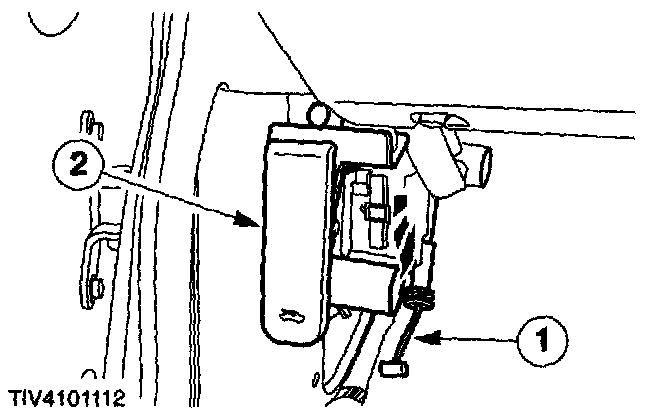

1 Detach the cable.
2 Remove the handle assembly.

INSTALLATION
1. To install, reverse the removal procedure.
