Rear Door Hinge: Adjustments
HINGE ADJUSTMENT - REAR DOORAdjustment
1. Remove the B-pillar trim.

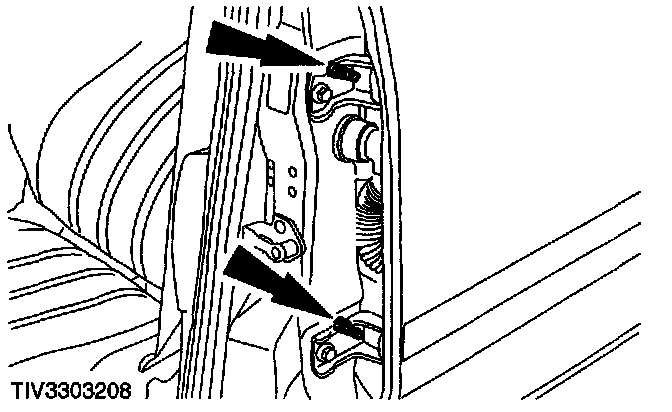

2. Loosen the concealed hinge bolts.
- One on each hinge accessed through the B-pillar.

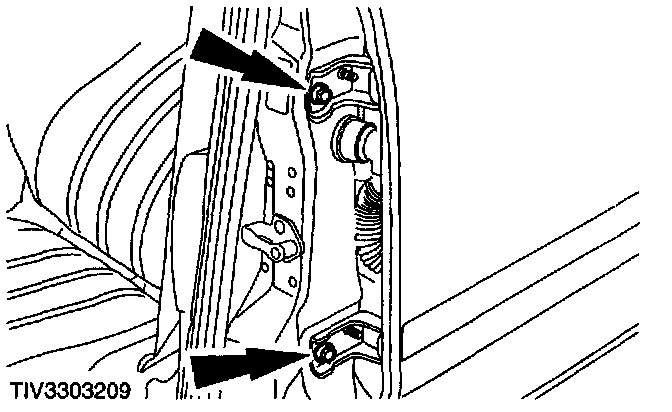

3. Loosen the remaining hinge bolts and adjust the door position.

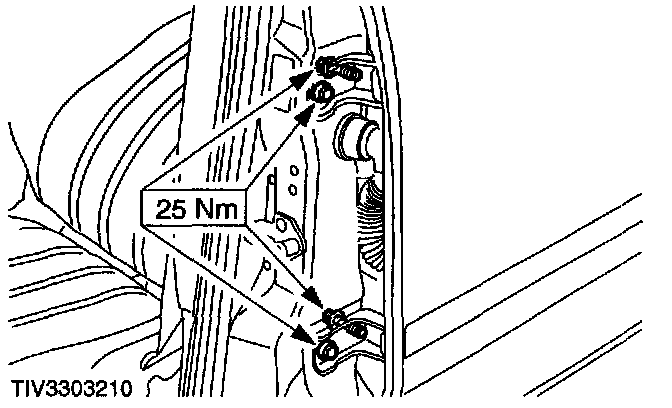

4. Tighten the hinge bolts.
5. Install the B-pillar trim.
