Cowl: Service and Repair

REMOVAL







1. Remove the wiper arms.

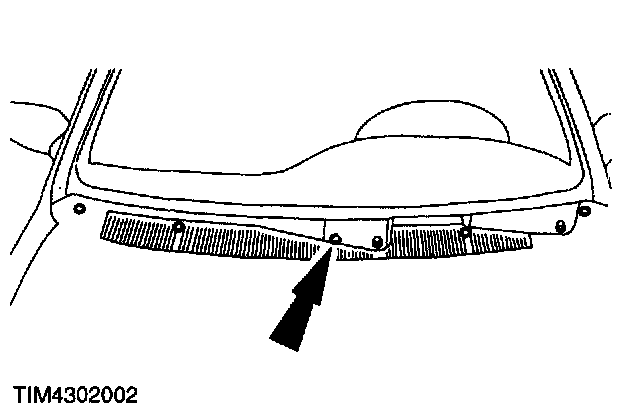

2. Undo the upper bolts.
^ Lever off caps.
3. Open hood.

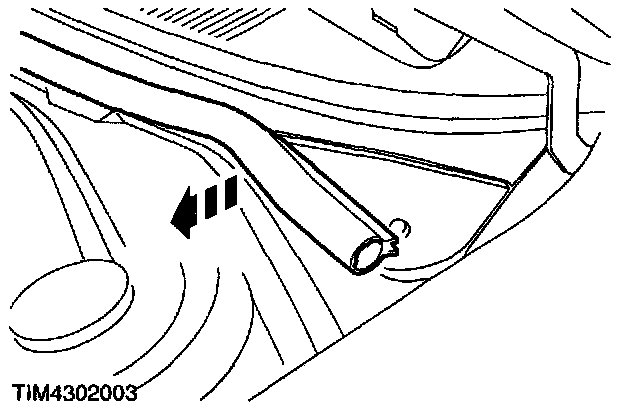

4. Pull off windshield cowl rubber seal.

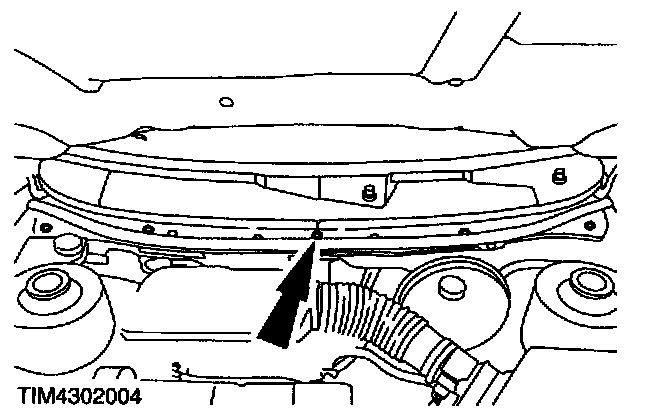

5. Undo the lower bolts.
6. Remove windshield cowl grille (left side first).

INSTALLATION
1. Install the components in reverse order.
