Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Anti-Theft - Perimeter >> Test D: Alarm System Does Not Arm

Test D: Alarm System Does Not Arm

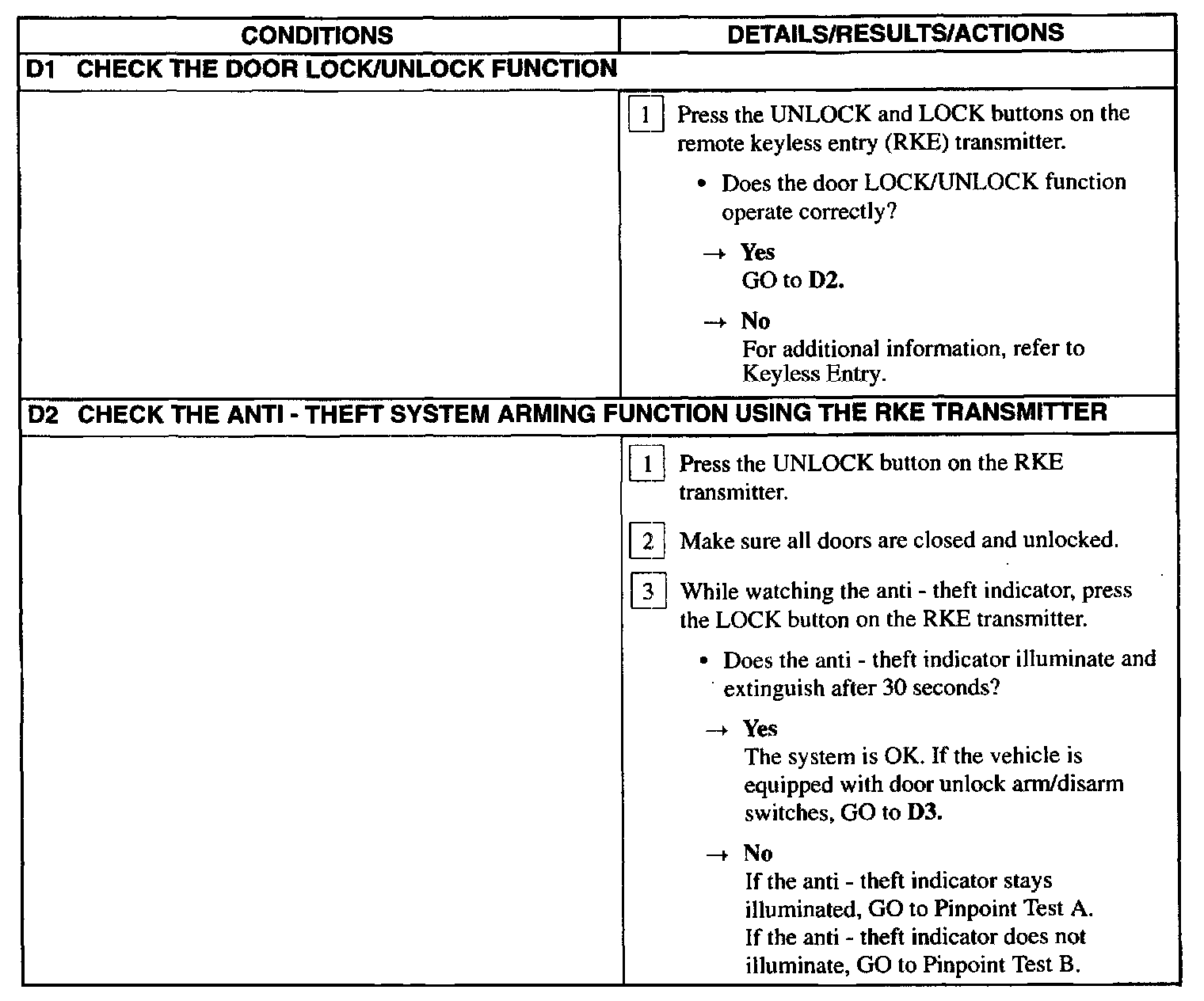

D1 - D2:

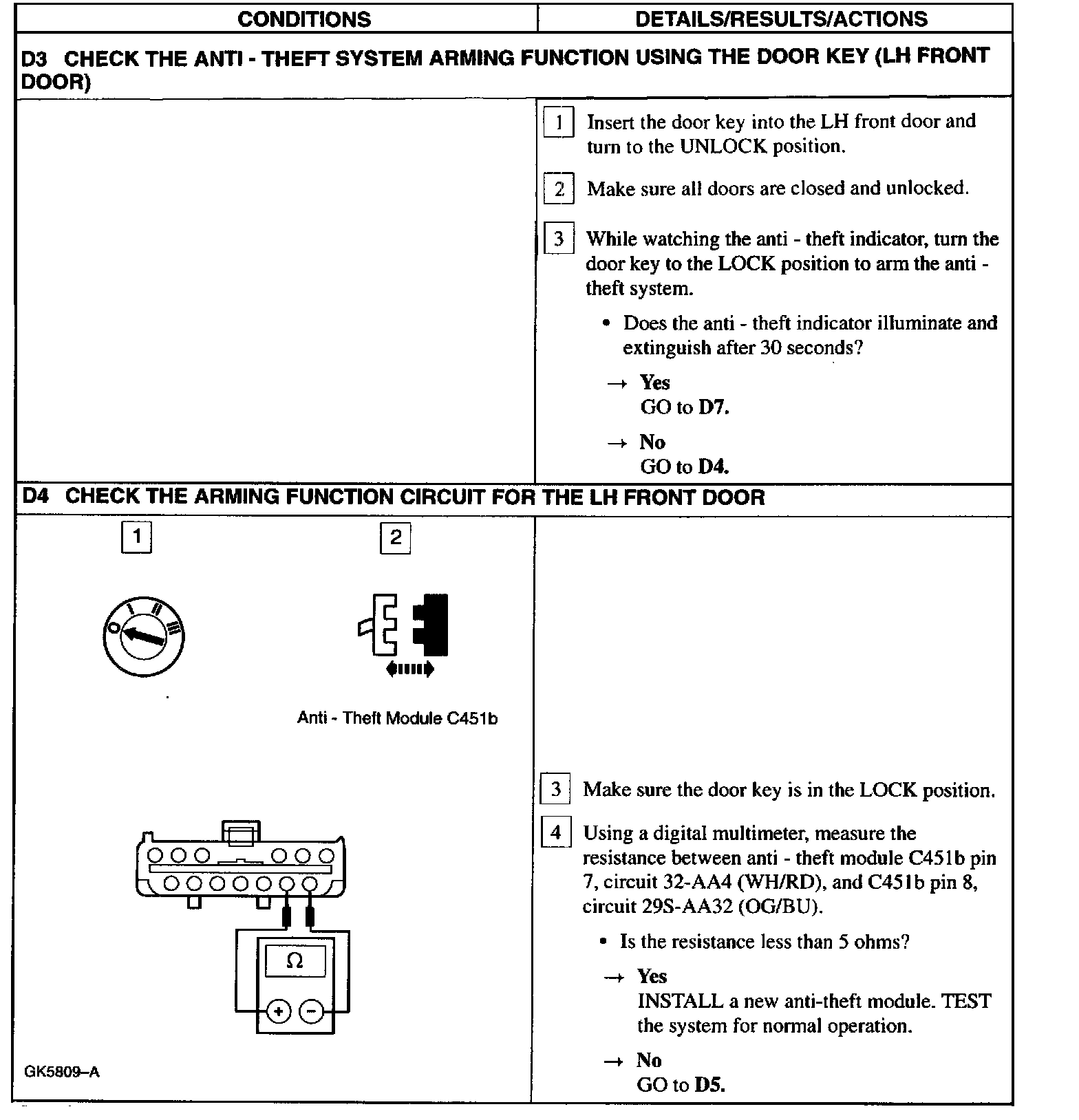

D3 - D4:

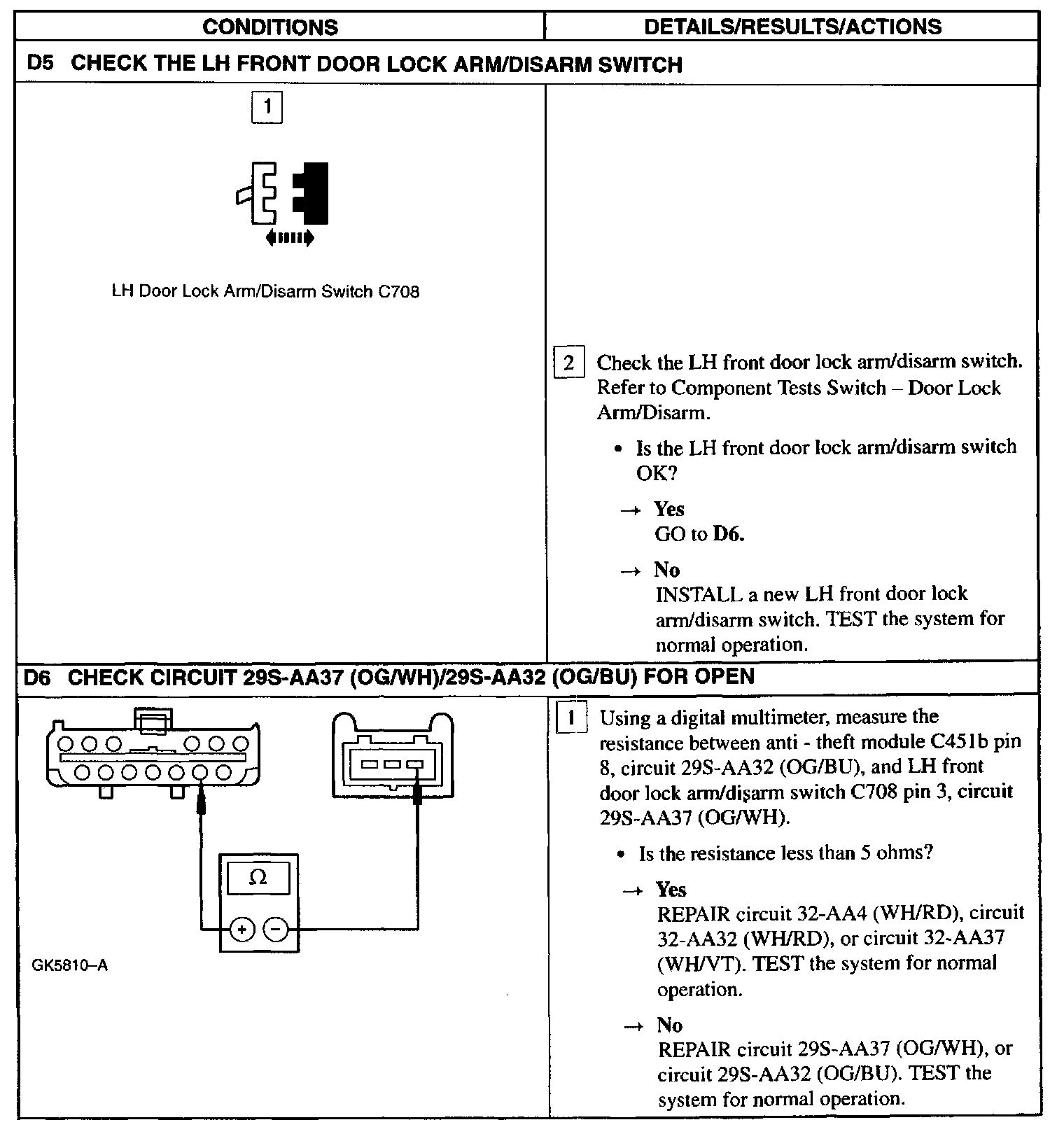

D5 - D6:

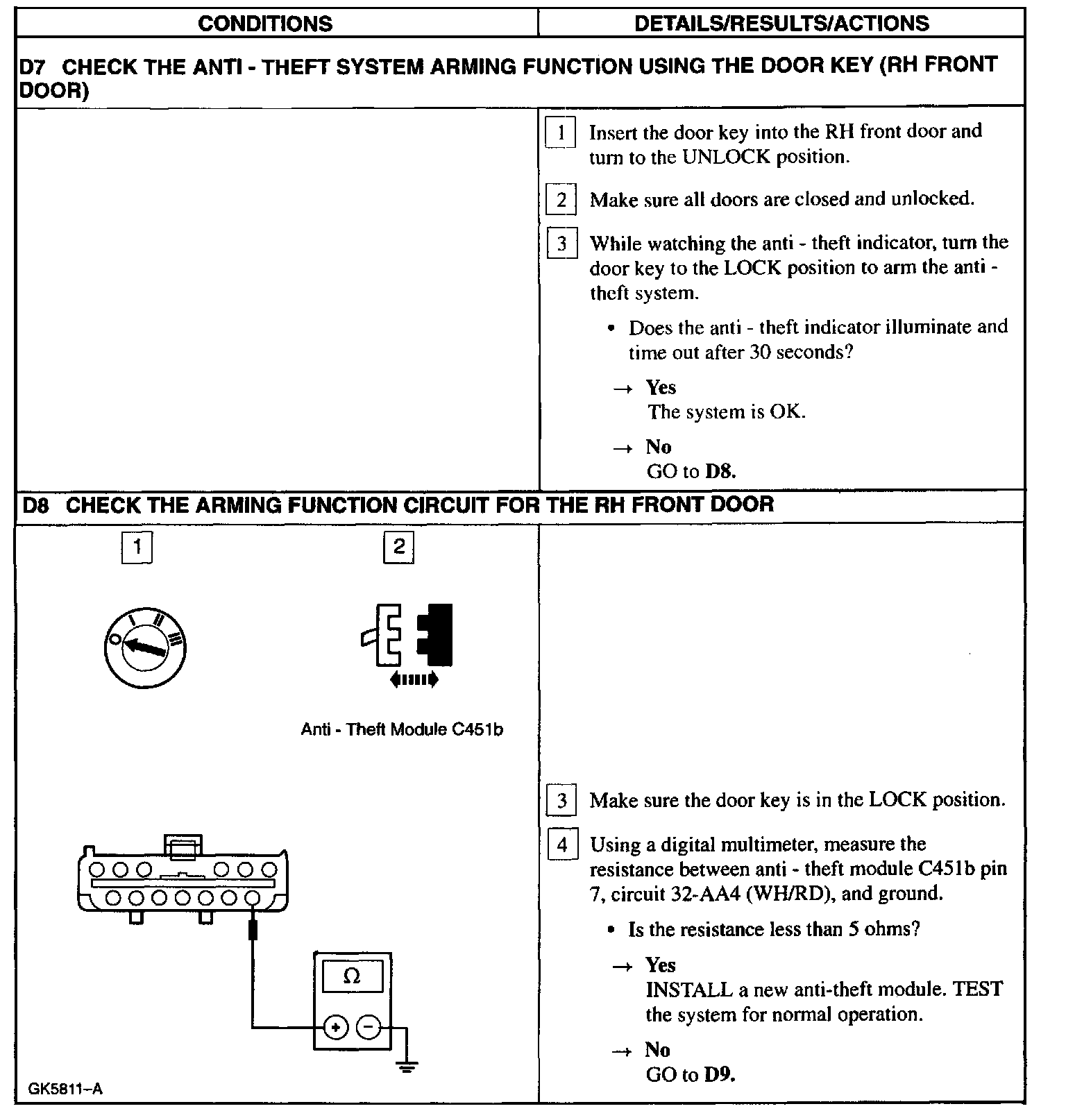

D7 - D8:

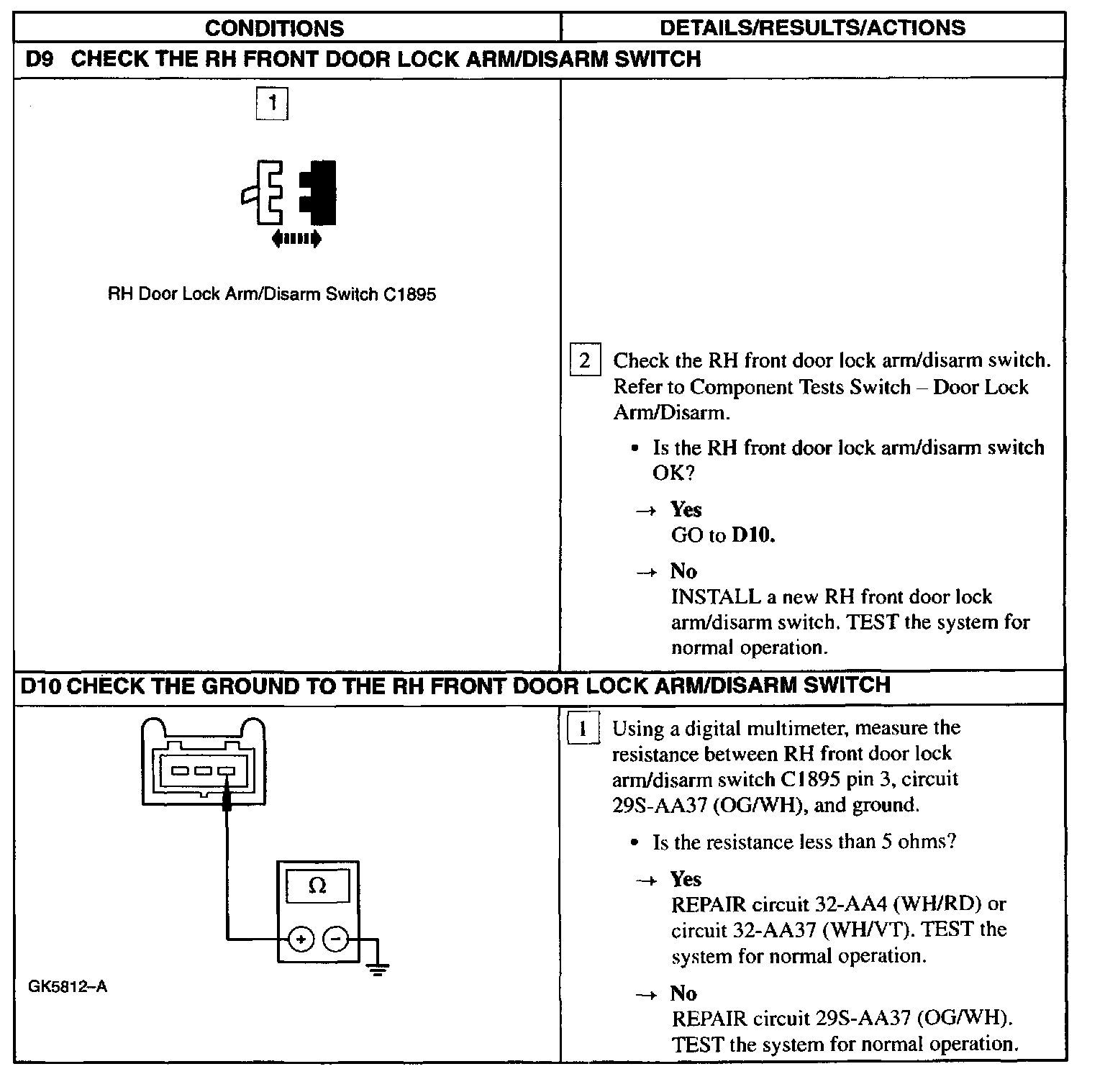

D9 - D10:
