Home >> Mercury >> 2000 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test E: Intermittent Wiper Speed Does Not Operate Properly

Test E: Intermittent Wiper Speed Does Not Operate Properly

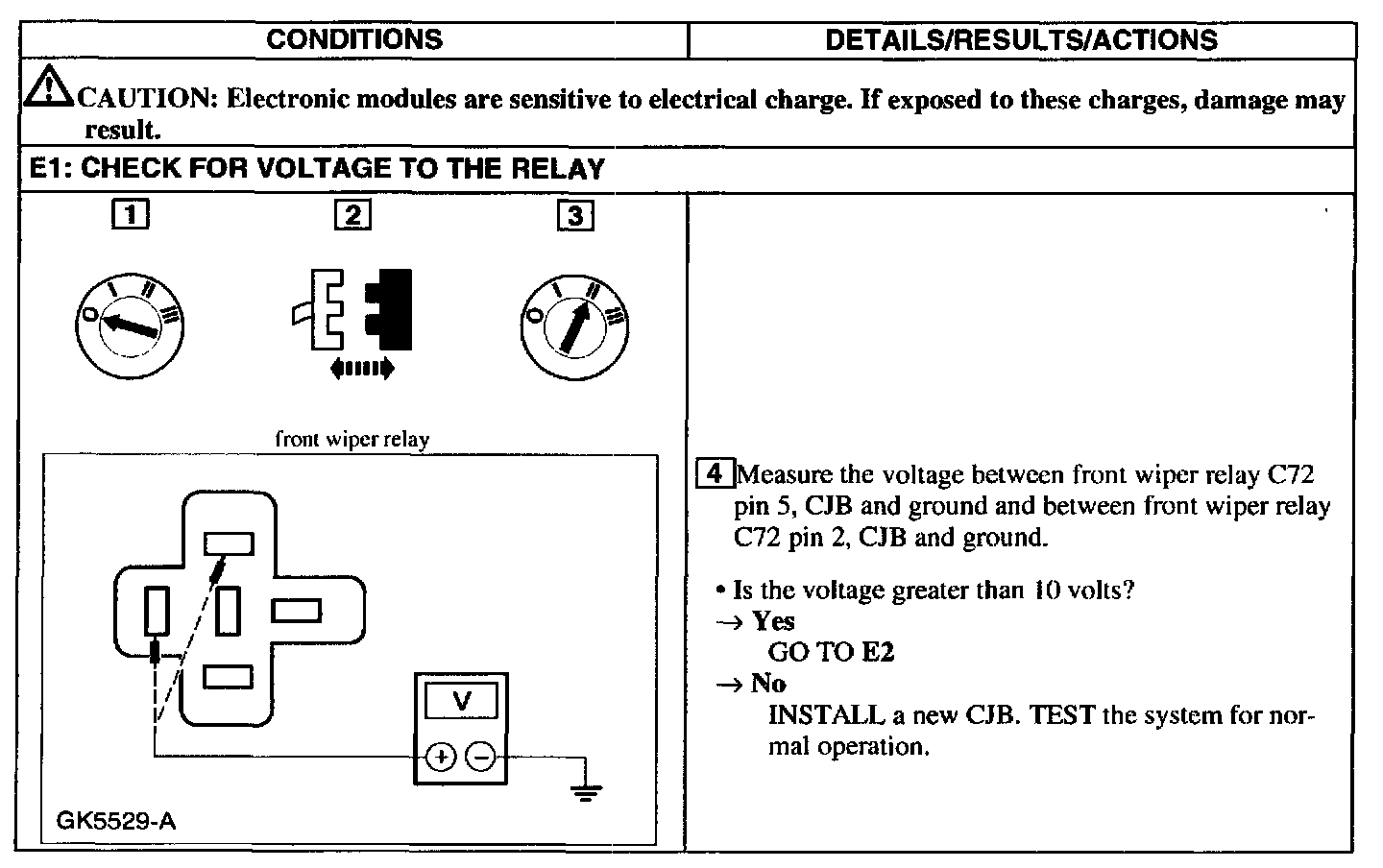

E1:

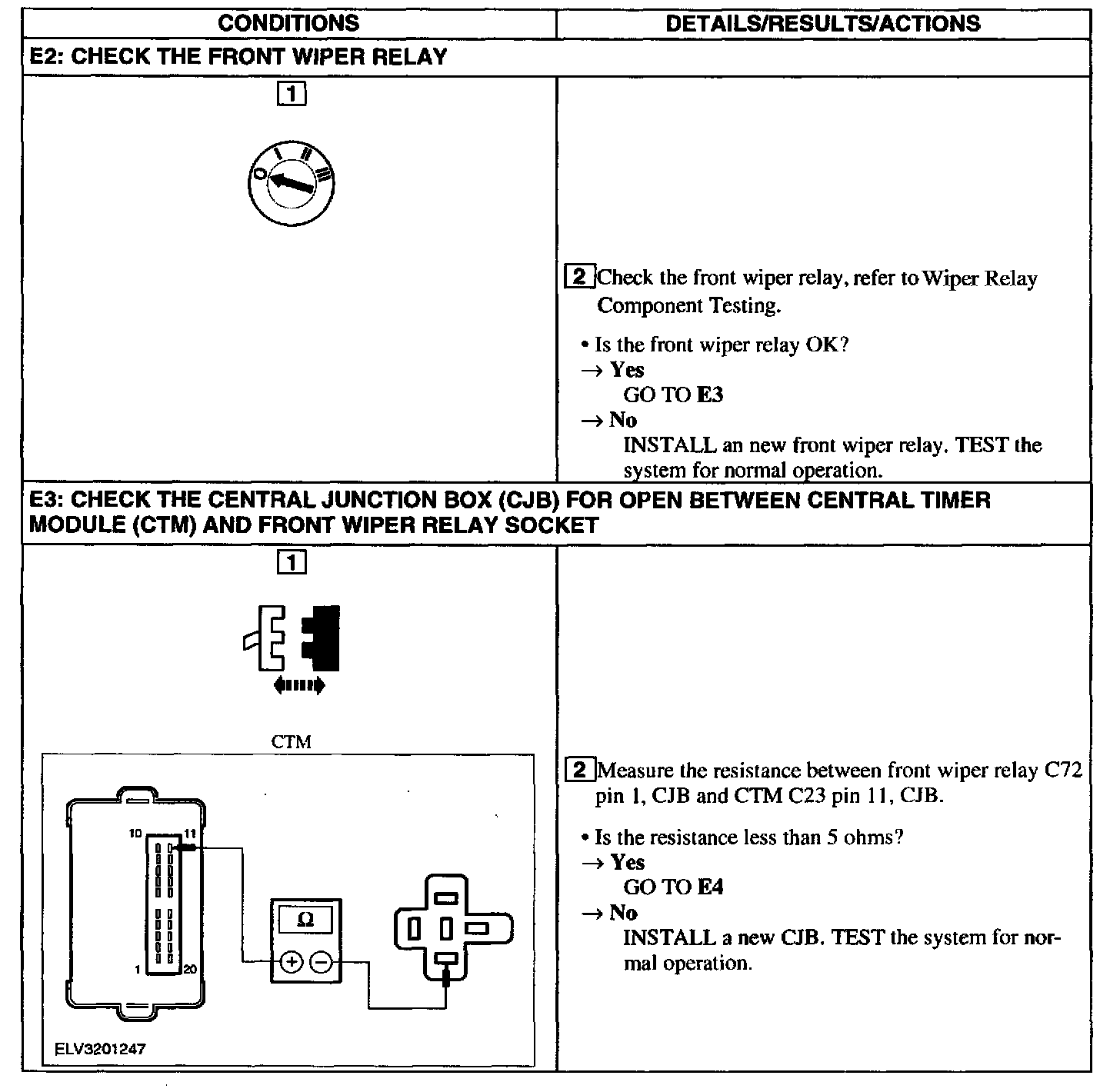

E2 - E3:

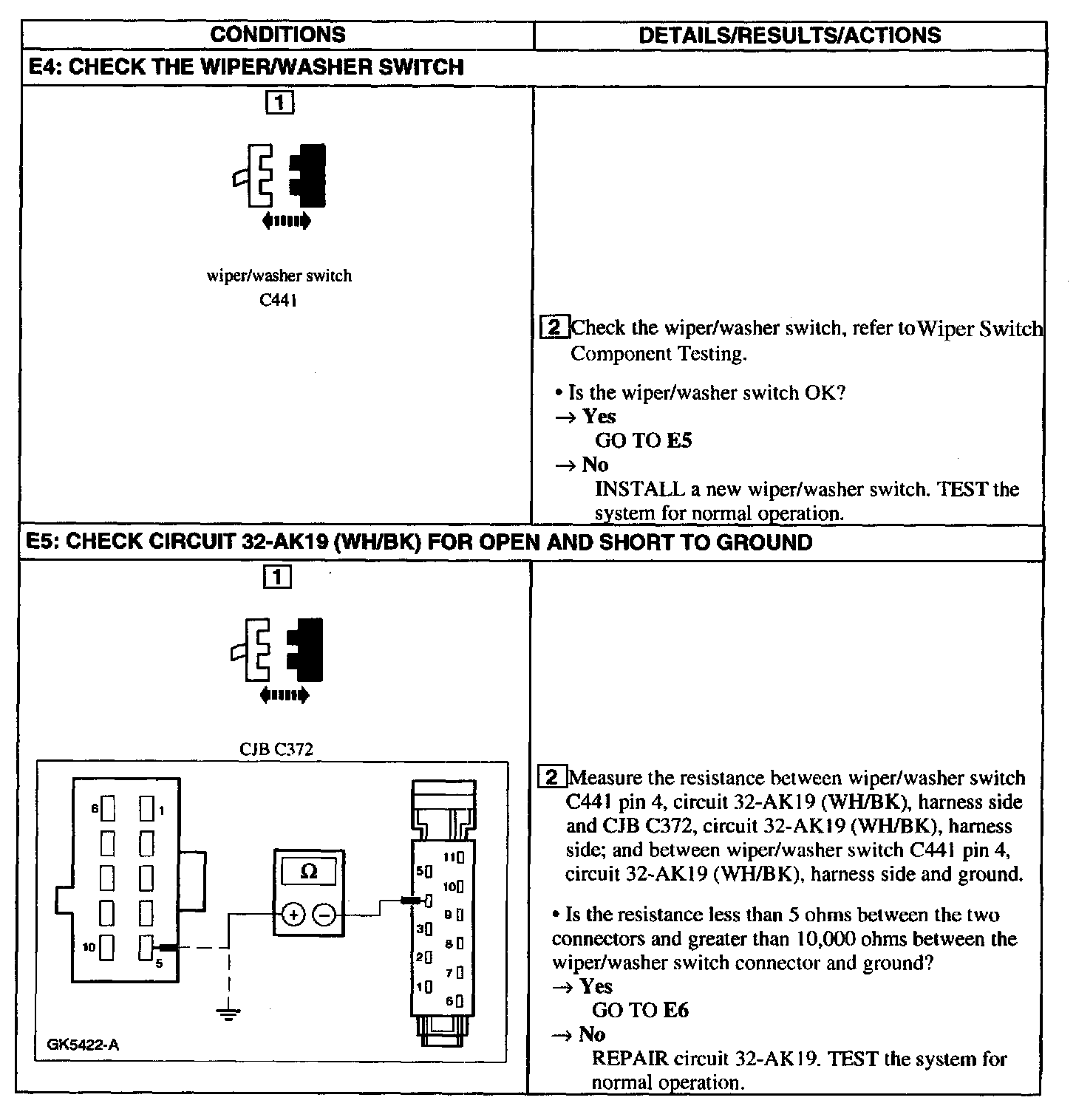

E4 - E5:

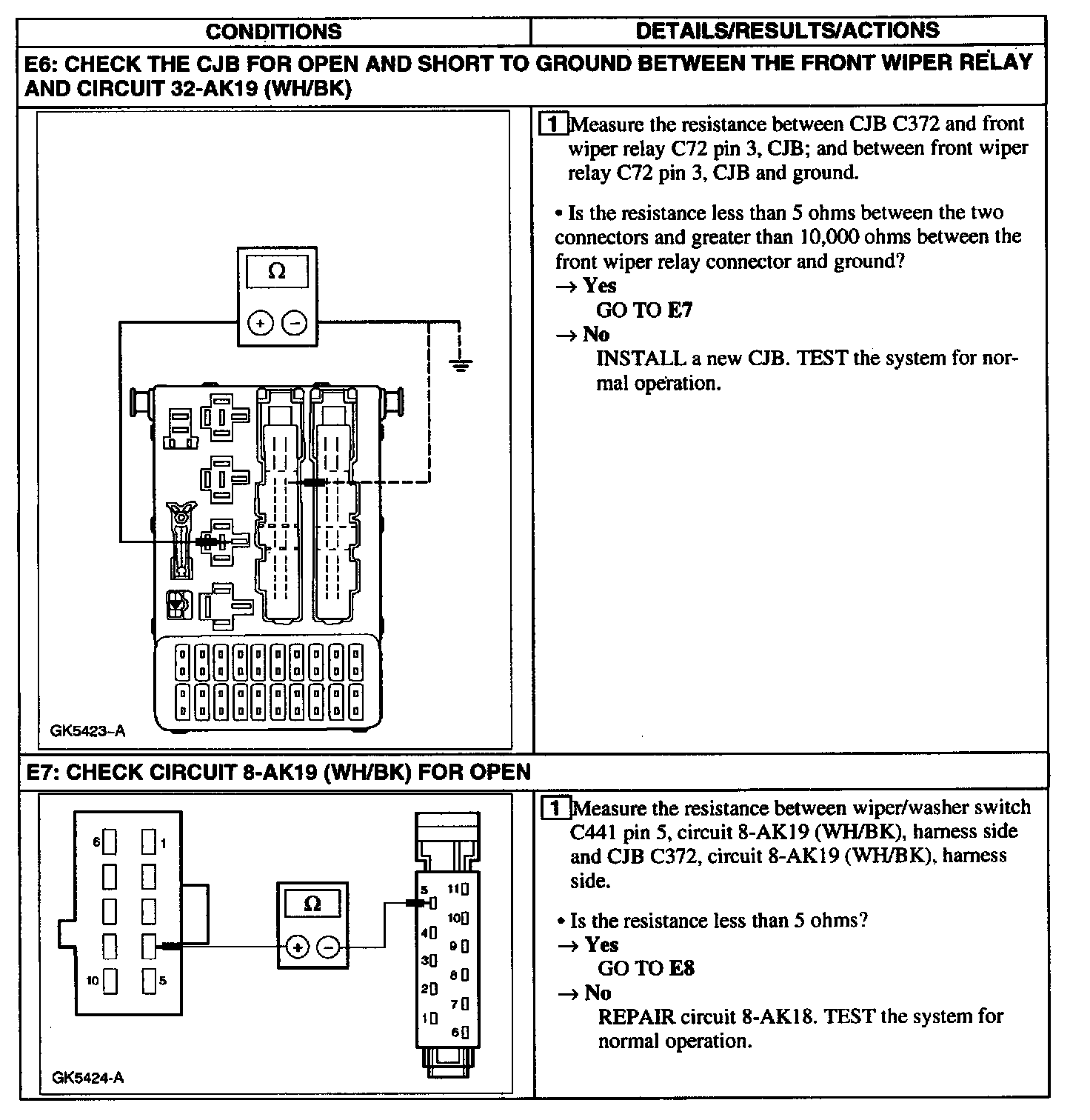

E6 - E7:

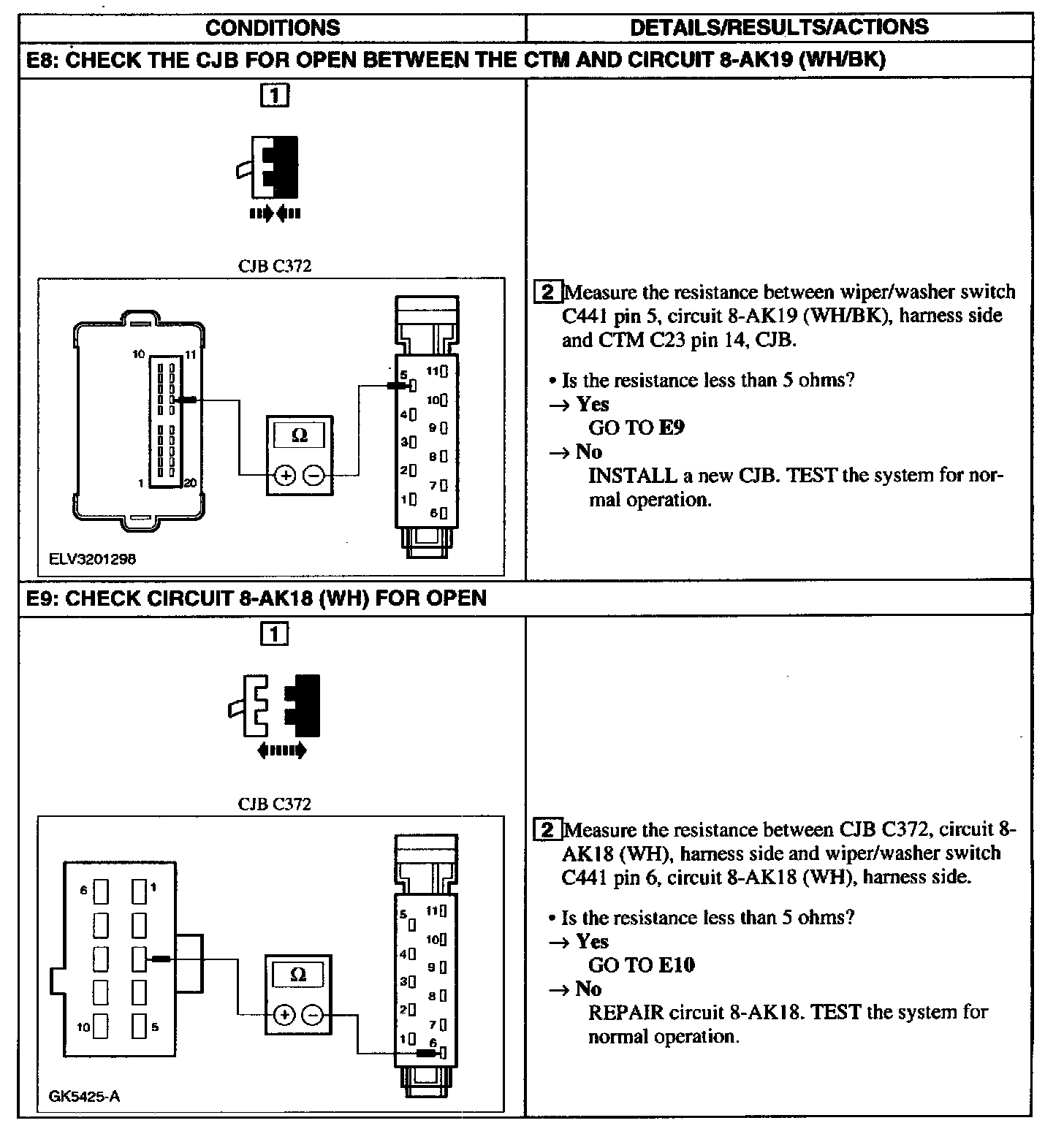

E8 - E9:

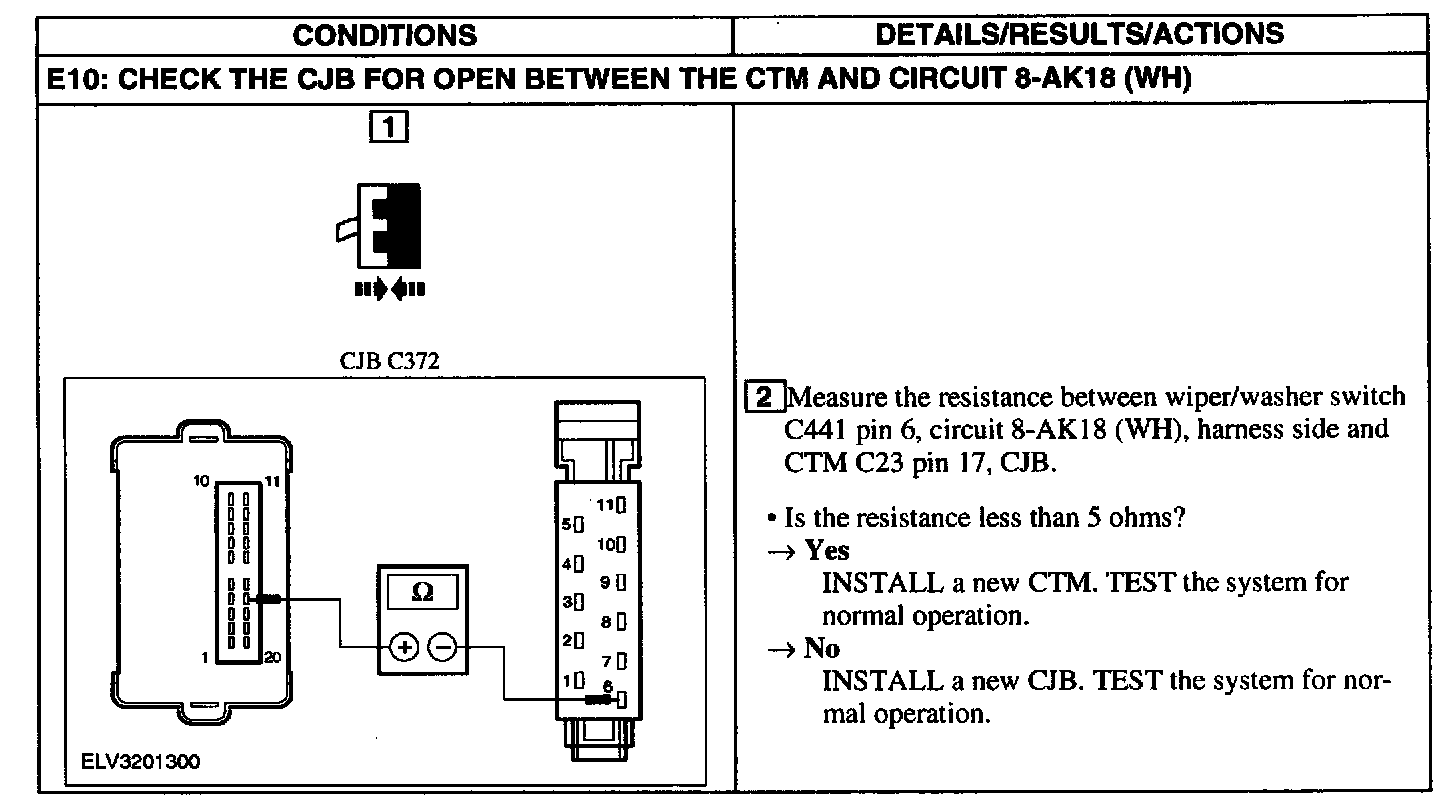

E10:
