Flywheel: Service and Repair

Removal
1. Remove the clutch disc and pressure plate.

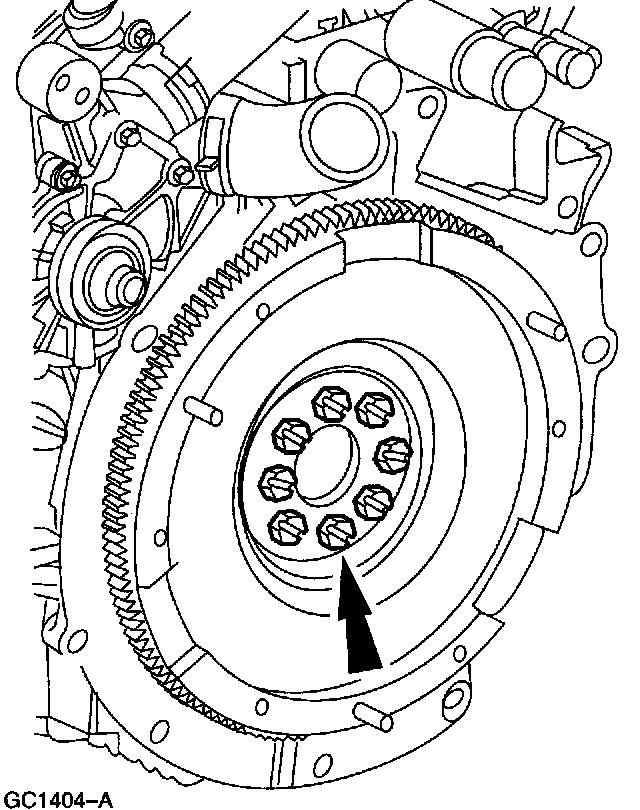

2. Remove the flywheel.

Installation





1. Position the flywheel and loosely install the flywheel bolts.

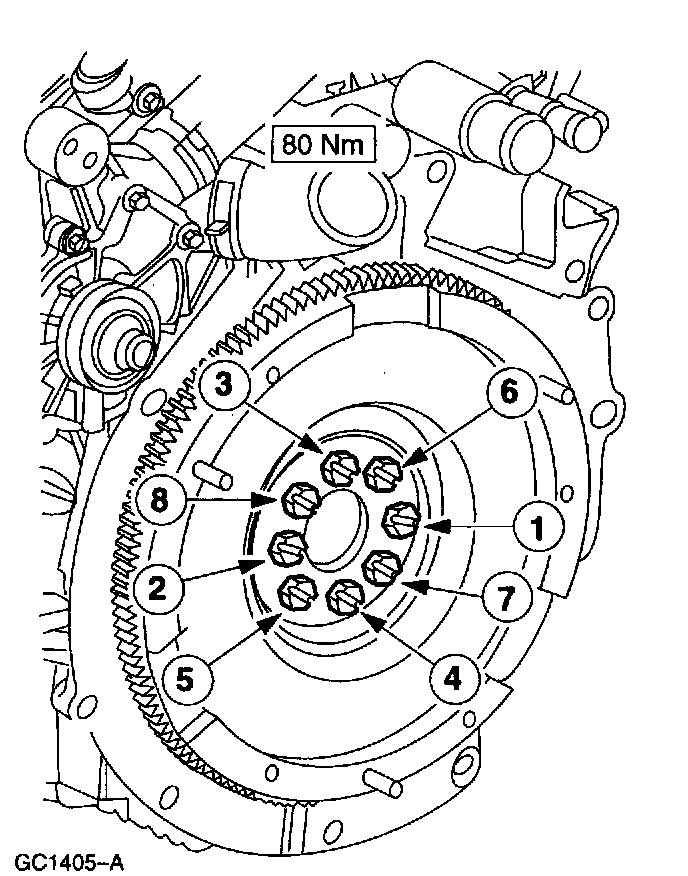

2. Tighten the bolts in the indicated sequence.
3. Install the clutch disc and pressure plate.
