RH Heated Oxygen Sensor

REMOVAL
1. Remove the ignition coil. For additional information, refer to Ignition System.

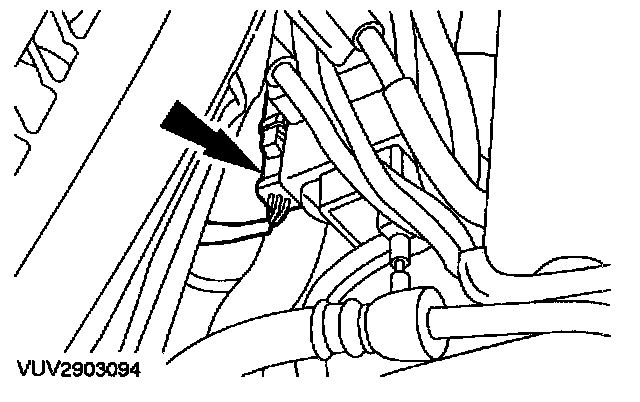

2. Disconnect the right-hand Heated Oxygen Sensor (H02S) electrical connector.

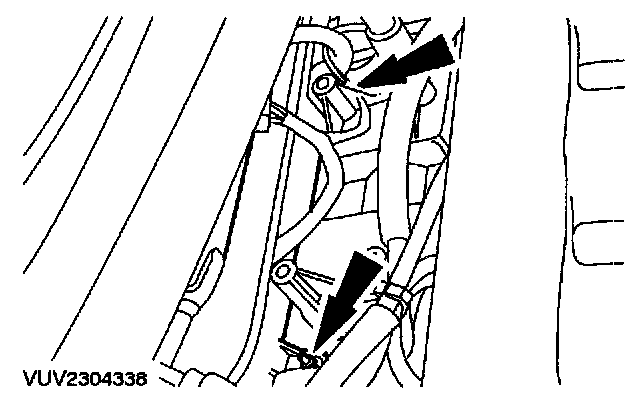

3. Detach the wiring hamess.

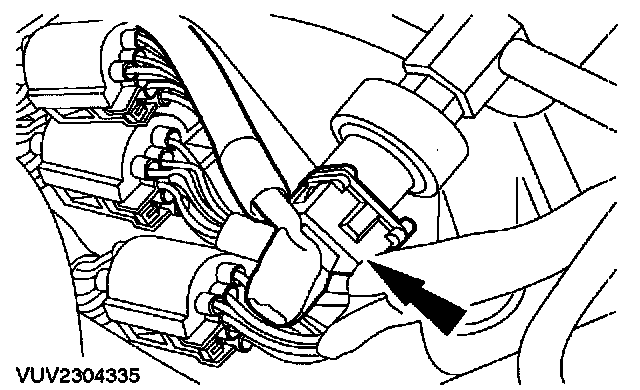

4. Disconnect the power steering pressure switch electrical connector.

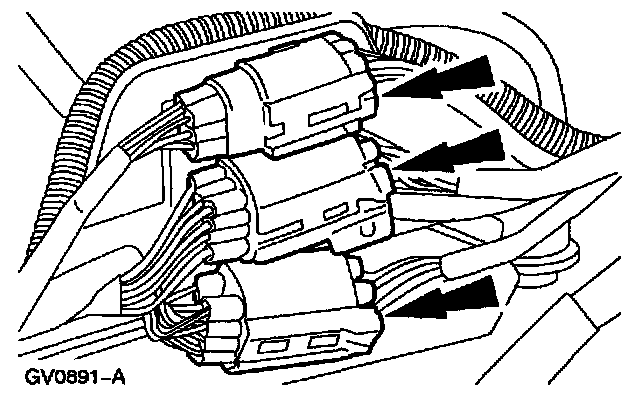

5. Disconnect the fuel injector wiring hamess main in-line electrical connectors.

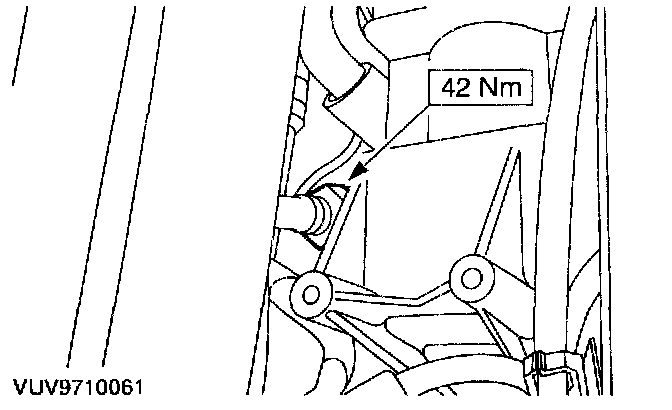

6. Remove the H02S.

INSTALLATION







1. To install, reverse the removal procedure.
