RH Catalyst Monitor Sensor

REMOVAL

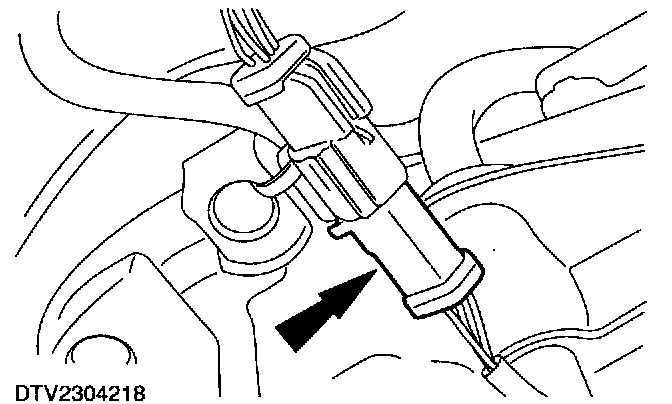

1. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.

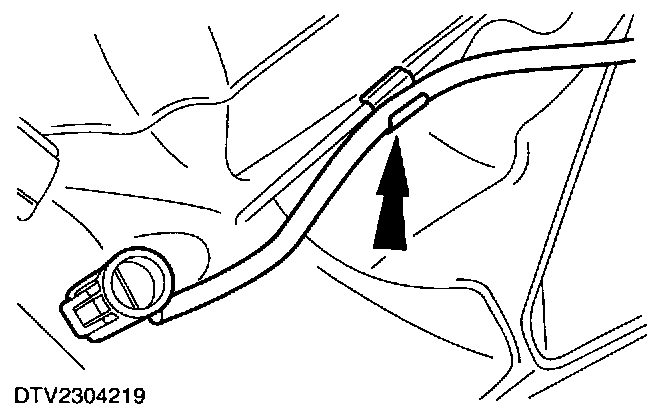

2. Detach the CMS wiring hamess from the retaining clip on the transaxle housing.

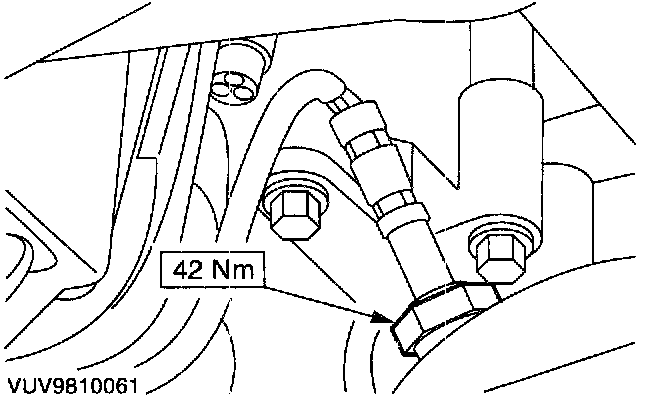

3. Remove the CMS.

INSTALLATION







1. To install, reverse the removal procedure.
