LH Heated Oxygen Sensor

REMOVAL

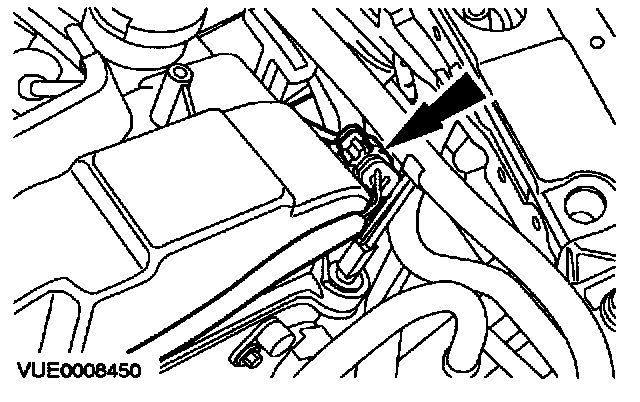

1. Disconnect the Heated Oxygen Sensor (H02S) electrical connector.
2. Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair

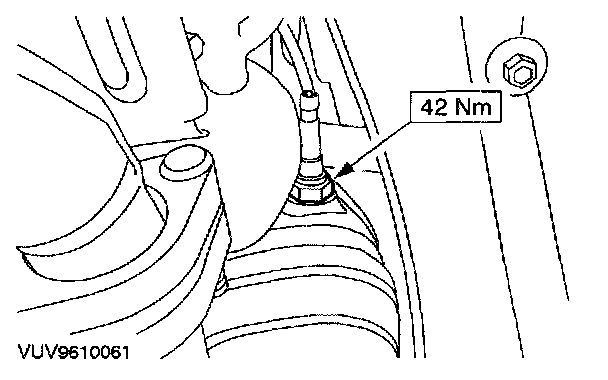

3. Remove the H02S.

INSTALLATION







1. To install, reverse the removal procedure.
