LH Catalyst Monitor Sensor

REMOVAL

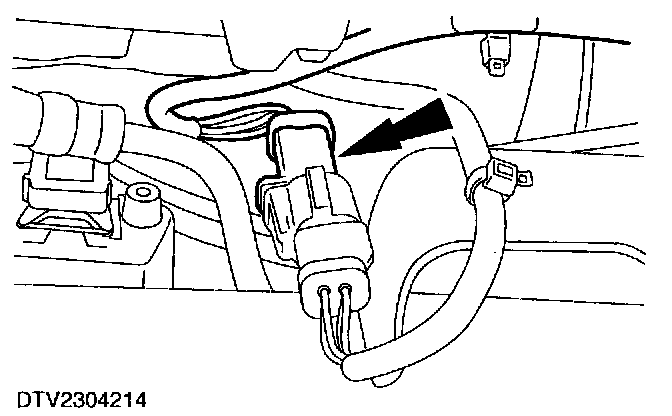

1. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.

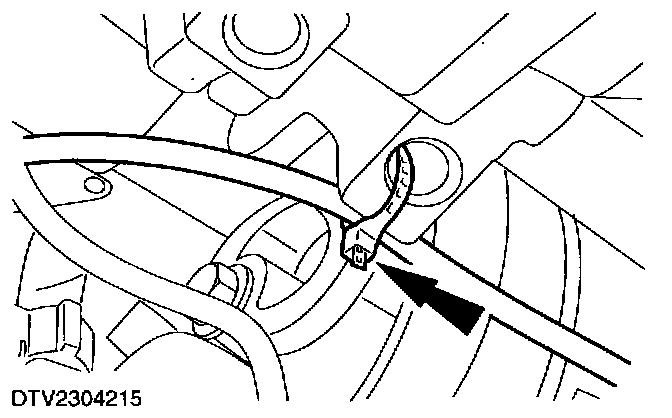

2. Detach the CMS wiring hamess from the engine block.
^ Cut the cable tie.

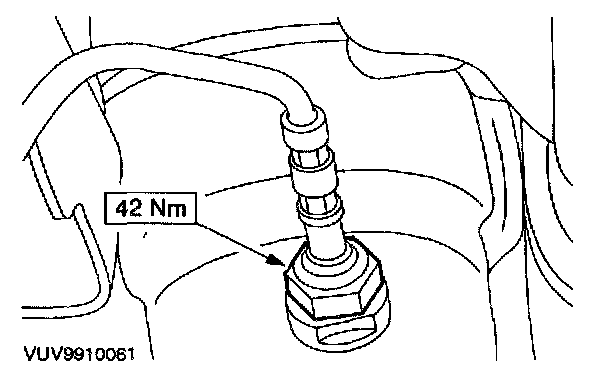

3. Remove the CMS.

INSTALLATION







1. To install, reverse the removal procedure.
^ Install a new cable tie.
