Test M: An Indicator Is Always ON - Bulb Out Warning Indicator
Test M: An Indicator Is Always ON - Bulb Out Warning Indicator
M1 - M3:

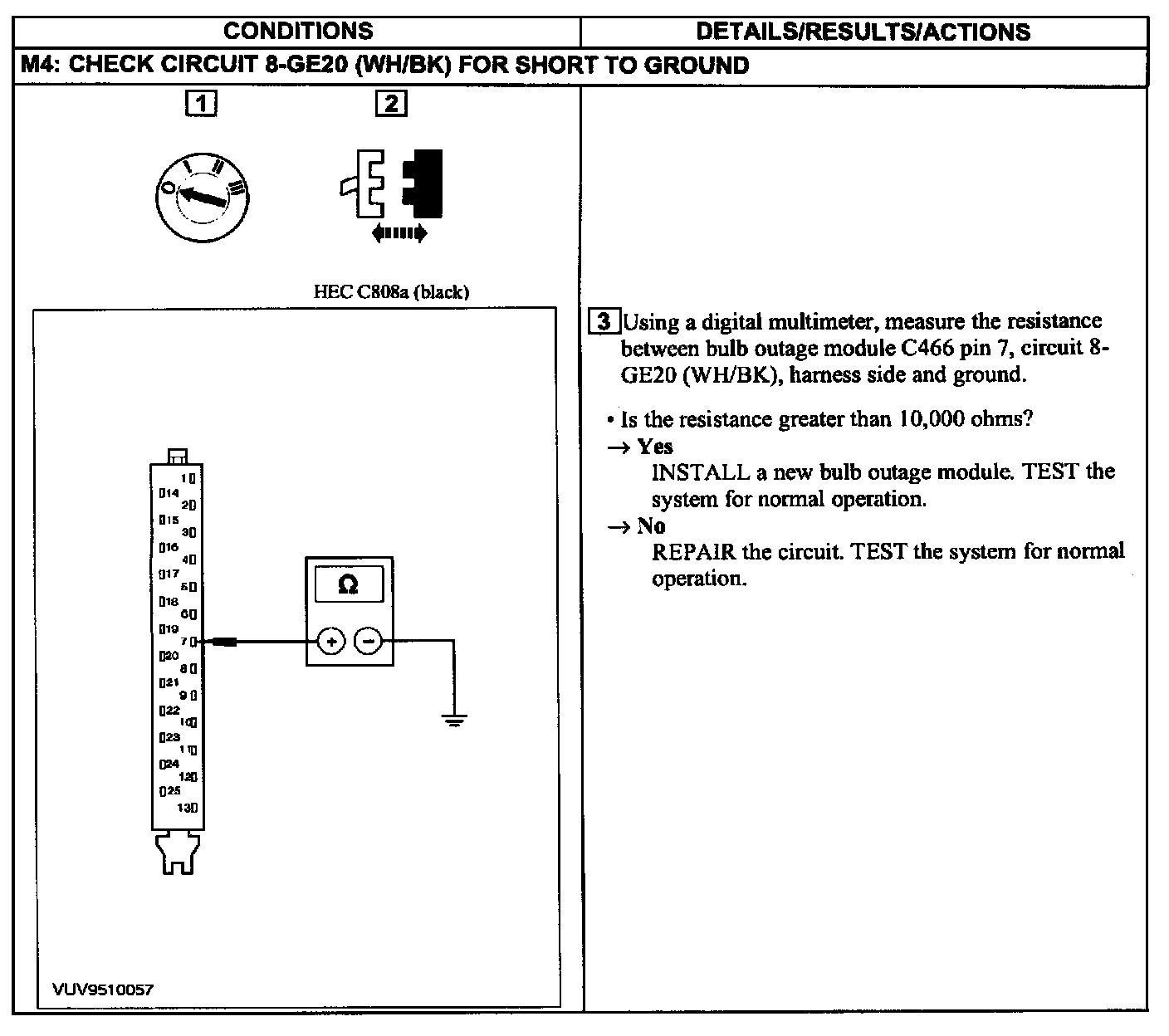

M4:
