Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test I: An Indicator Is Inoperative/Always on - Frost Warning Indicator
Test I: An Indicator Is Inoperative/Always on - Frost Warning Indicator

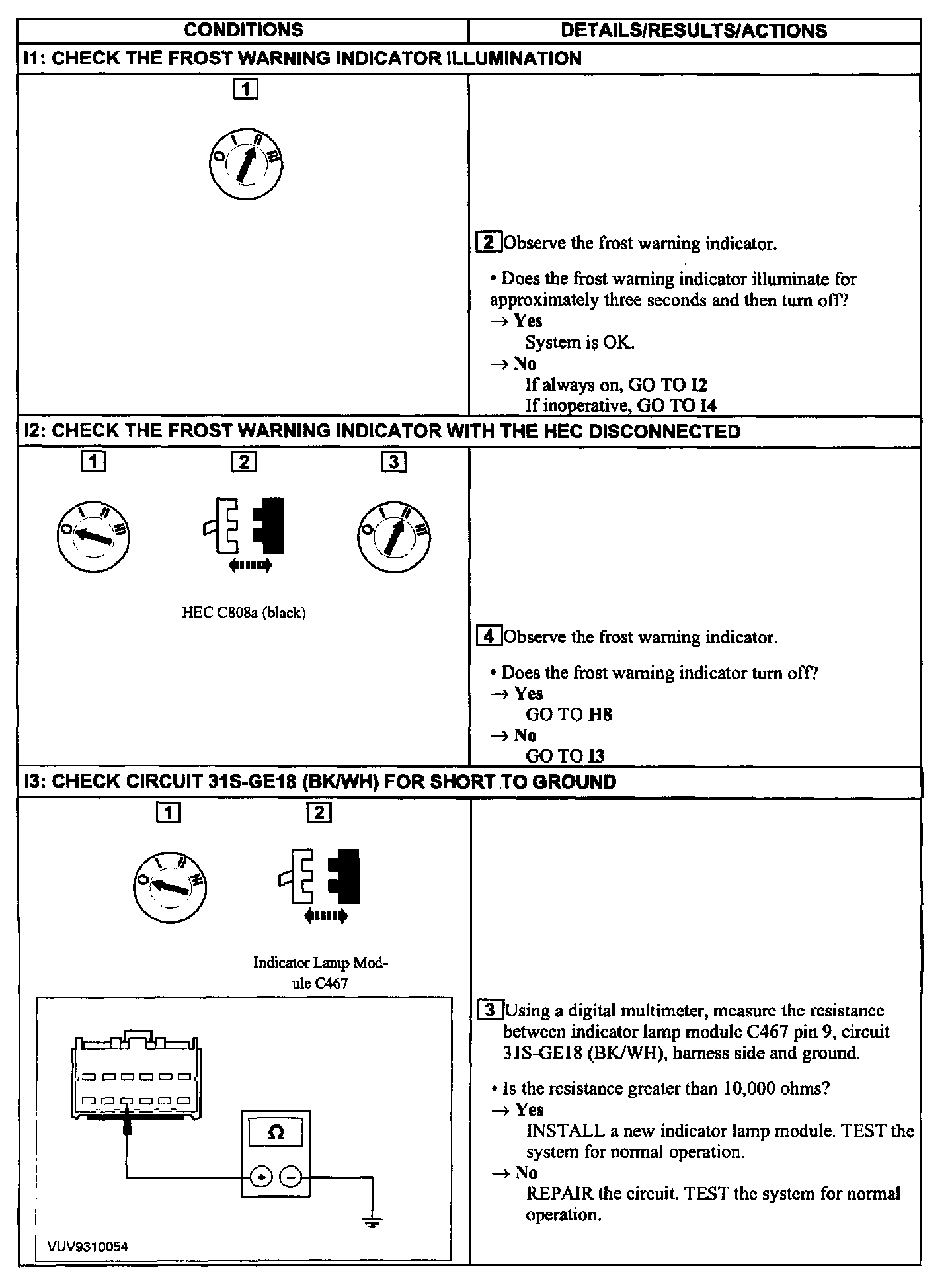

I1 - I3:

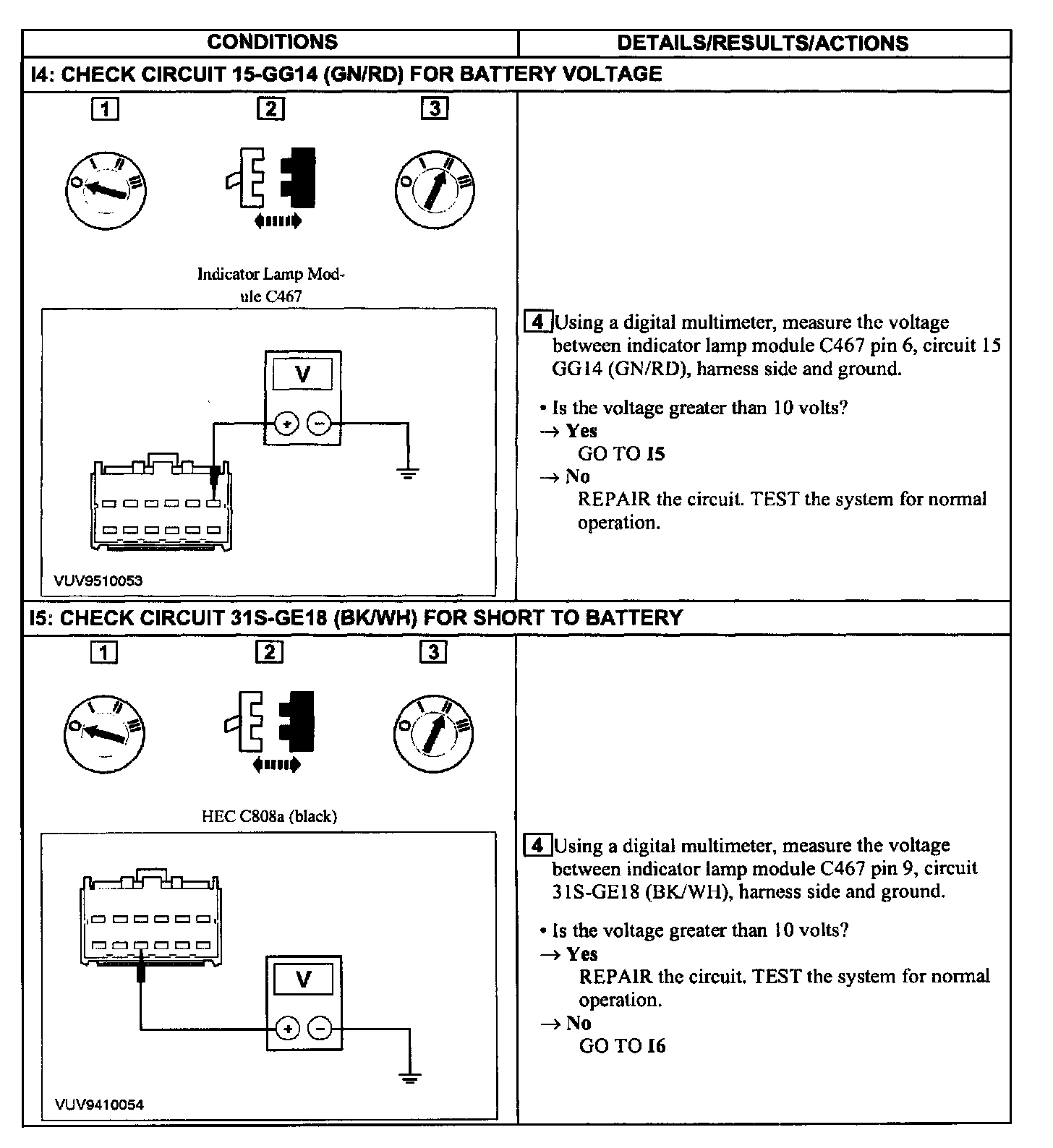

I4 - I5:
I6:

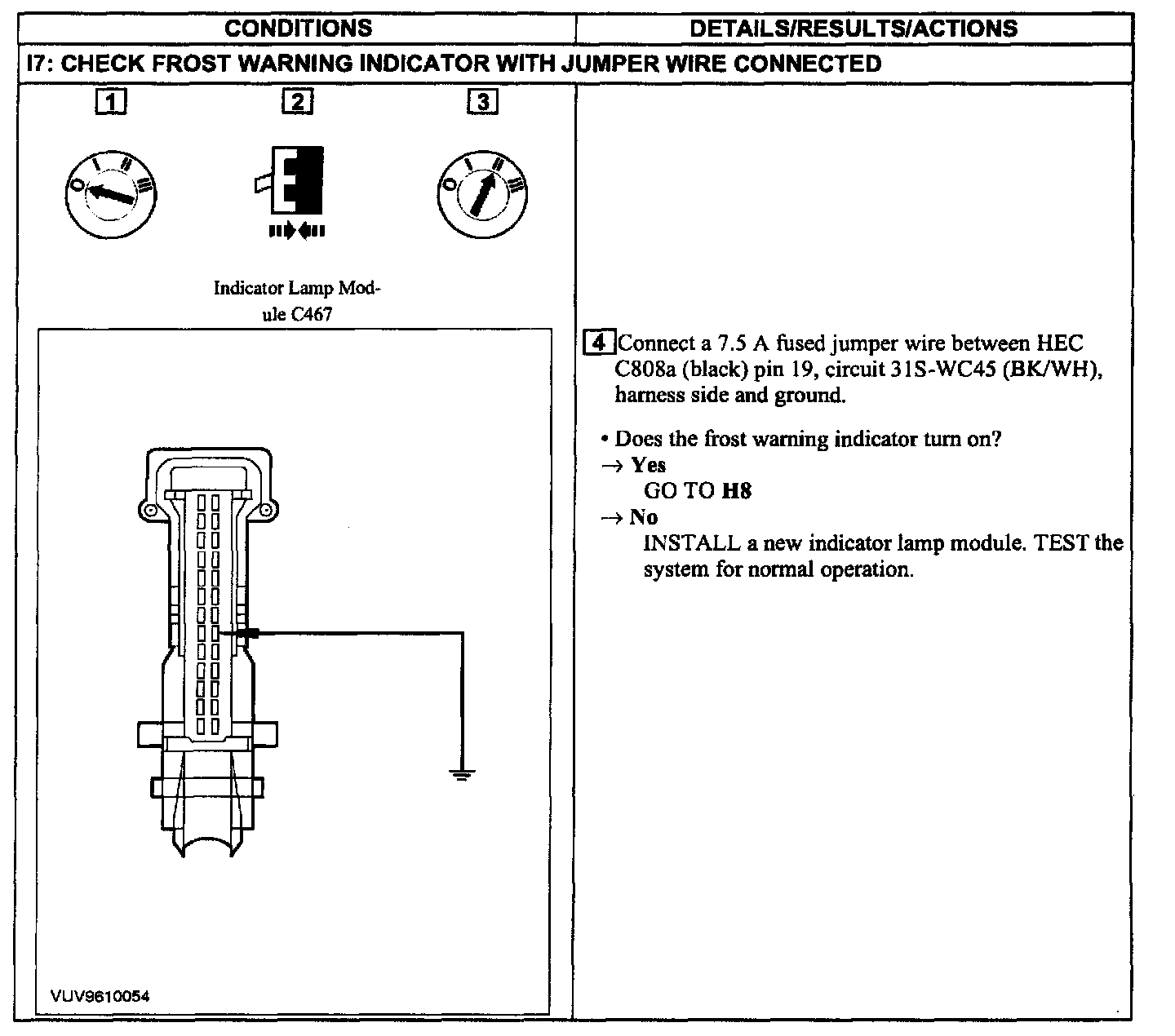

I7:
