Blower Motor: Service and Repair

REMOVAL







1. Remove the footwell upper trim panel (passenger side).
- Remove the pushpins.

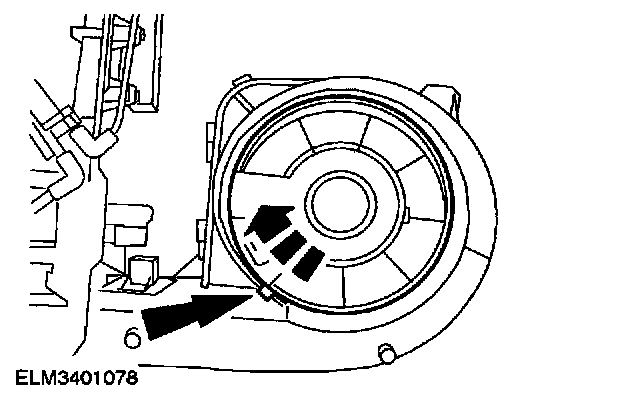

2. Remove the blower motor.
1. Disconnect the electrical connector.
2. Lift the securing tab, turn the motor approximately 30 degrees counter-clockwise and remove the motor.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Engage the securing tab for the blower motor.
