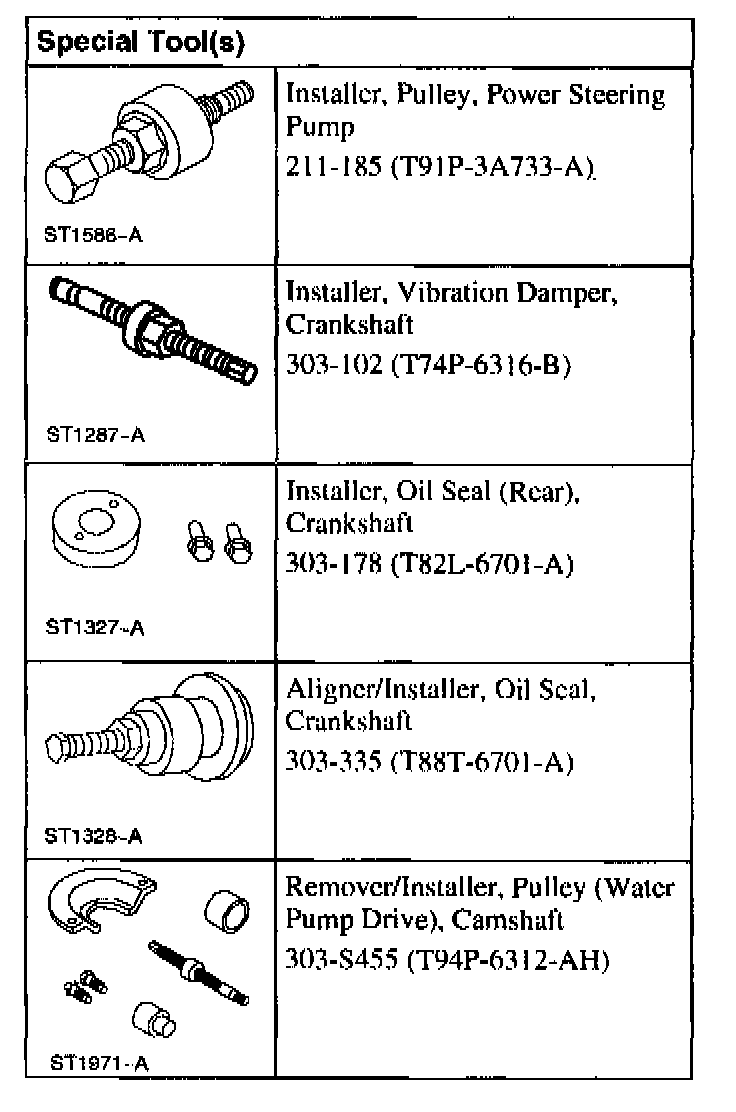

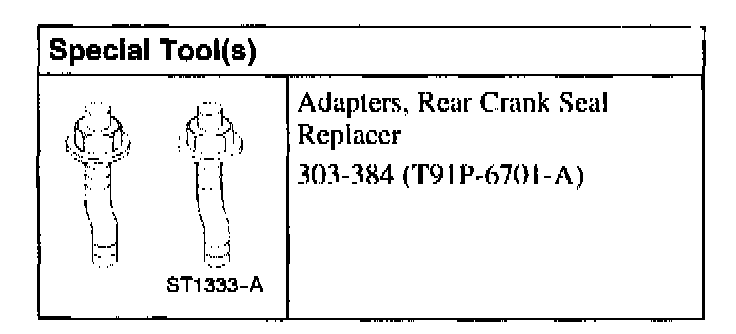

Special Tools:

Assembly

1. Caution: Use only a plastic scraper when removing old gasket material.

Clean all the mating faces and reusable parts thoroughly and check for damage.

2. Note: Never remove pipe plugs or alignment dowels unless they are to be serviced.

Reseal oil passage blanking plugs, as necessary.
^ Use gasket maker F8AZ-19B508-AB meeting Ford specification WSK-M2G348-A5.

3. Select the crankshaft main bearing shells.
^ 11-digit codes are stamped on the rear surface of the cylinder block and on the crankshaft flange to assist in selecting the correct main bearing shells.

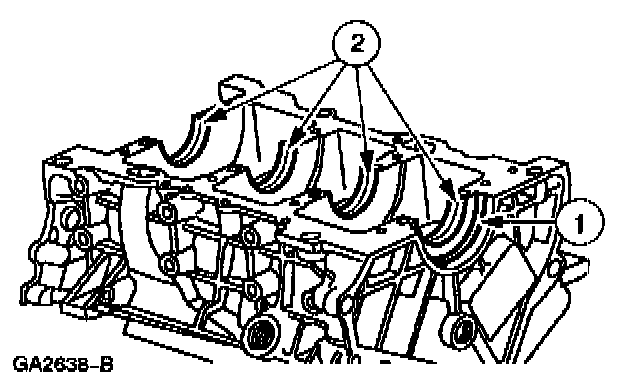

4. Install the upper crankshaft bearings and thrust washer into the cylinder block.
1. Install the upper crankshaft thrust washer.
2. Install the upper crankshaft main bearings.
^ Lubricate the bearings and thrust washer. Use super premium SAE 5W30 motor oil XO5W30-QSP meeting Ford specification WSSM2C153-G.

5. Caution: Avoid damage to any crankshaft journal bearing surfaces.

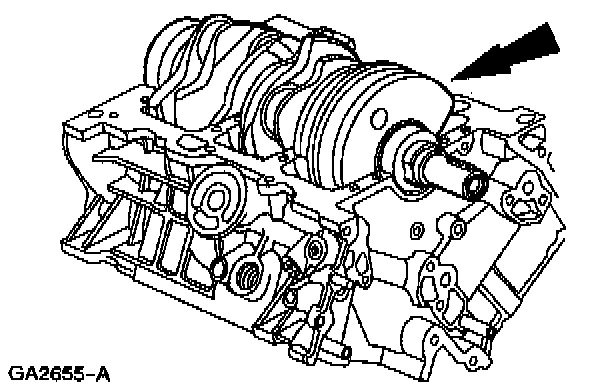

Install the crankshaft.

6. Note: Using a suitable lever of similar tool position the crankshaft rearward before installation of upper thrust bearings.

Note: Visually inspect the bearings to verify that the bearing oil holes align with cylinder block oil feed holes

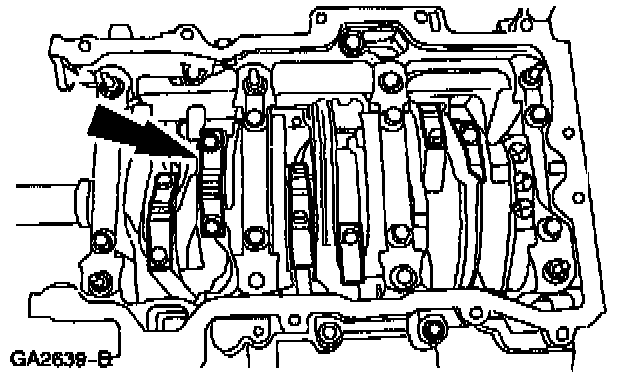

Note: Align assembly tab on thrust bearing to machining spot face on cylinder block.

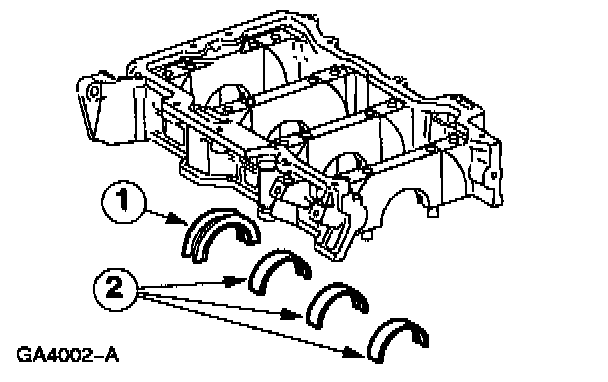

Install the lower crankshaft bearings into the cylinder block.
1. Install the lower crankshaft thrust main bearing into lower cylinder block.
2. Install the lower crankshaft main bearings into lower cylinder block.
^ Lubricate the bearings and thrust washer. Use super premium SAE 5W30 motor oil XO5W30-QSP meeting Ford specification WSSM2C 153-G.

7. Note: Sealant application must stop 6 mm from the rear crankshaft bore on each side.

Note: Install the lower cylinder block and tighten all bolts to specification within four minutes of applying sealant.

Apply a bead of sealant to the cylinder block housing.
^ Use silicone gasket and sealant F7AZ-19554EA meeting Ford specification WSE-M4G323A .

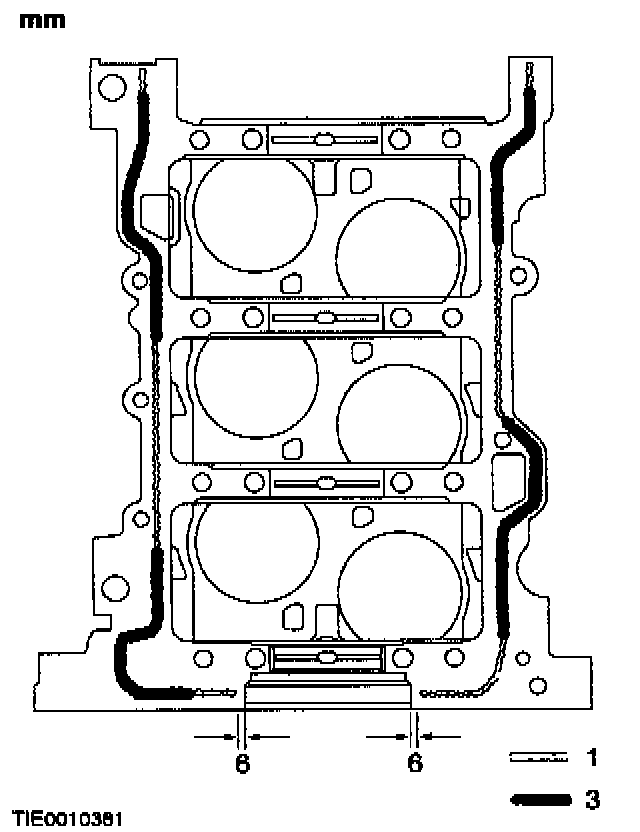

^ Apply a 3 mm bead to area shown.
^ Apply a 1 mm bead to area shown.

8. Caution: Make sure all dowels are fully seated into the lower cylinder block before tightening bolts.

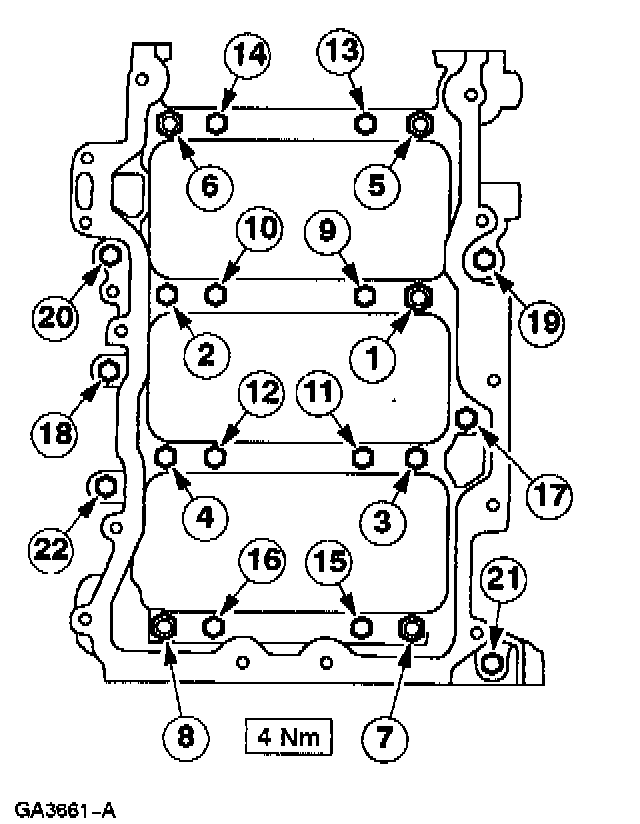

Note: Tighten the bolts in the indicated sequence.

Note: Do not lubricate lower cylinder block bolts.

Note: Do not rotate crankshaft until all bolts are tightened to specification.

Note: Before installing the fasteners use a lever or similar tool to lightly seat the crankshaft forward.

Note: Bolts must be tightened to specification within four minutes of applying sealant.

Position the bulkhead housing on the cylinder block and tighten the fasteners in the indicated sequence.
^ Push crankshaft rearward to seat the crankshaft thrust washer.

9. Caution: Bolts 1 through 16 are tighten to yield and must be replaced.

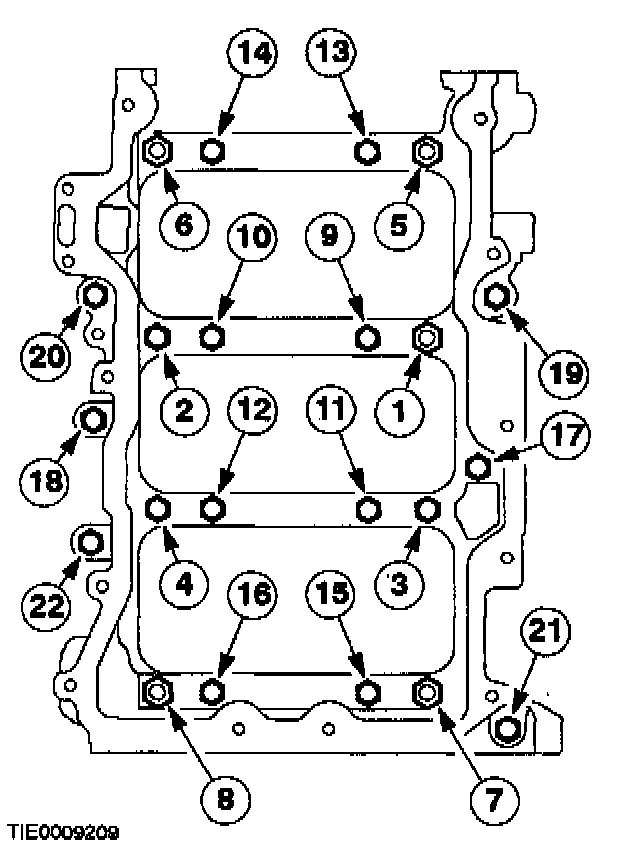

Complete the tightening sequence in four stages as indicated.
^ Stage 1: Bolts 1-8, 25 Nm
^ Stage 2: Bolts 9-16, 40 Nm
^ Stage 3: Bolts 1-16, 90 degrees
^ Stage 4: Bolts 17-22, 25 Nm
^ Check that the crankshaft rotates freely.

10. Remove excess sealant which may squeeze out at the front cover scaling surface.

11. Caution: Use appropriate protection to prevent damage to the crankshaft bearing journals and cylinder bore surfaces. Position the crankshaft with journal at the bottom of the stroke.

12. Note: Install the pistons with the arrow to front of the engine.

Compress the rings and install the piston and connecting rod.
^ Lubricate all piston components. Use super premium SAE 5W30 motor oil XO-5W30-QSP meeting Ford specification WSS-M2C153-G.

13. Caution: When assembling the connecting rods and connecting rod caps, it is imperative that bearing slots and tangs be located on the same side of the connecting rods.

Caution: Connecting rod bolts are tighten to yield and must not be reused.

Position the connecting rod cap on the appropriate connecting rod and alternately tighten the bolts in three stages as indicated.
^ Stage 1: 23 Nm
^ Stage 2: 43 Nm
^ Stage 3: 90 degrees

14. Check the connecting rod side clearance.
15. Rotate the crankshaft to make sure the crankshaft and pistons are operating correctly.

16. Note: Tighten the bolts in the indicated sequence.

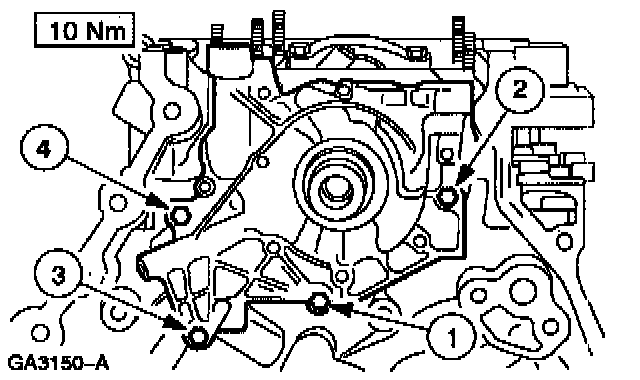

Install the oil pump.

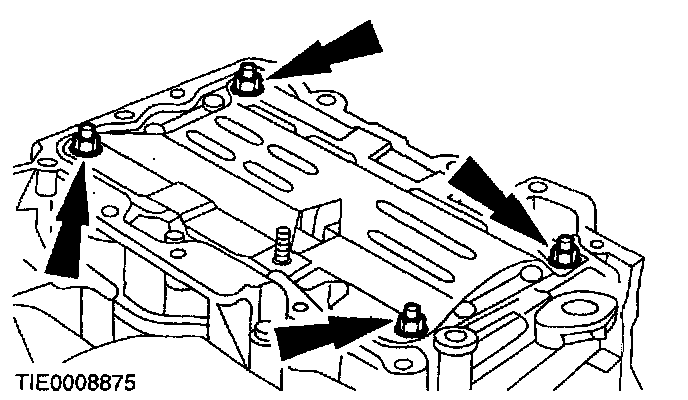

17. Position the oil pan baffle and install the nuts in two stages.
^ Stage 1: 5 Nm
^ Stage 2: 45 degrees (one-eighth turn)

18. Note: Lubricate a new O-ring seal with light engine oil before installation.

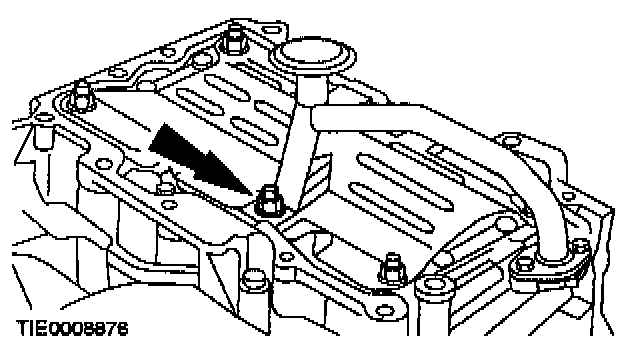

Position the oil intake tube and install the bracket nut in two stages.
^ Stage 1: 5 Nm
^ Stage 2: 45 degrees (one-eighth turn)

19. Install the oil intake tube bolts.

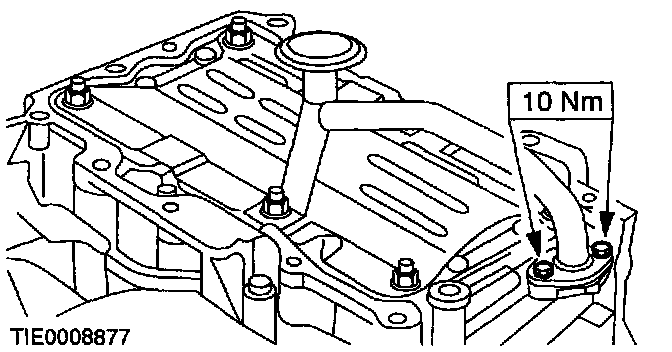

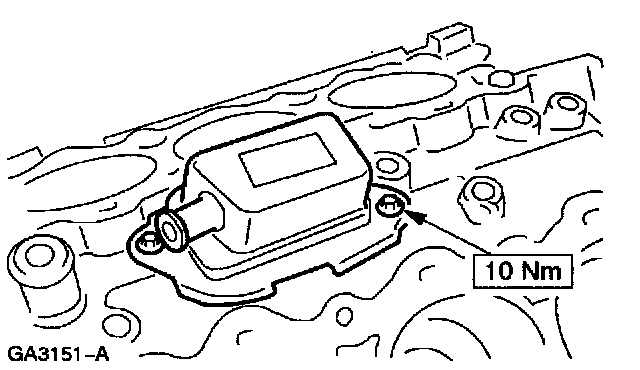

20. Install the oil separator. Use a new gasket with the guide(s) facing the cylinder block.

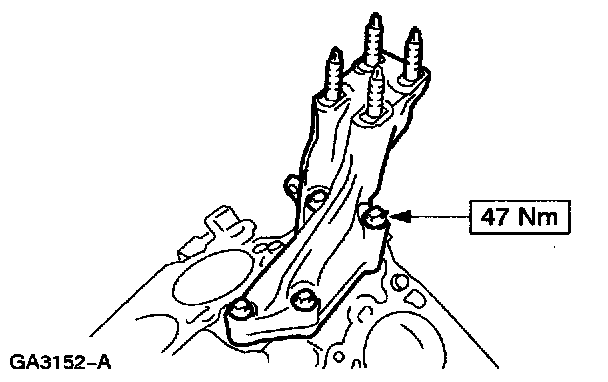

21. Install the power steering pump bracket.
^ Align the bracket with the locating sleeves.

22. Caution: Cylinder head bolts are installed and tightened in two phases.

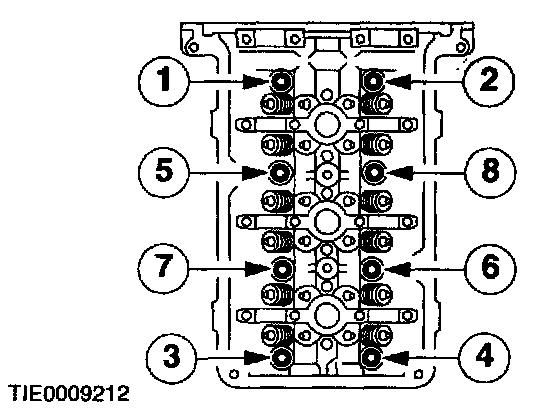

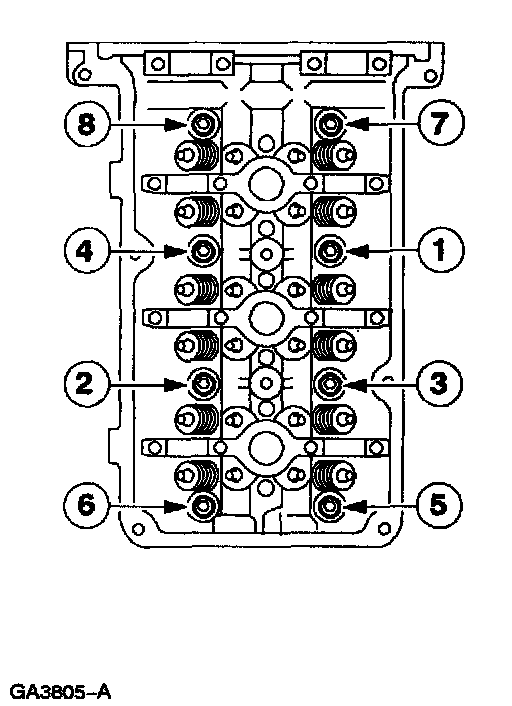

Note: Tighten the bolts in the indicated sequence in two stages.

Note: Left-hand shown, right-hand similar.

Note: Left-hand and right-hand cylinder head gaskets are not interchangeable.

Install the cylinder heads.
^ Use a new cylinder head gasket and align the cylinder head with the locating sleeves.
^ Insert new cylinder head bolts with washers.
^ Stage 1: 40 Nm
^ Stage 2: 90 degrees

23. Note: Right-hand shown, left-hand similar.

Note: Loosen the bolts in the indicated sequence one full turn (360 degrees).

Loosen the cylinder head bolts.

24. Note: Left-hand shown, fight-hand similar.

Tighten the cylinder head bolts in the indicated sequence in three stages.
^ Stage 1: 40 Nm
^ Stage 2: 90 degrees
^ Stage 3: 90 degrees

25. Check all camshaft specifications.

26. Install the crankshaft pulley washer and bolt.

27. Position the crankshaft.
^ Turn the key clockwise to the 11 o'clock position.

28. Note: Left-hand shown, right-hand similar.

Install the hydraulic lash adjusters.
^ Lubricate the hydraulic lash adjusters with engine assembly lubricant before installation.

29. Note: Lubricate the camshafts before installation. Use super premium SAE 5W30 motor oil XO5W30-QSP meeting Ford specification WSSM2C153-G.

Install the left-hand camshafts.

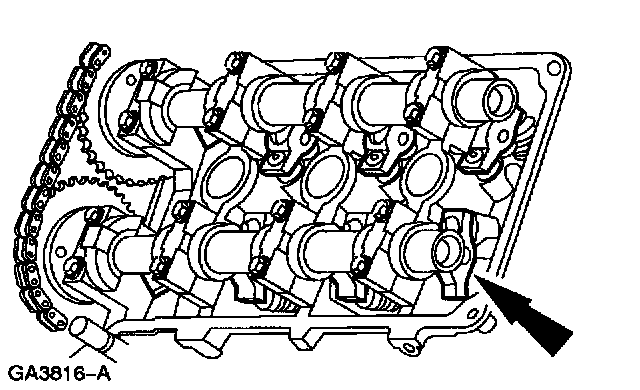

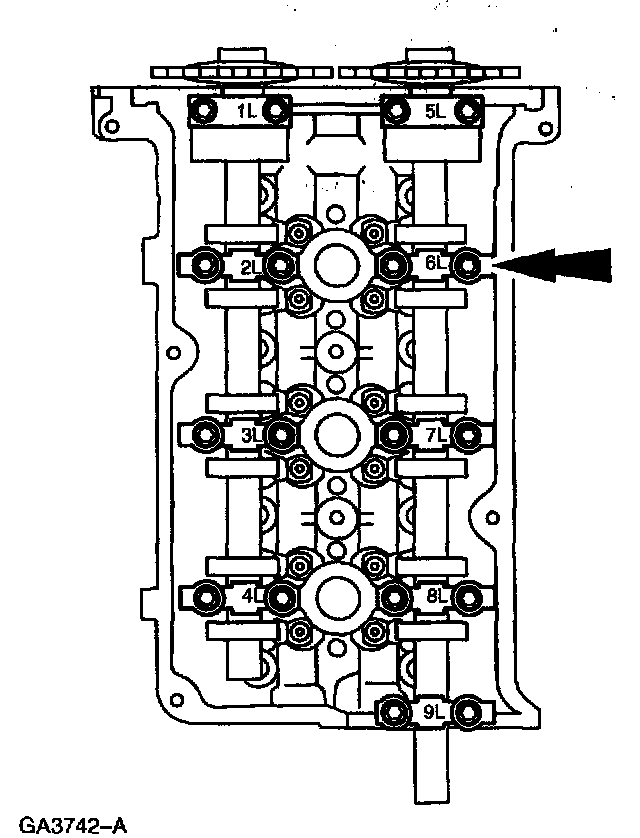

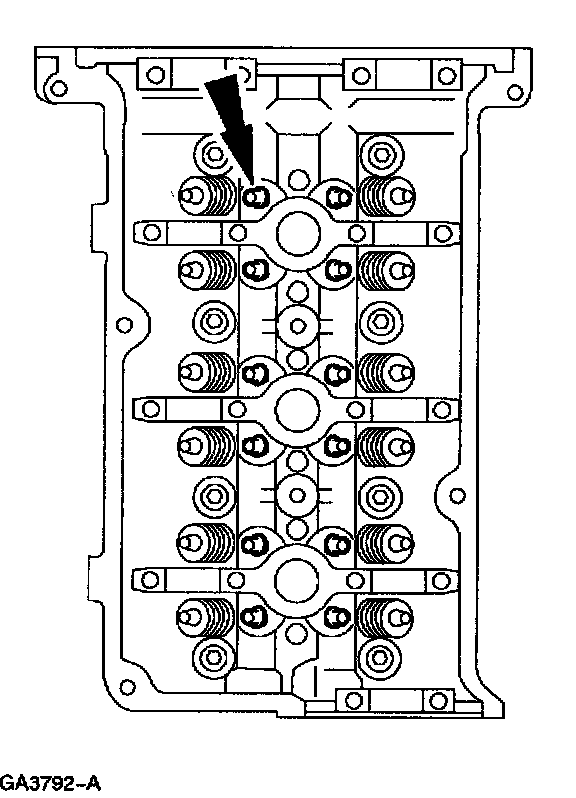

30. Caution: Do not install thrust caps 1L and 5L at this time, or damage to the thrust caps may occur.

Install the left-hand camshaft caps in their original positions.
^ Loosely install the camshaft cap bolts.

31. Note: Lubricate the camshafts before installation. Use super premium SAE 5W30 motor oil XO5W30-QSP meeting Ford specification WSSM2C153-G.

Install the right-hand camshafts.

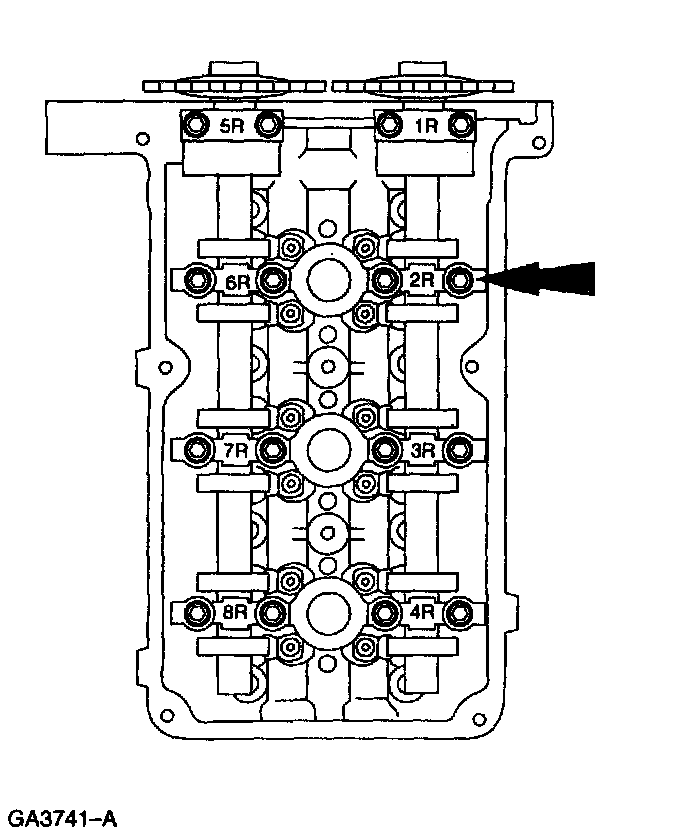

32. Caution: Do not install thrust caps 5R and 111 at this time or damage to the thrust caps may result.

Install the right-hand camshaft caps in their original positions.
^ Loosely install the camshaft cap bolts.

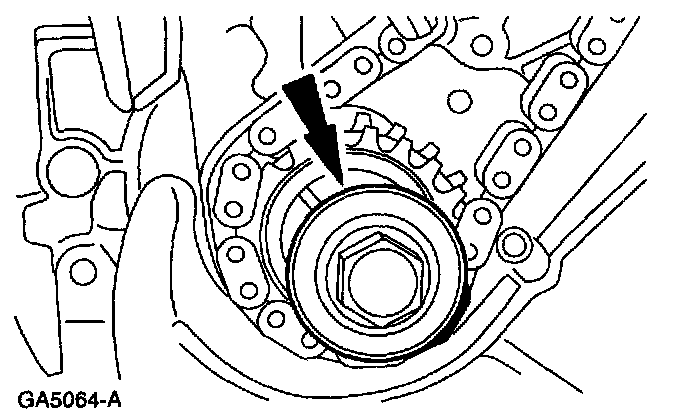

33. Remove the crankshaft pulley bolt and washer, while maintaining the 11 o'clock crankshaft keyway position. .

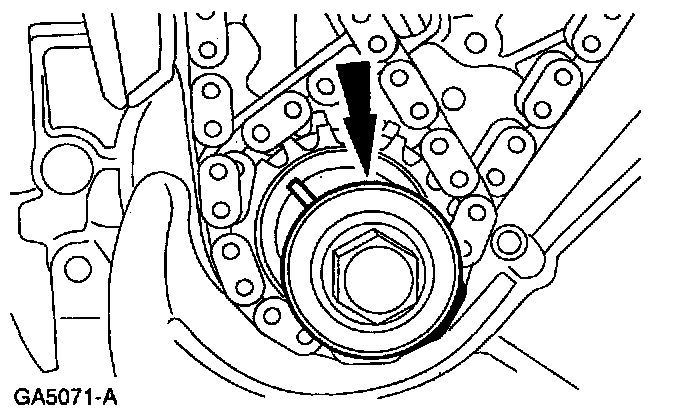

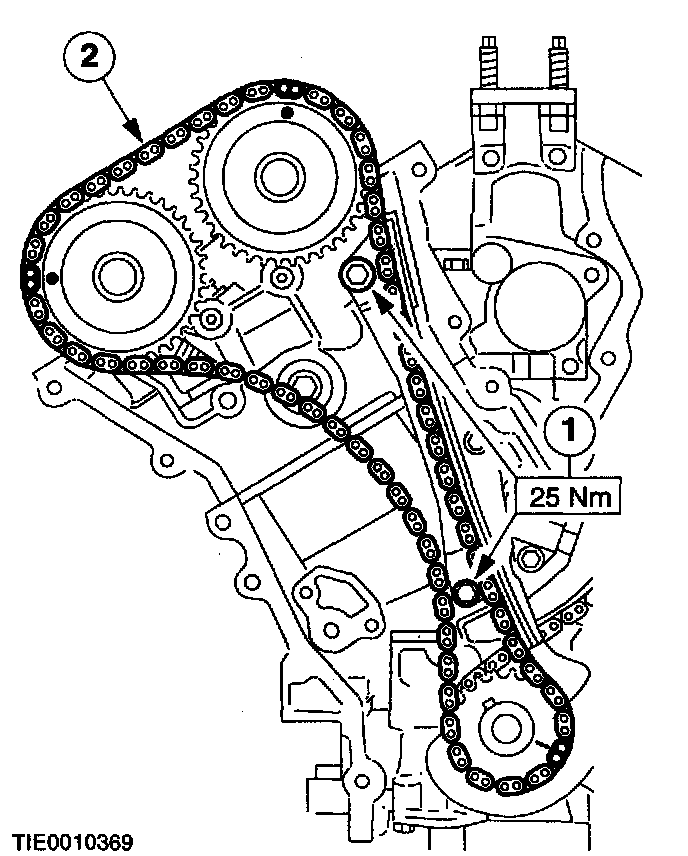

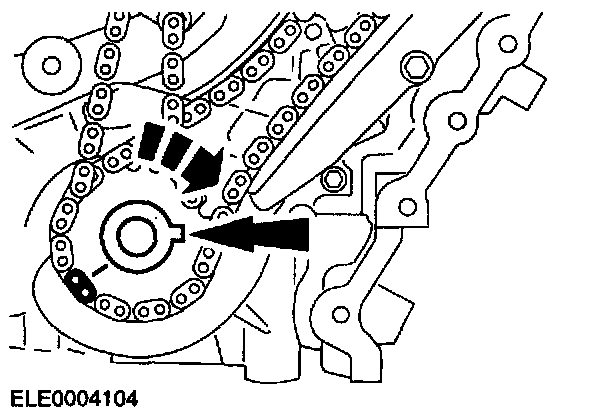

34. Note: The colored links of the timing chain and the marks on the timing sprockets must line up.

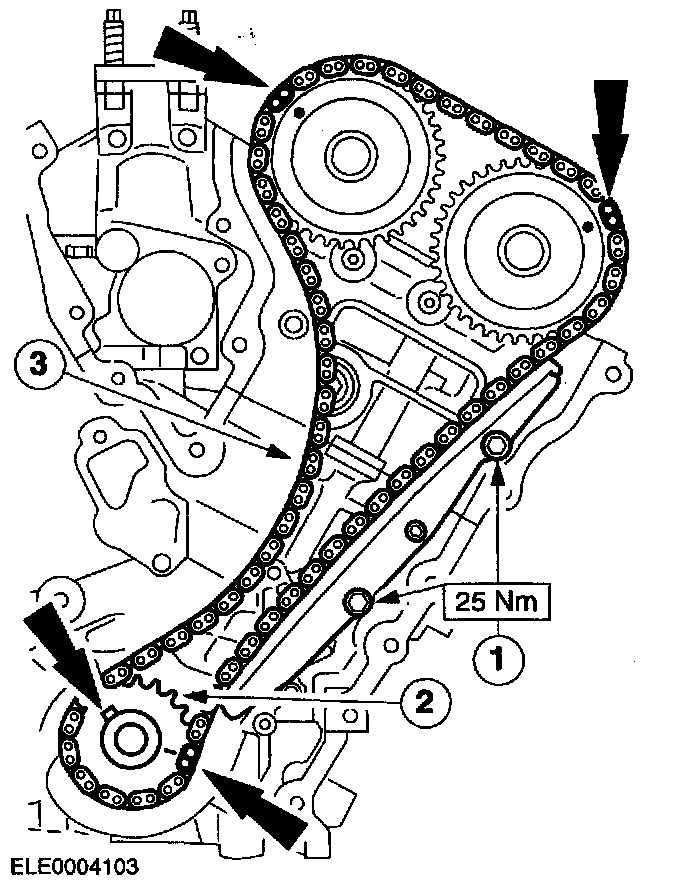

Install the left-hand timing chain.

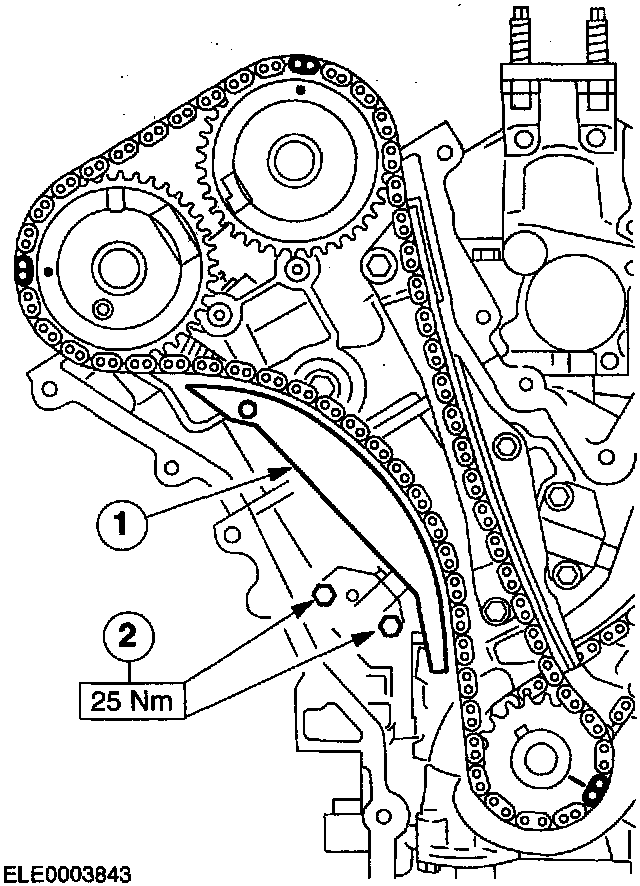

1. Install the left-hand chain guide and bolts (black material).
2. Install the crankshaft sprocket.
3. Install the timing chain.

35. Grip the left-hand timing chain tensioner in a vise with jaw protectors.

36. Caution: During tensioner compression, do not release the ratchet stem until the tensioner piston is fully bottomed in its bore or damage to the ratchet stem will result.

Hold the left-hand timing chain tensioner ratchet lock mechanism away from the ratchet stem with a small pick.

37. Note: The piston should retract with minimal force. If binding occurs, reposition the tensioner to eliminate side loading.

Slowly compress the left-hand timing chain tensioner.

38. Note: The wire must remain in the timing chain tensioner until the tensioner is installed into the engine with the piston bottomed in the bore.

Retain piston with a 1.5 mm wire or paper clip.

39. Install the left-hand timing chain tensioner.

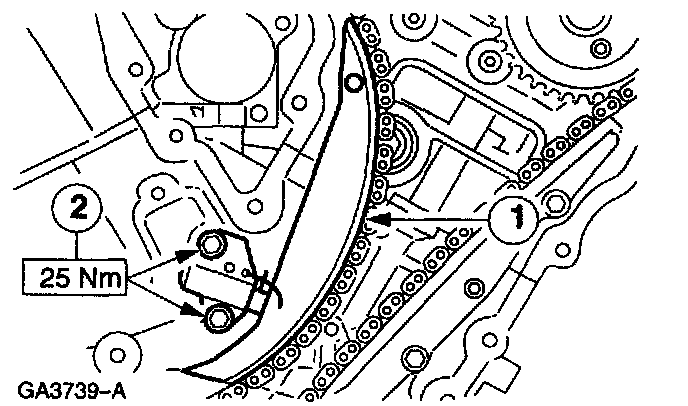

1. Install the left-hand tensioner arm (black material).
2. Install the tensioner adapter plate left-hand, the timing chain tensioner and bolts.

40. Note: The colored links of the timing chain and the marks on the sprocket must line up.

Install the right-hand timing chain.
1. Install the tensioner arm and bolts (tan material)
2. Install the timing chain.

41. Grip the right-hand timing chain tensioner in a vise with jaw protectors.

42. Caution: During tensioner compression, do not release the ratchet stem until the tensioner piston is fully bottomed in its bore, or damage to the ratchet stem will result.

Hold the right-hand timing chain tensioner ratchet lock mechanism away from the ratchet stem with a small pick.

43. Note: The piston should retract with minimal force. If binding occurs, reposition the tensioner to eliminate side loading.

Slowly compress the right-hand timing chain tensioner.

44. Note: The wire must remain in the timing chain tensioner until the tensioner is installed with the piston bottomed in the bore.

Retain piston with a 1.5 mm wire or paper clip.

45. Install the right-hand timing chain tensioner.
1. Install the tensioner arm (tan material).
2. Install the tensioner adapter plate fight-hand, the timing chain tensioner and bolts.

46. Caution: Crankshaft keyway must be in the 11 o'clock position before installation of the left-hand cylinder head roller finger followers.

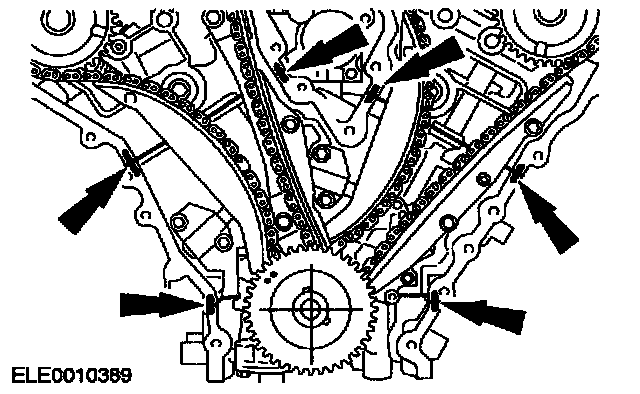

Note: Check that all the timing marks and reference flags are in the correct position before installing the roller finger followers.

Note: Lash adjusters and roller finger followers must be installed in their original positions.

Install the left-hand lash adjusters and roller finger followers.
^ Lubricate the roller finger followers with engine assembly lubricant.

47. Caution: Do not install the left-hand cylinder head camshaft journal thrust caps until camshaft journal caps are installed or damage to the thrust caps may occur.

Note: With left-hand cylinder head roller finger followers installed, align camshaft end play using thrust caps as a guide before tightening journal caps.

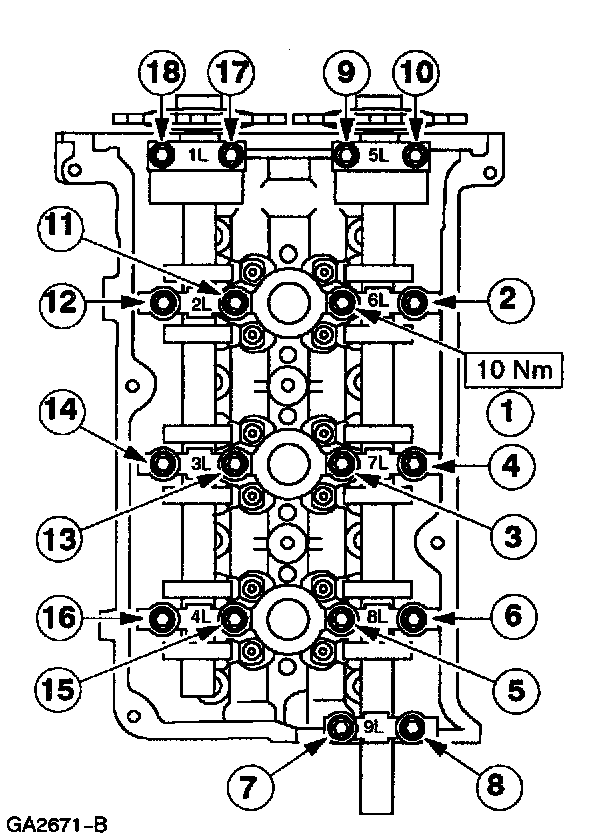

Tighten the left-hand camshaft cap bolts in the indicated sequence in several passes.

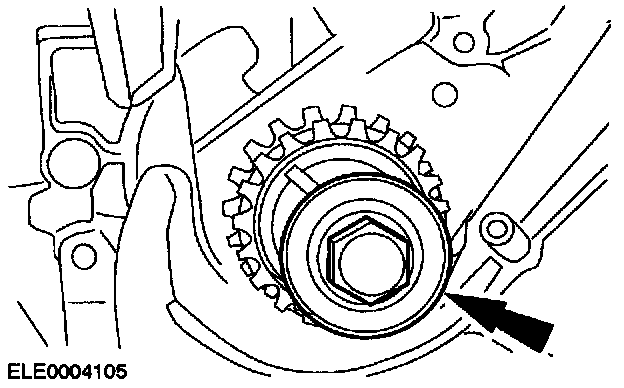

48. Remove the crankshaft pulley, washer and bolt.

49. Caution: Rotating the crankshaft counterclockwise may cause the timing chains to bind and may cause engine damage.

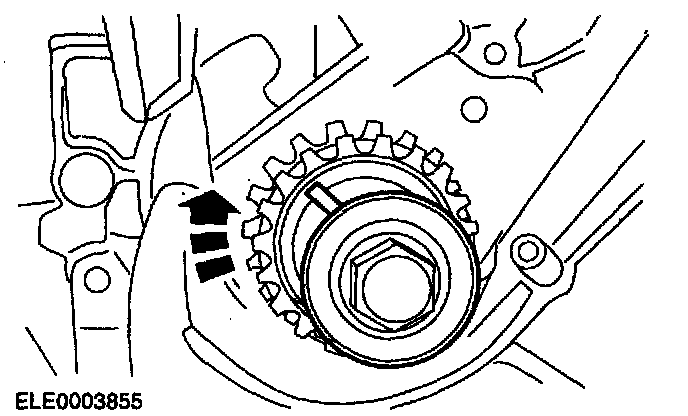

Rotate the engine clockwise to locate the crankshaft keyway to the 3 o'clock position.

50. Caution: The crankshaft keyway must be in the 3 o'clock position before installation of the right-hand cylinder head roller finger followers. Failure to do so may lead to engine damage.

Note: Roller finger followers must be installed in their original locations.

Install the right-hand roller finger followers. Lubricate the roller finger followers with engine assembly lubricant.

51. Caution: Do not install right-hand cylinder head camshaft journal thrust caps until camshaft journal caps are installed, or damage to the thrust caps may occur.

Note: With right-hand cylinder head roller finger followers installed, align camshaft end play using thrust caps as a guide before tightening journal caps.

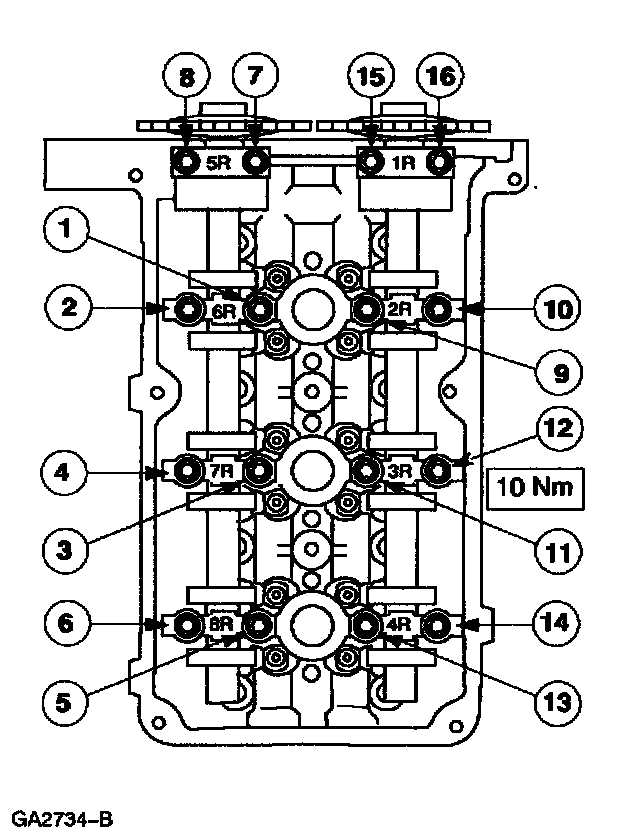

Tighten the right-hand camshaft cap bolts in the indicated sequence in several passes.

52. Note: Left-hand shown, right-hand similar.

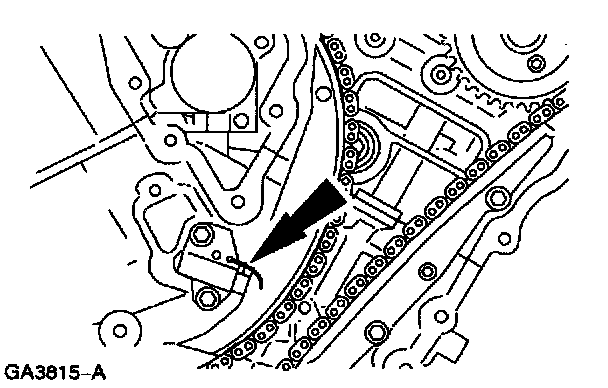

Remove the right-hand and left-hand chain tensioner retaining wires.

53. Remove the crankshaft pulley bolt and washer.

54. Install the Camshaft Position (CKP) sensor pulse wheel.
^ Install the wheel with the indentation toward the front.

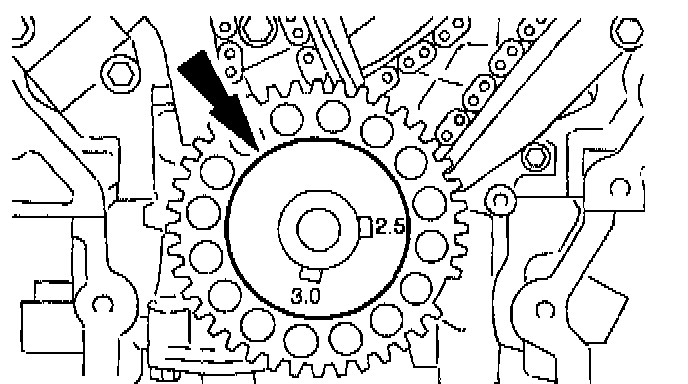

^ Use the keyway marked 2.5L (blue paint stripe)

55. Note: Install the engine front cover within six minutes of applying the sealant.

Apply a 6 mm dot of sealant to the mating faces.
^ Clean the front cover to cylinder block and cylinder head sealing surfaces with metal surface cleaner.

56. Note: The engine front cover must be installed in a two-step sequence.

Install the engine front cover.
^ Use new gaskets in the engine front cover.
^ Note locating dowels and the locations of the studs.

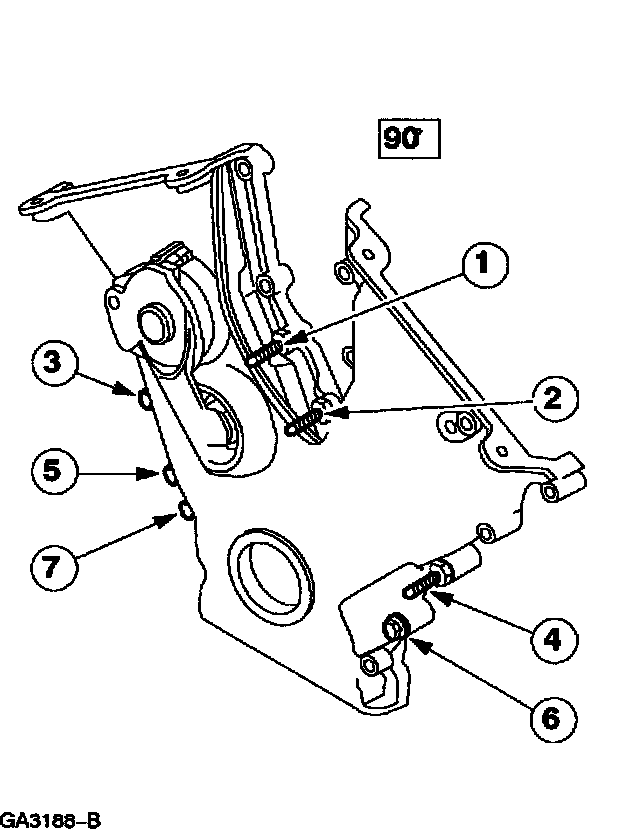

^ Install the bolts and studs in the indicated sequence and tighten in two steps.
^ Tighten the bolts and studs one-quarter turn (90 degrees) after engine front cover contacts cylinder block and cylinder heads.

57. Note: Tighten the bolts and studs in the indicated sequence.

Note: 3, 4, 8, 10, 11, 14, 15,16 are stud locations.

Install the remaining engine front cover bolts and studs.

58. Note: Lubricate the new O-ring seals with light engine oil before installation.

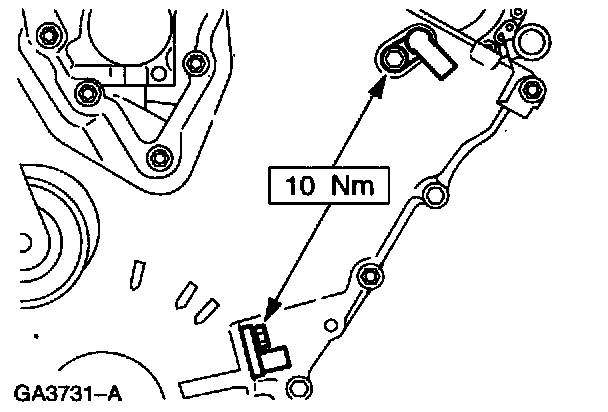

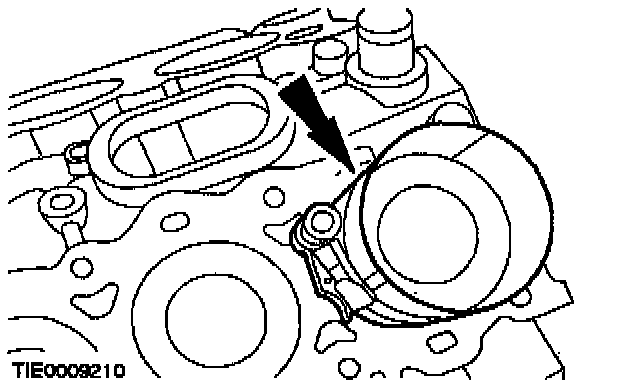

Install the sensors and wiring brackets.
^ Install the CKP sensor.
^ Install the CMP sensor.
