Piston Inspection

1. Caution: Do not use any aggressive cleaning fluid or a wire brush to clean the piston.





Carry out a visual inspection.

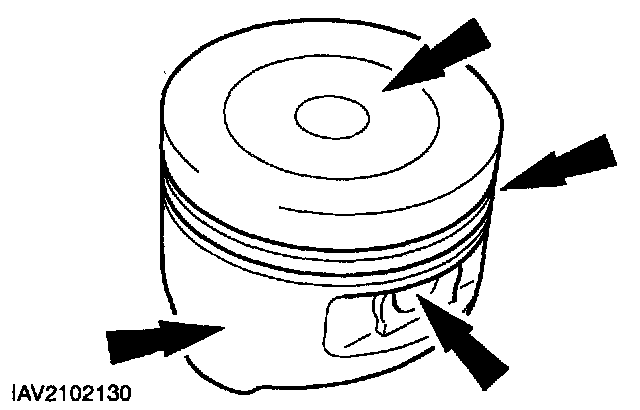

^ Clean the piston skirt, pin bush, ring grooves and crown and check for wear or cracks.
^ If there are signs of wear on the piston skirt, check whether the connecting rod is twisted or bent.

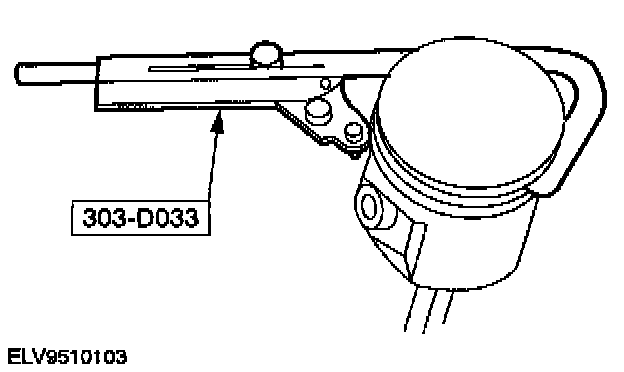

2. Using the special tool clean the piston ring grooves.
