Removal And Installation

REMOVAL

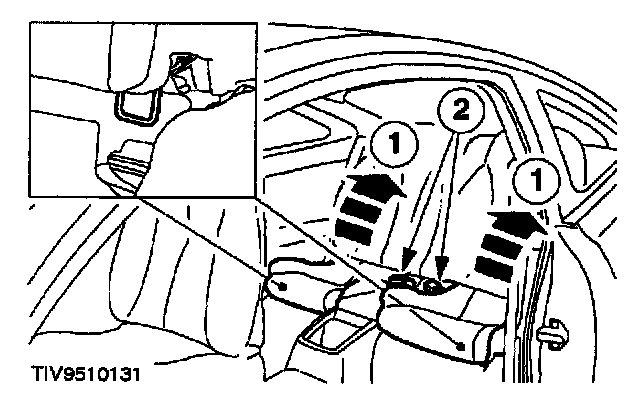

1. Remove the rear seat cushion.
1. Push the cushion towards the backrest to disengage the retaining clips.
2. Detach the safety belt buckles from the seat cushion.

INSTALLATION
1. To install, reverse the removal procedure.
