Rear Seat Cushion

DISASSEMBLY
1. Remove the rear seat cushion.

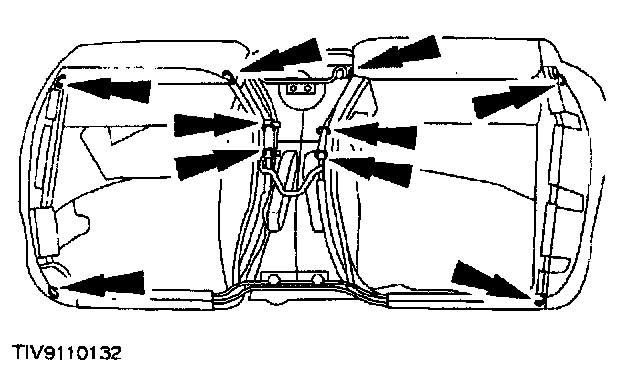

2. Remove the ten hog rings.







3. Detach the cover.

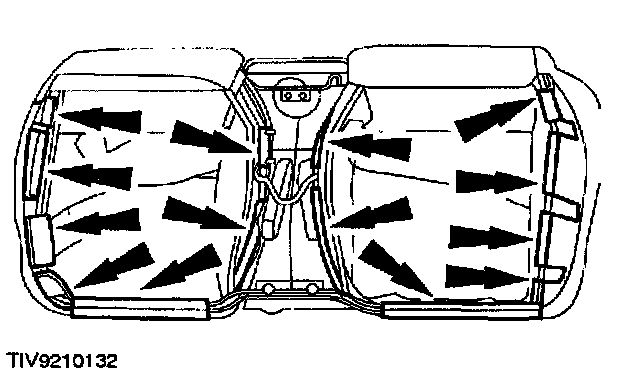

^ Detach each of the 14 plastic retaining strips from the seat frame.







4. Remove the seat cushion.

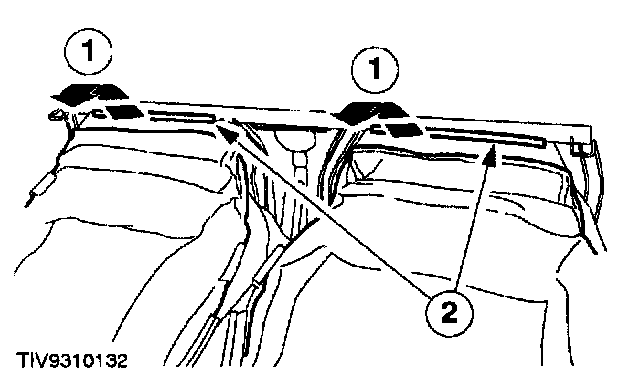

1. Roll back seat cover and pad from the seat frame.
2. Detach the plastic retaining strip.

ASSEMBLY

1. To assemble, reverse the disassembly procedure.

NOTE: Make sure the seat cover is correctly positioned onto the backrest frame to give correct cover to frame alignment.
