Front Seat Cushion

DISASSEMBLY
1. Remove the front seat.

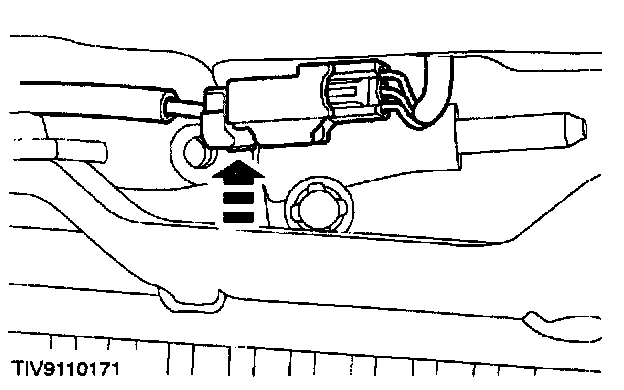

2. Disconnect the safety belt warning indicator electrical connector.
^ Detach the wiring harness from the seat base.

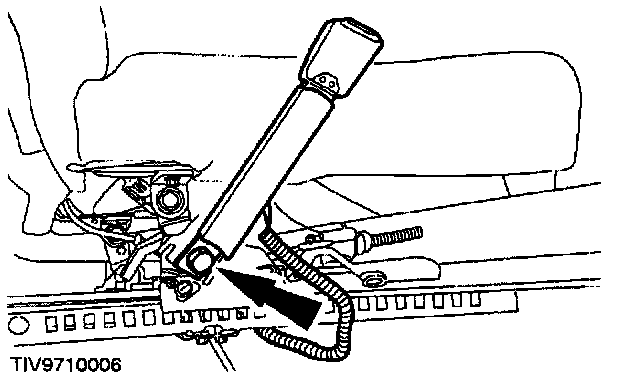

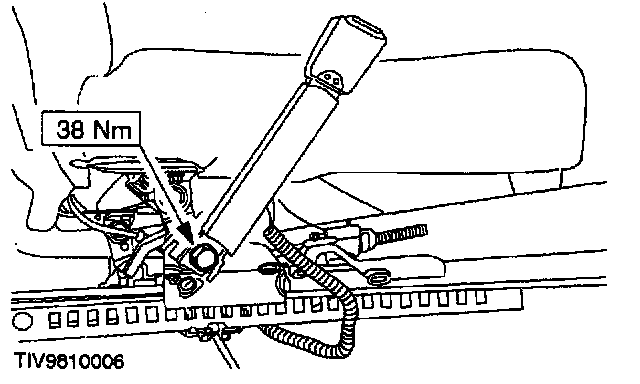

3. Remove the safety belt stalk.

NOTE: The safety belt buckle anchor bolt is part of the buckle assembly and should not be separated.

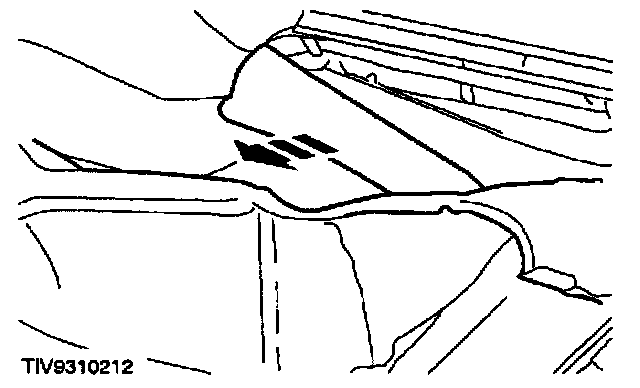

4. Detach the outer seat base cover.
1. Remove the three retaining screws.
2. Release the retaining clip.

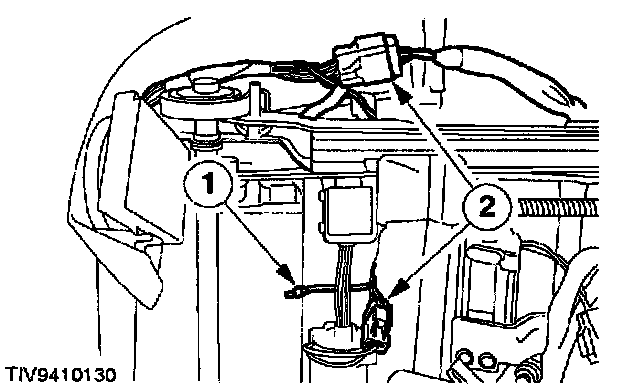

5. Disconnect the wiring harness.
1. Disconnect the wiring harness from the retaining clips on the seat base.
2. Disconnect the two electrical connectors.

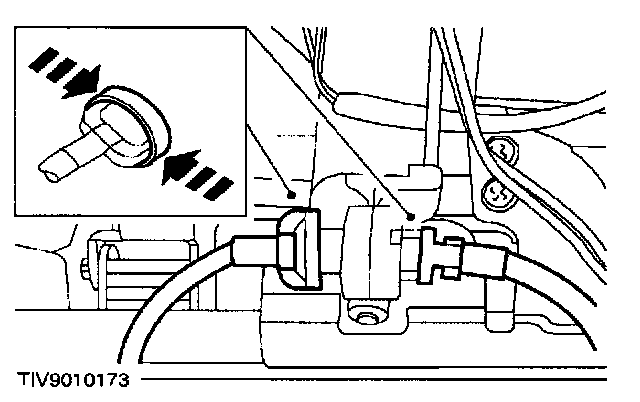

6. Detach the seat backrest drive cables.
^ Disconnect the drive cable connectors at the backrest motor on the seat base.

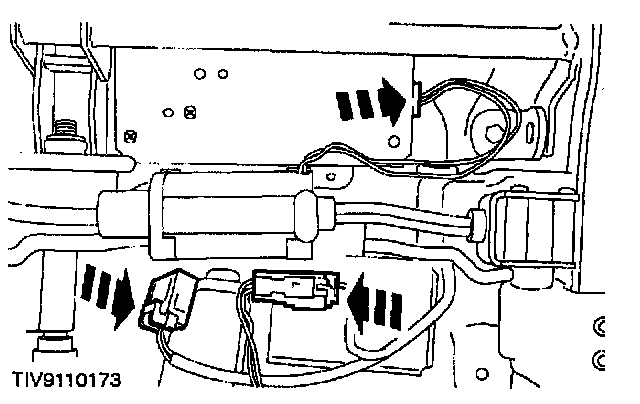

7. Disconnect the seat base wiring harness.
^ Disconnect the electrical connectors.

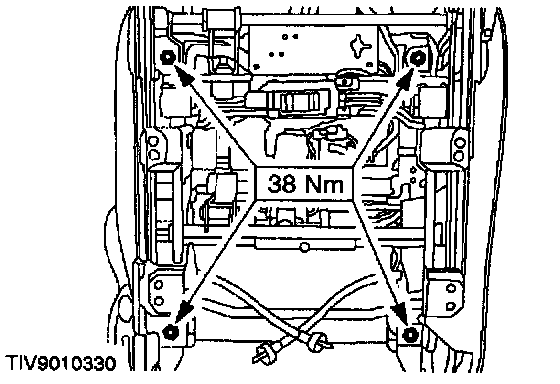

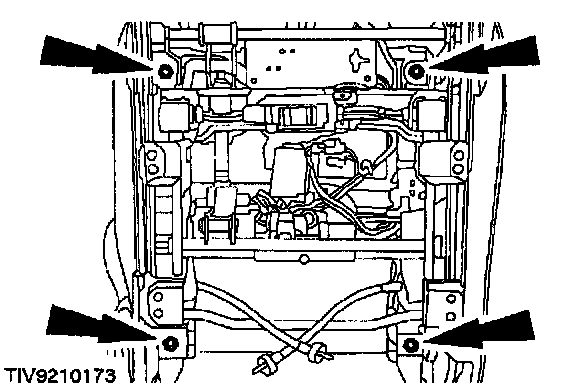

8. Remove the seat track assembly.







9. Detach the seat cover at the base of the backrest.
^ Detach each of the retaining strips from the underside of the seat.

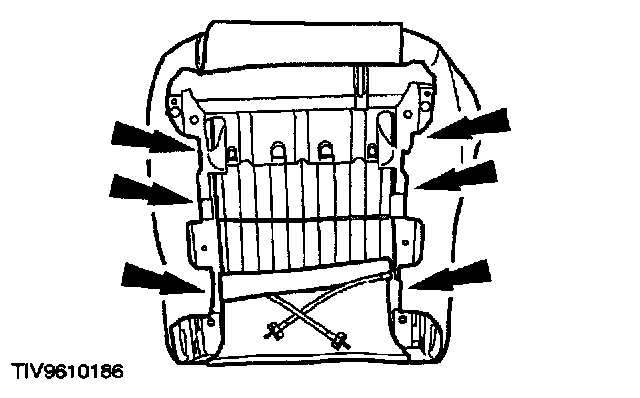

10. Detach the seat cover from the seat frame detach each of the six plastic retaining strips.







11. Remove the seat cover and pad. Pull the cover through from the underside of the seat backrest.

ASSEMBLY












1. To assemble, reverse the disassembly procedure.
