Test G: Door Is Inoperative - The Key Cylinder Switch Is Not Functioning Correctly
Test G: Door Is Inoperative - The Key Cylinder Switch Is Not Functioning Correctly

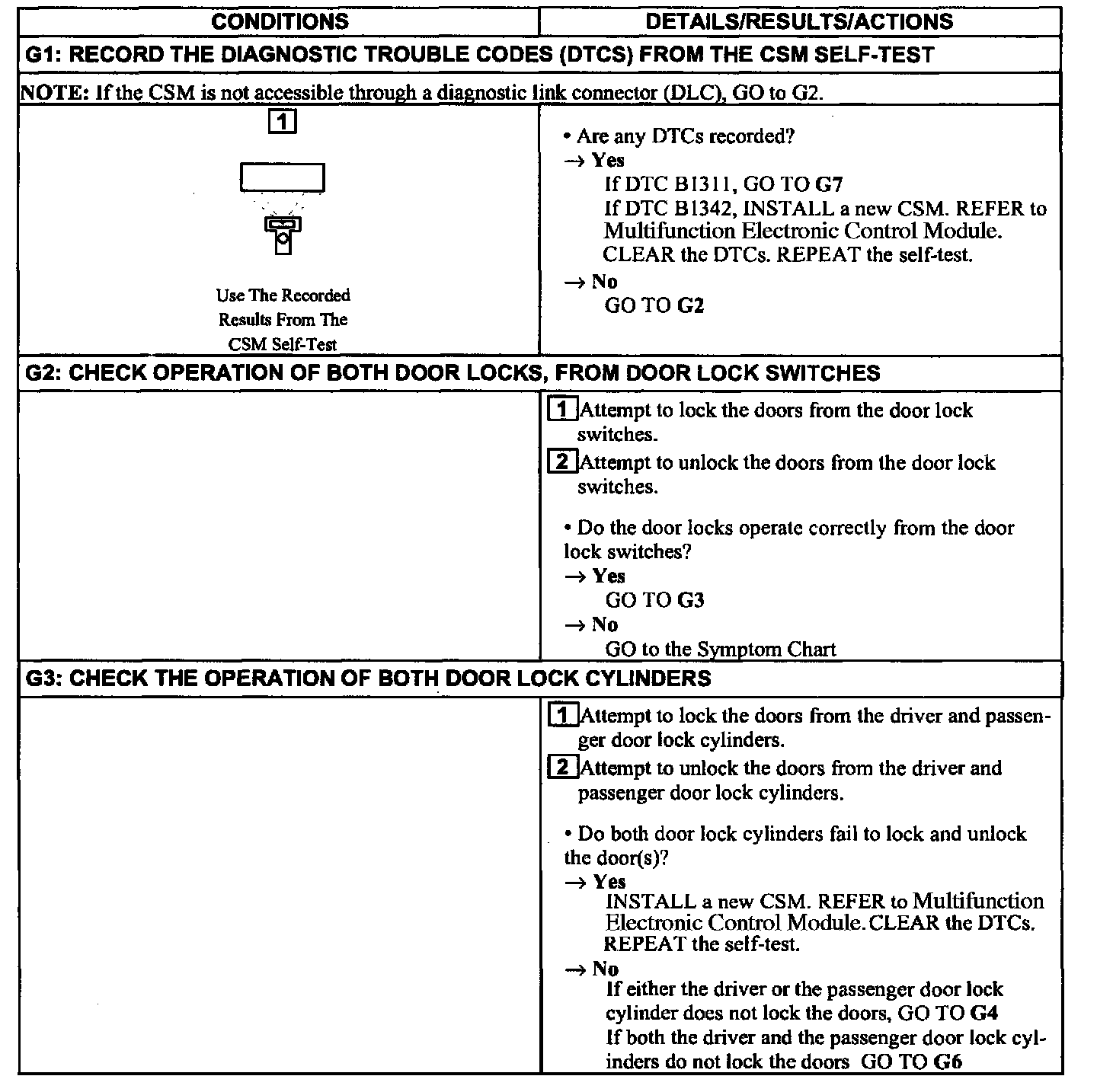

G1 - G3:
G4 - G5:

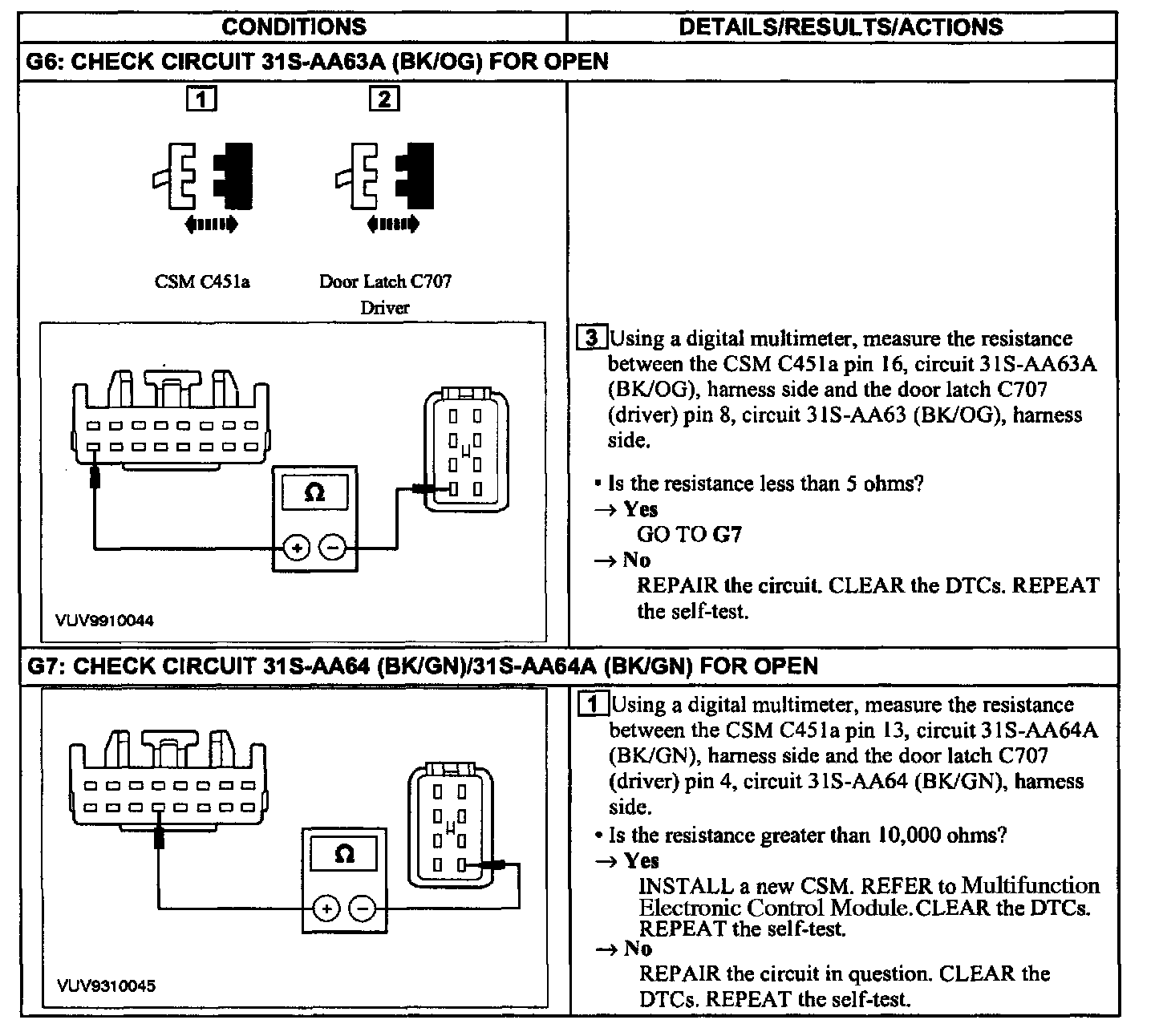

G6 - G7:
