Removal and Replacement

SUN VISOR

Removal

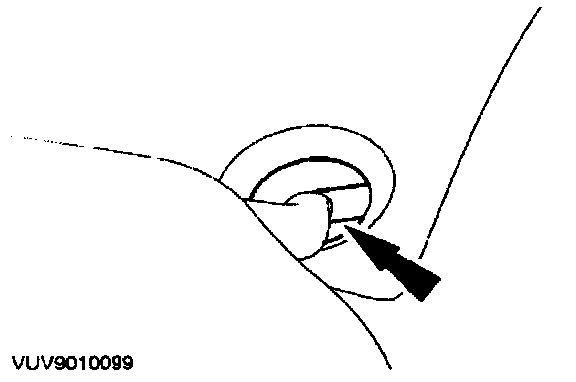

1. Detach the sun visor from its retaining clip.







2. NOTE: Make sure the screw cover is removed with care to prevent breaking the retainers.

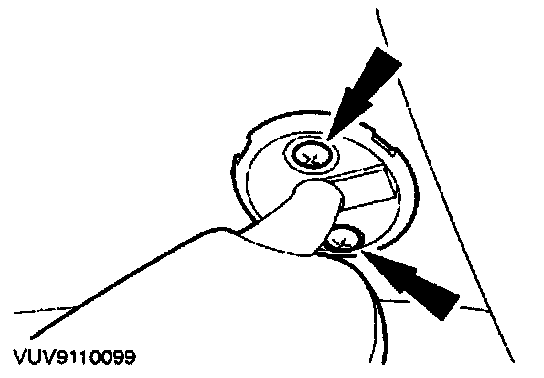

Remove the screw cover.







3. Detach the sun visor.

Vehicles with vanity mirror illumination







4. Disconnect the electrical connector and remove the sun visor.

Installation
1. To install, reverse the removal procedure.
