Rear Window Wiper Motor

REMOVAL

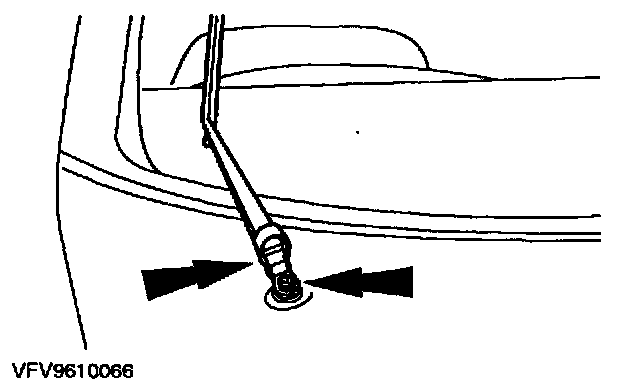

1. Lift up the cover and loosen the nut.
2. Open the liftgate.







3. Remove the liftgate trim panel.

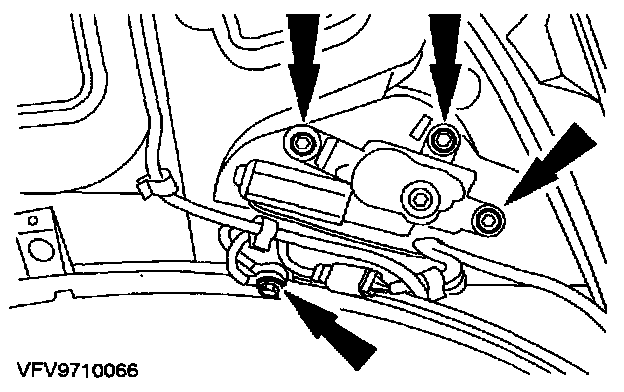

4. Loosen the ground connection and the bolts, and disconnect the near wiper motor electrical connector.
5. Remove the rear window wiper motor.

INSTALLATION

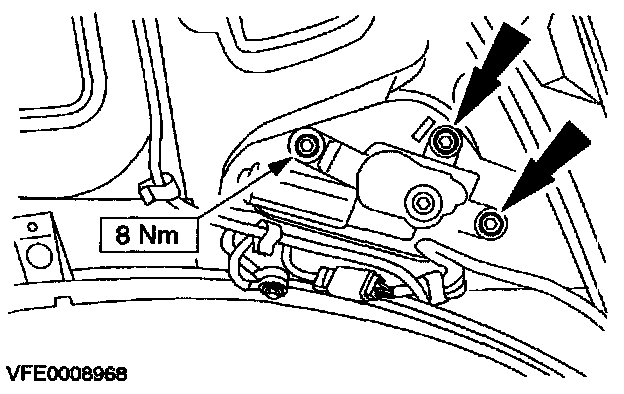

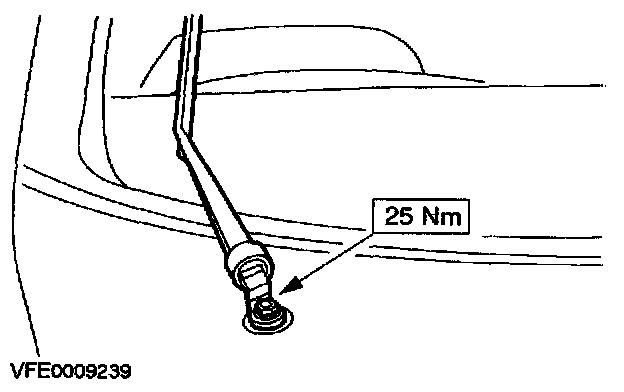

1. To install, reverse the removal procedure.

CAUTION: Bolts longer than 8 mm will damage the liftgate. Do not damage the sealing ring for the wiper.
