Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test I: Wiper Is Inoperative - Rear

Test I: Wiper Is Inoperative - Rear

I1 - I2:

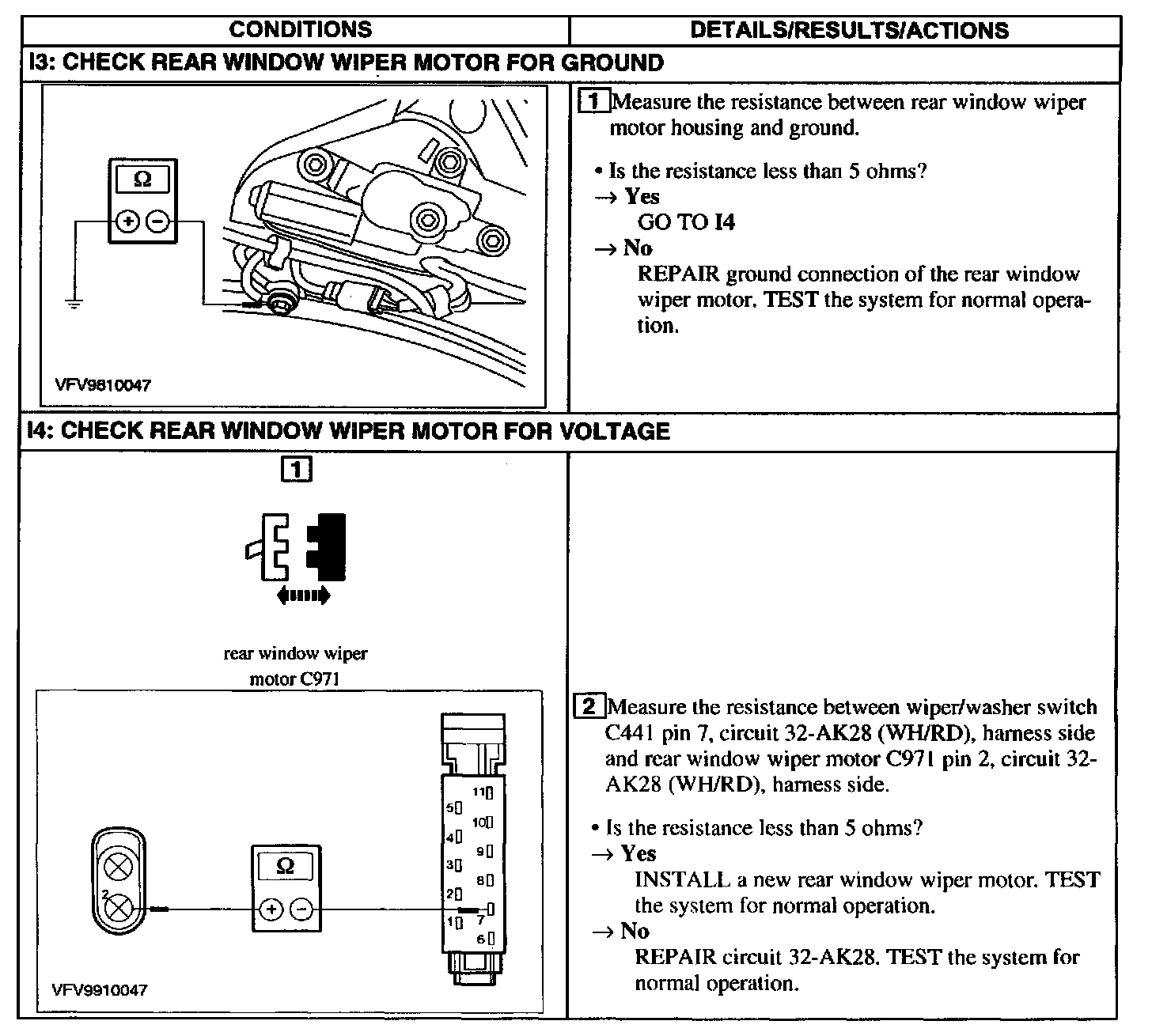

I3 - I4:
