Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test G: Wipers Will Not Park At the Correct Position

Test G: Wipers Will Not Park At the Correct Position

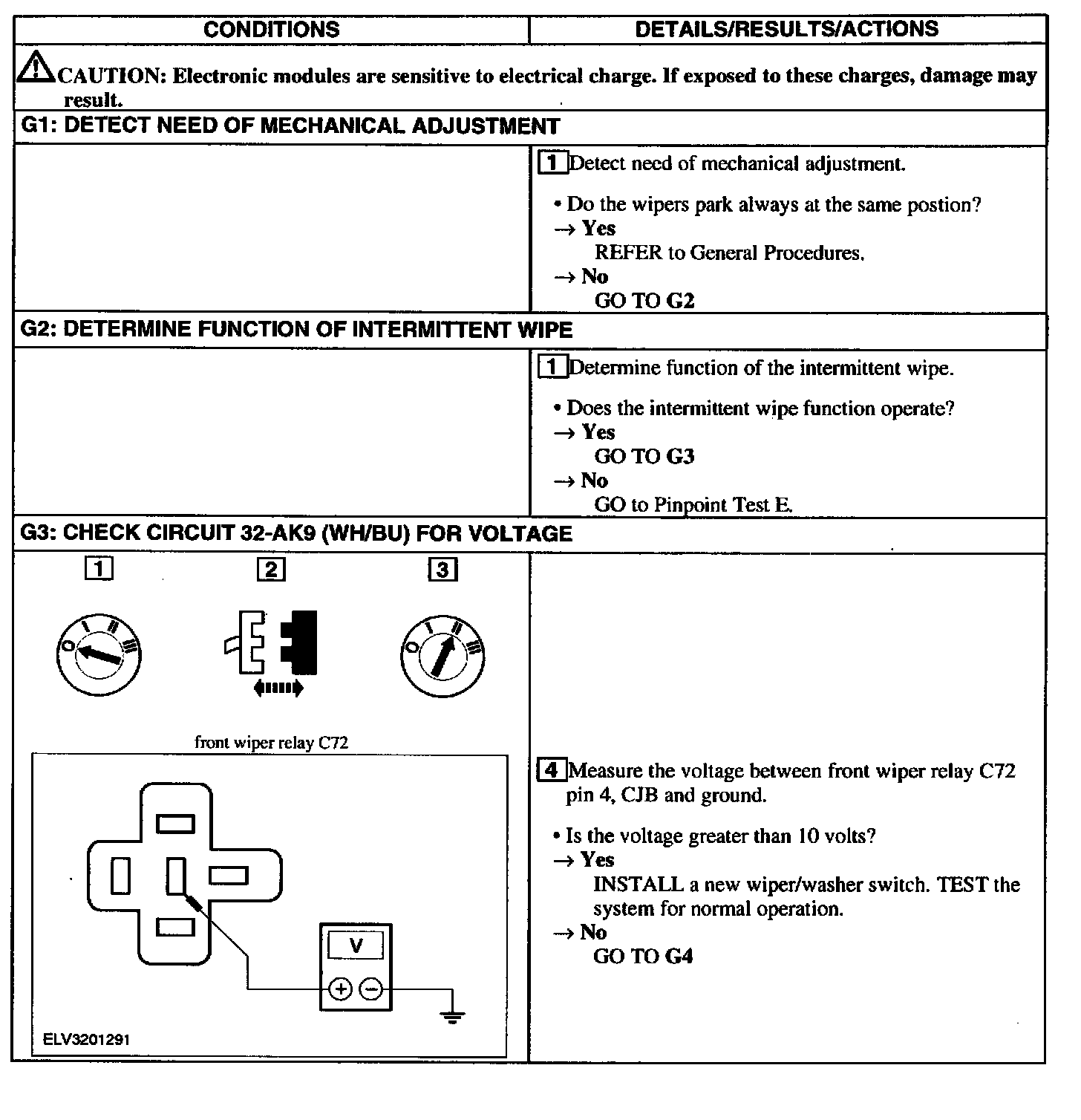

G1 - G3:

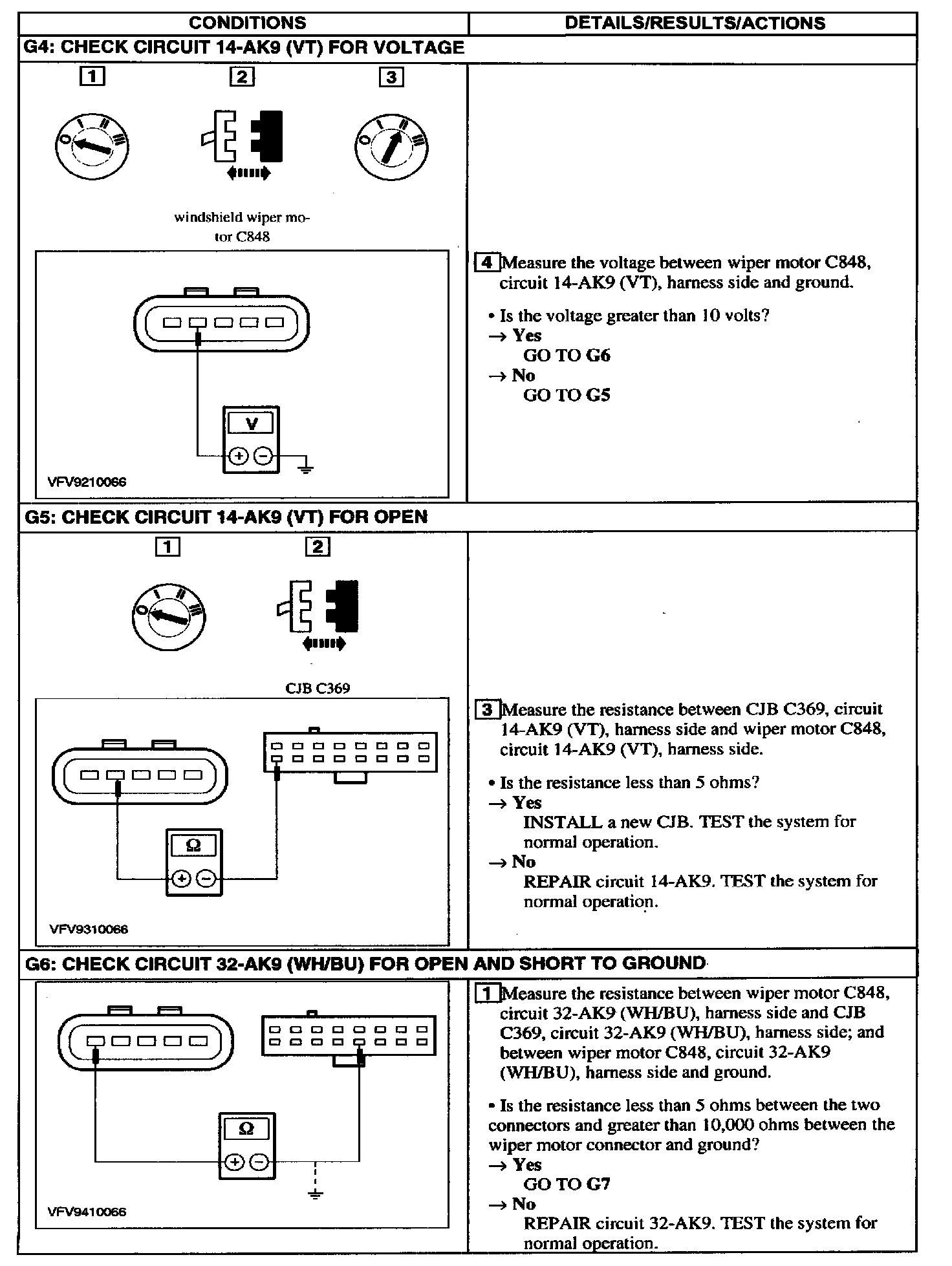

G4 - G6:

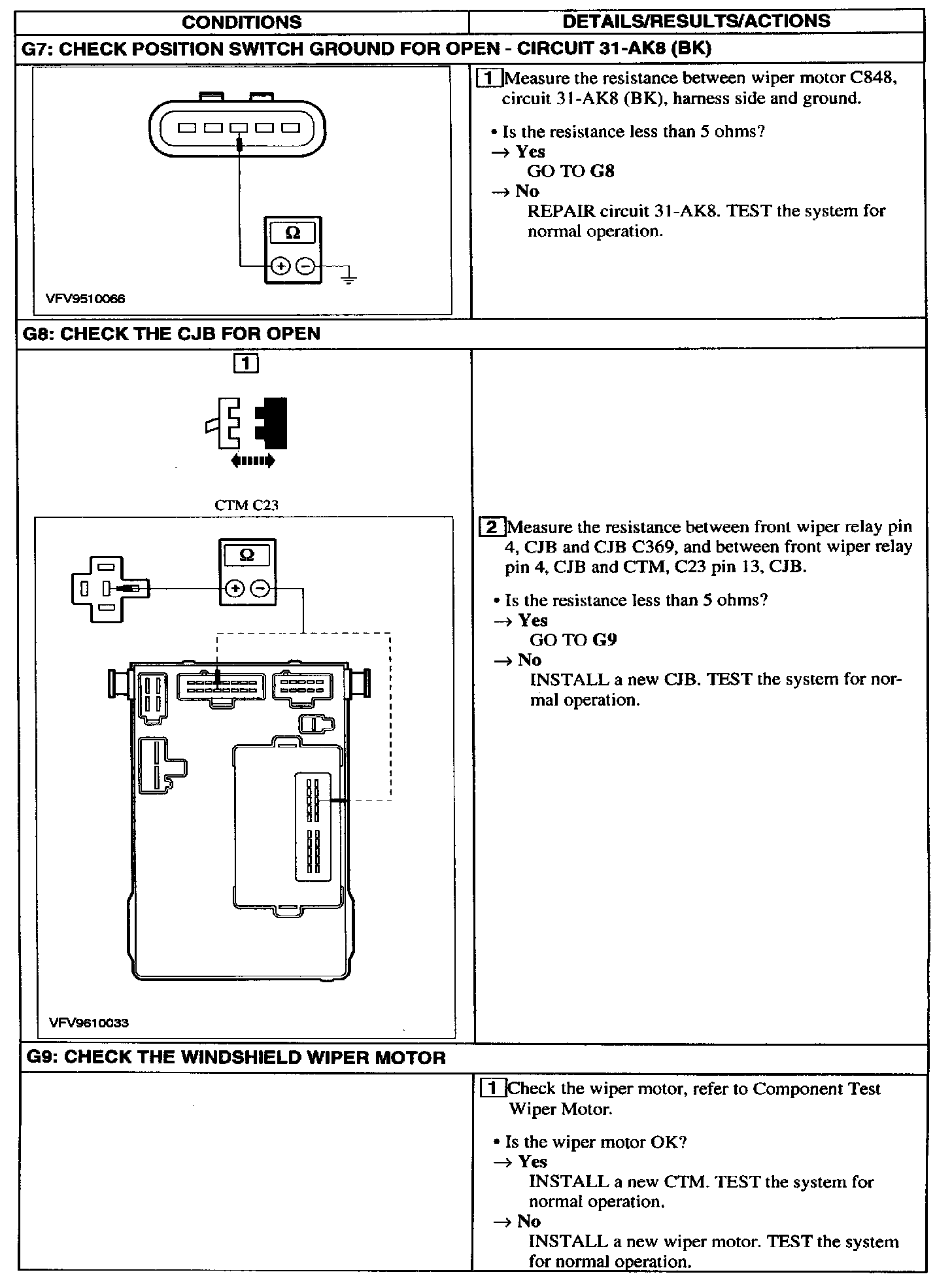

G7 - G9:
