Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test A: Wipers Are Inoperative - Front

Test A: Wipers Are Inoperative - Front

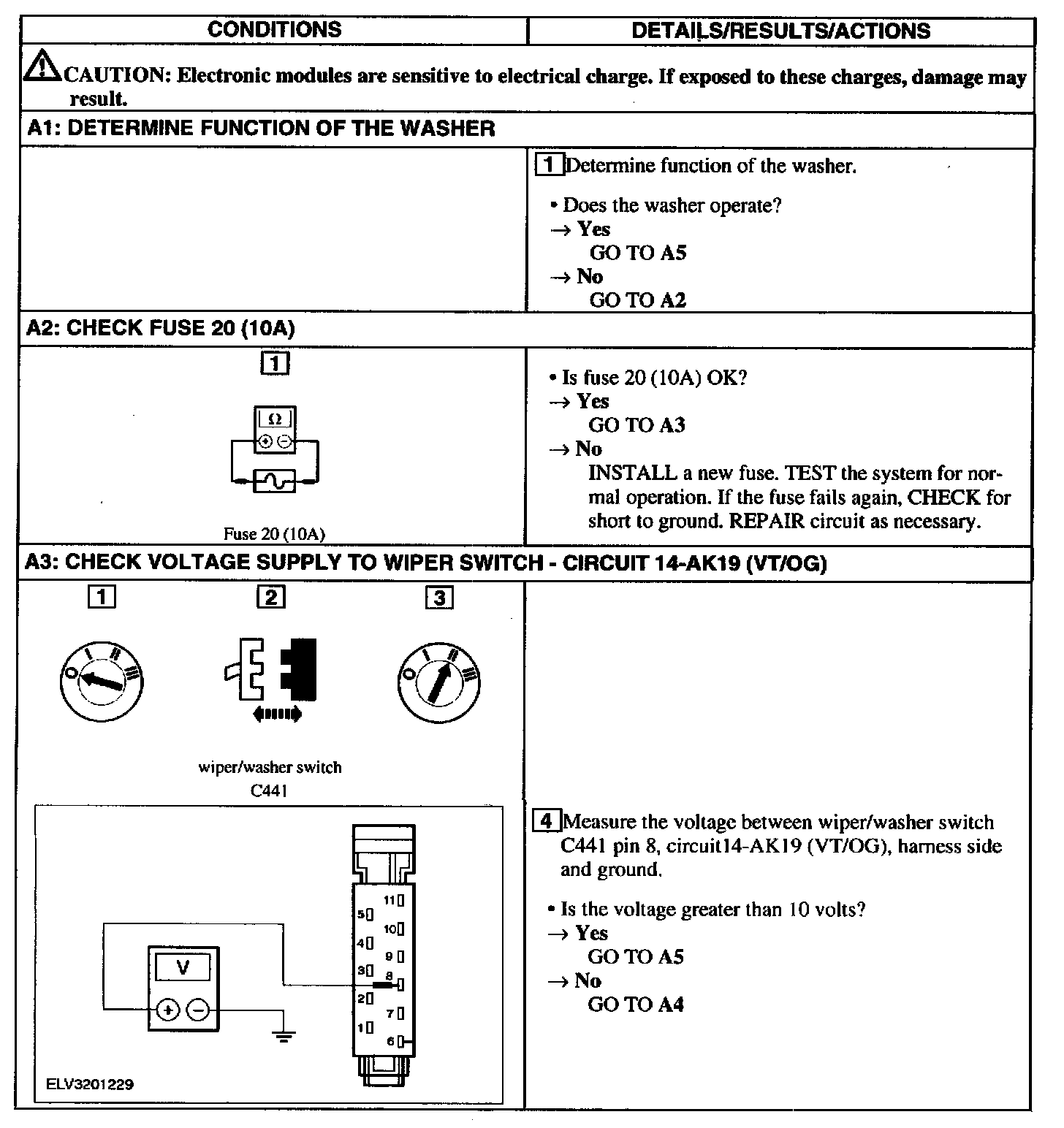

A1 - A3:

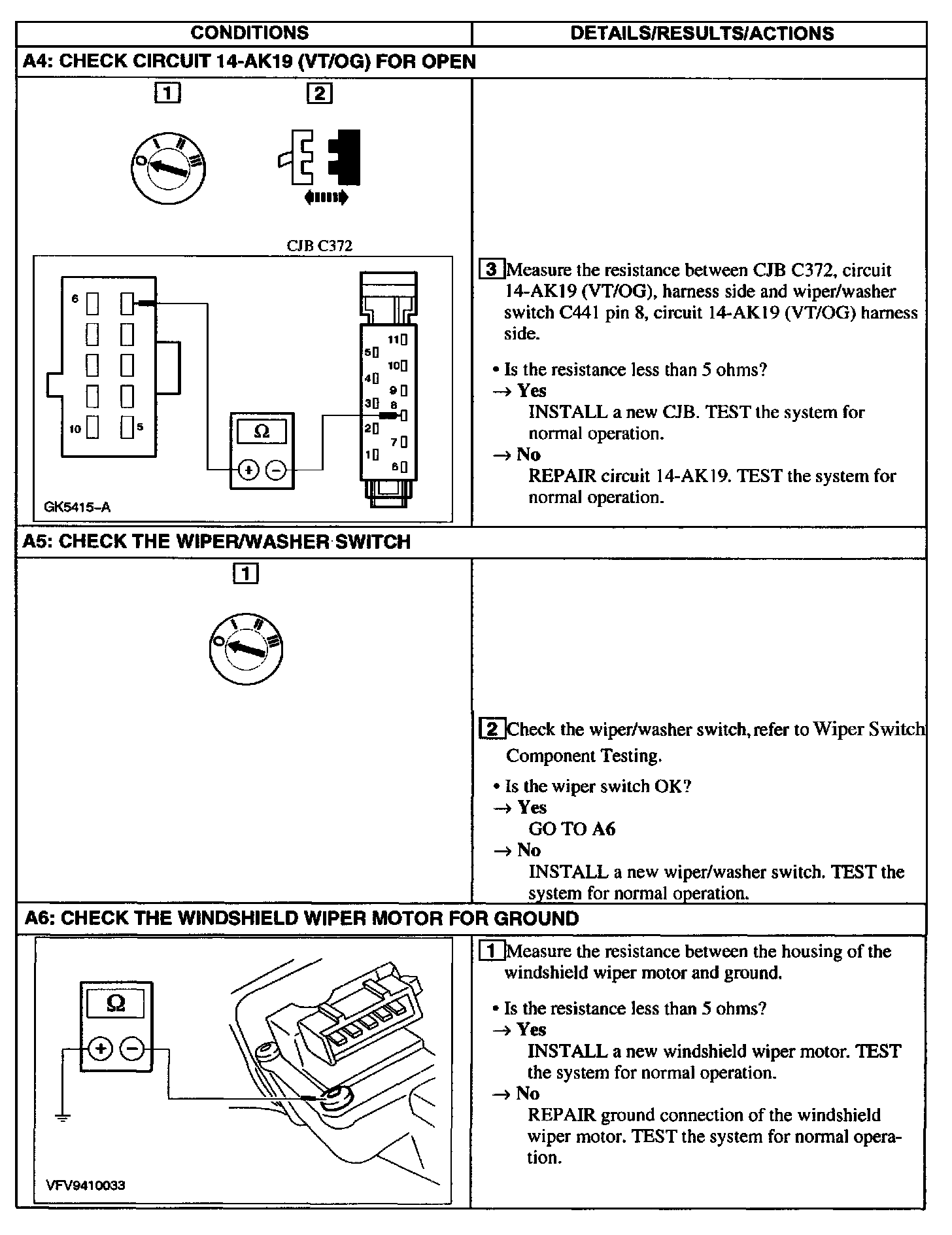

A4 - A6:
