Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Windows and Glass >> Testing and Inspection >> Pinpoint Tests >> Test E: Defrost System Is Inoperative

Test E: Defrost System Is Inoperative

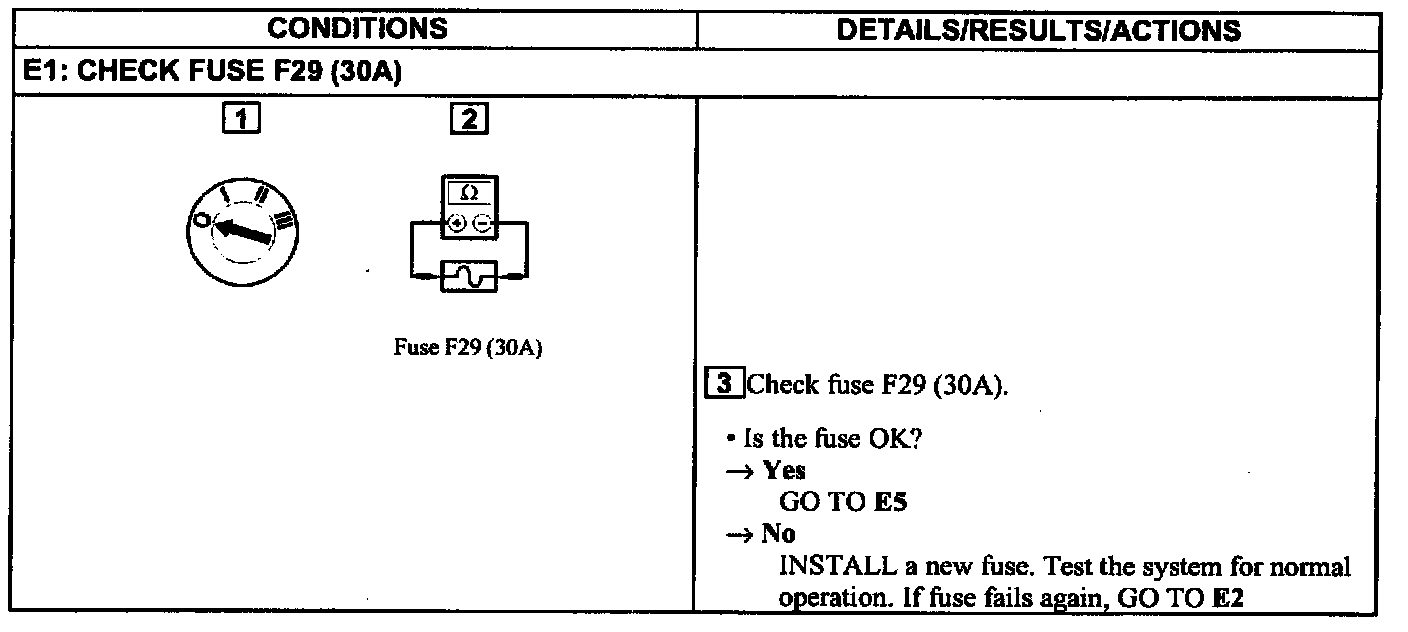

E1:

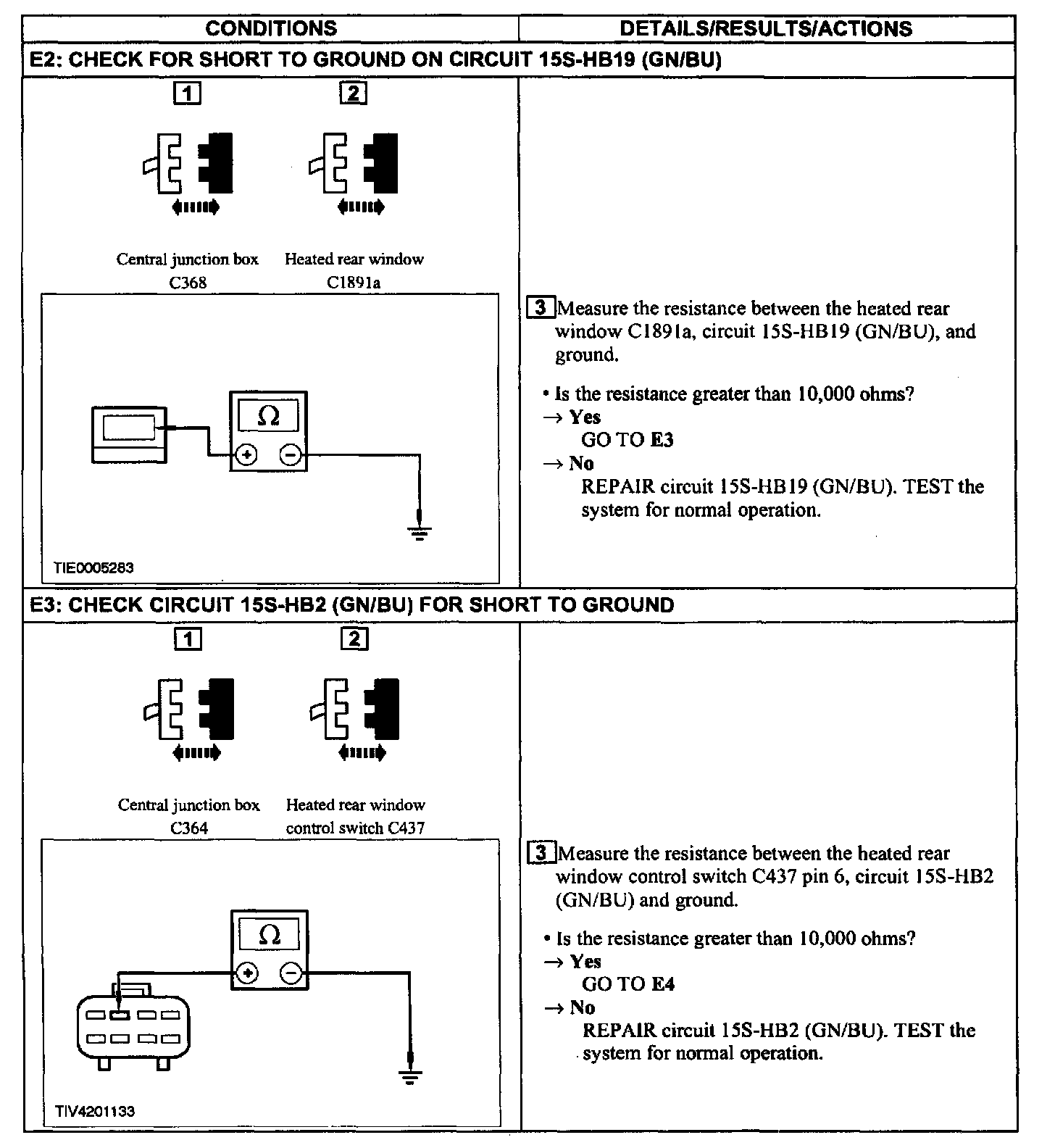

E2 - E3:

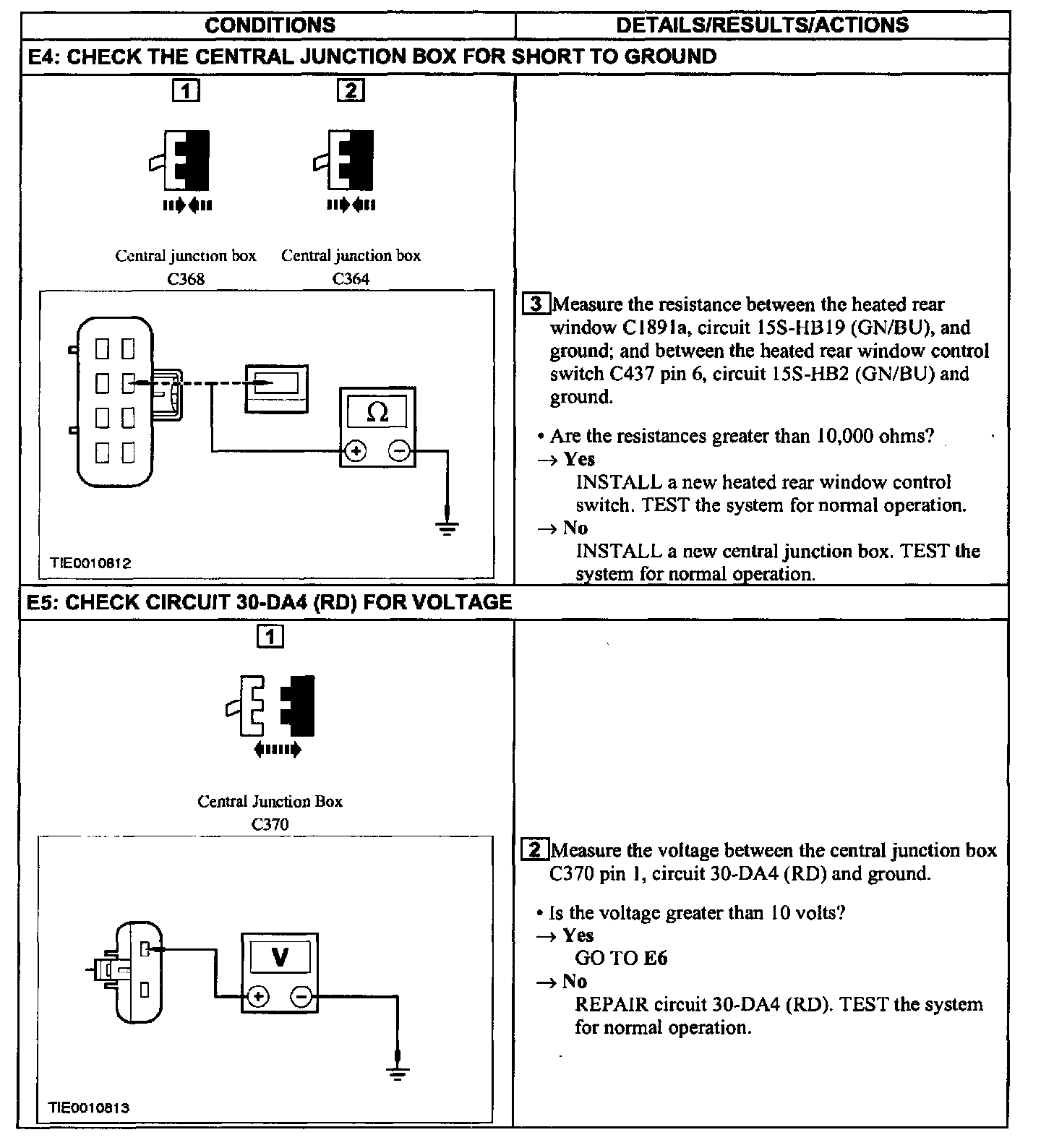

E4 - E5:

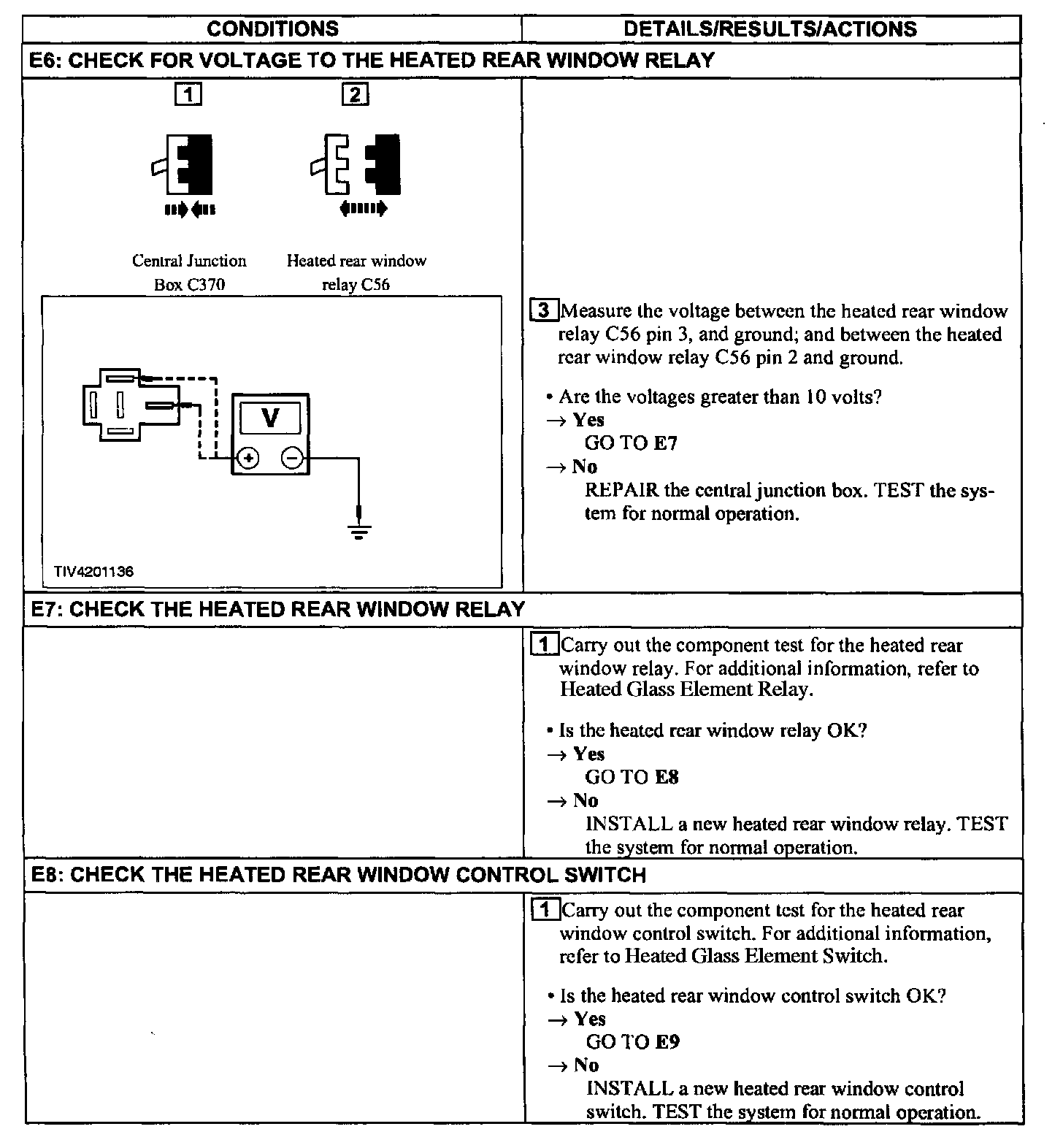

E6 - E8:

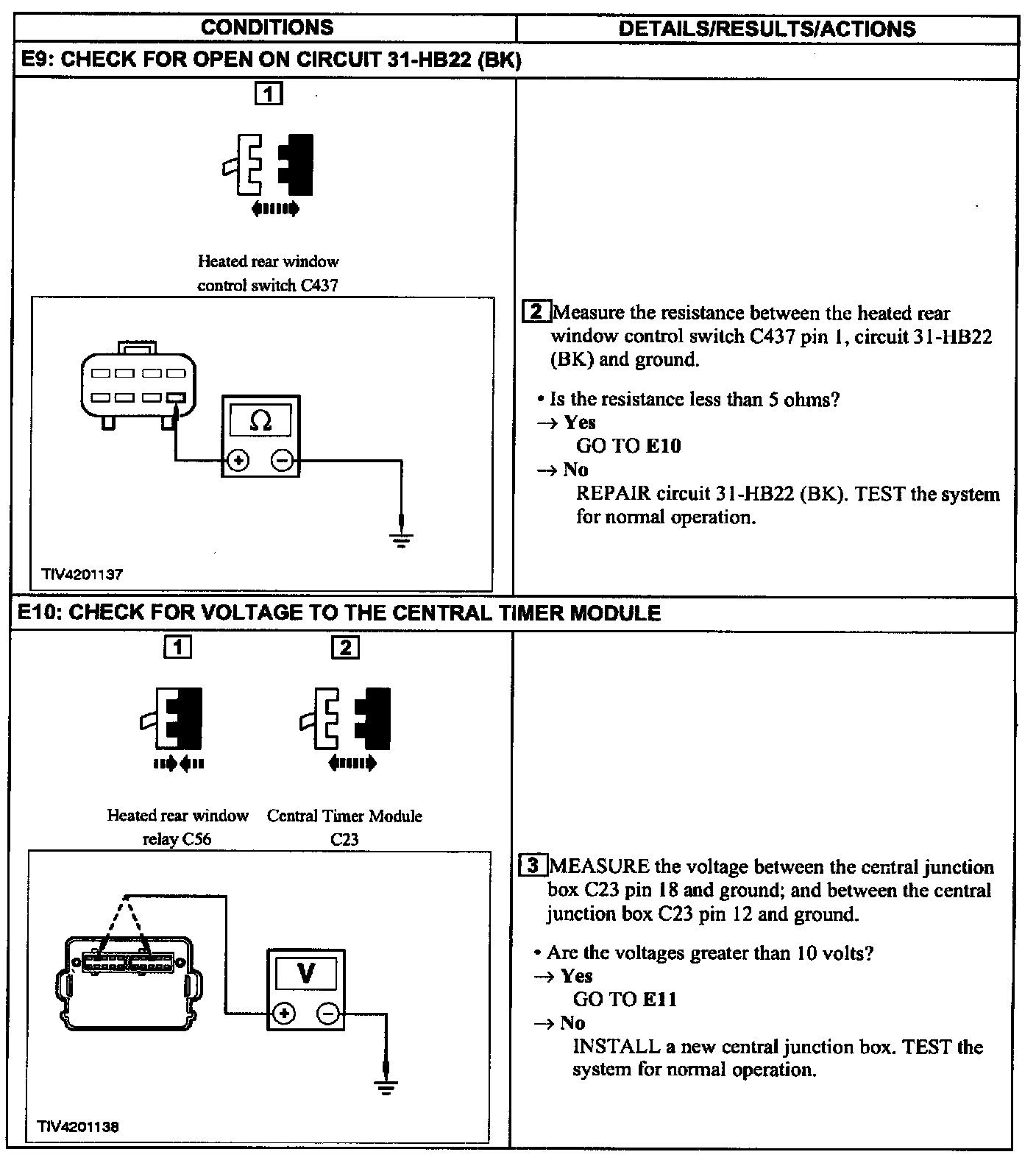

E9 - E10:

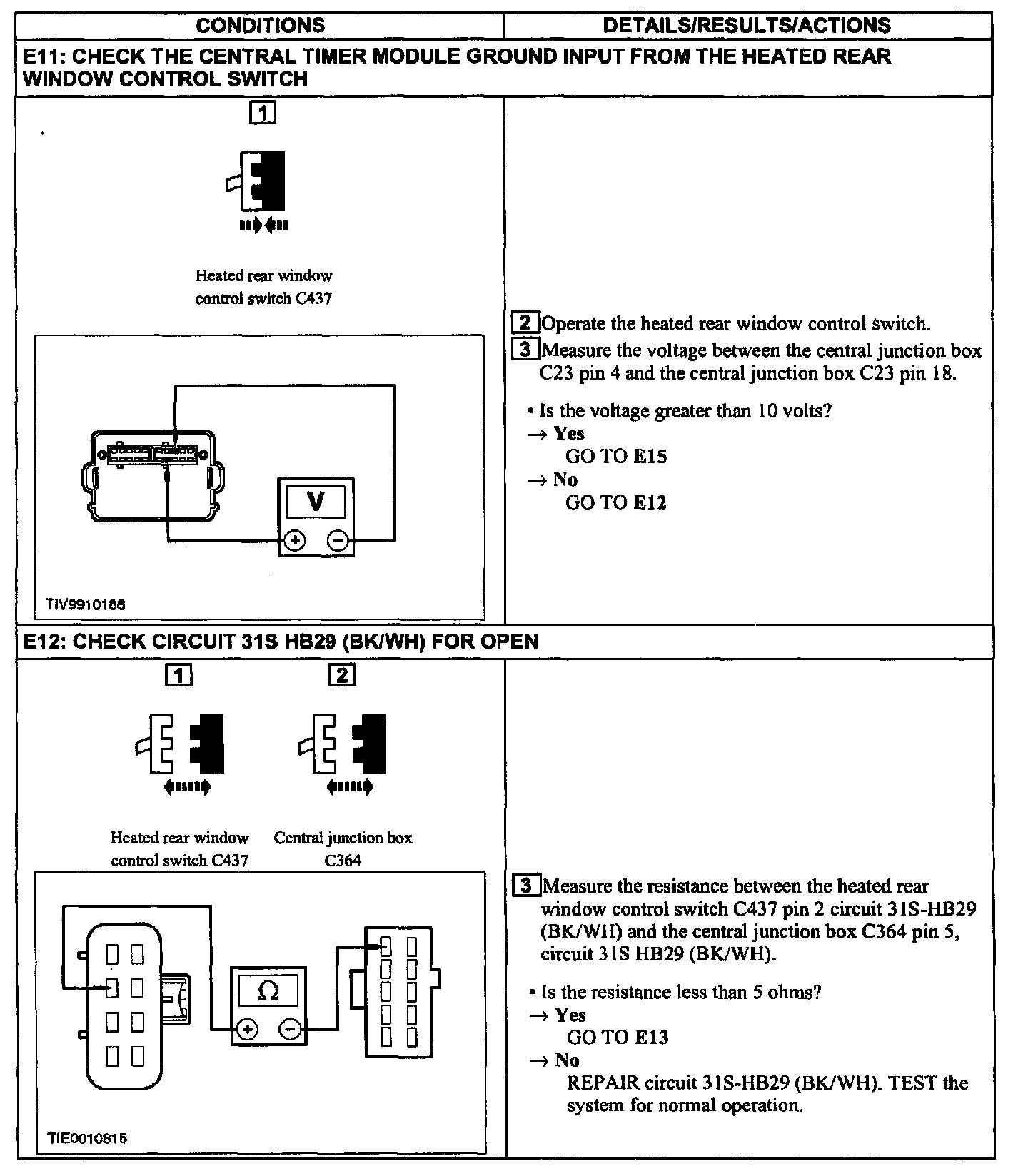

E11 - E12:

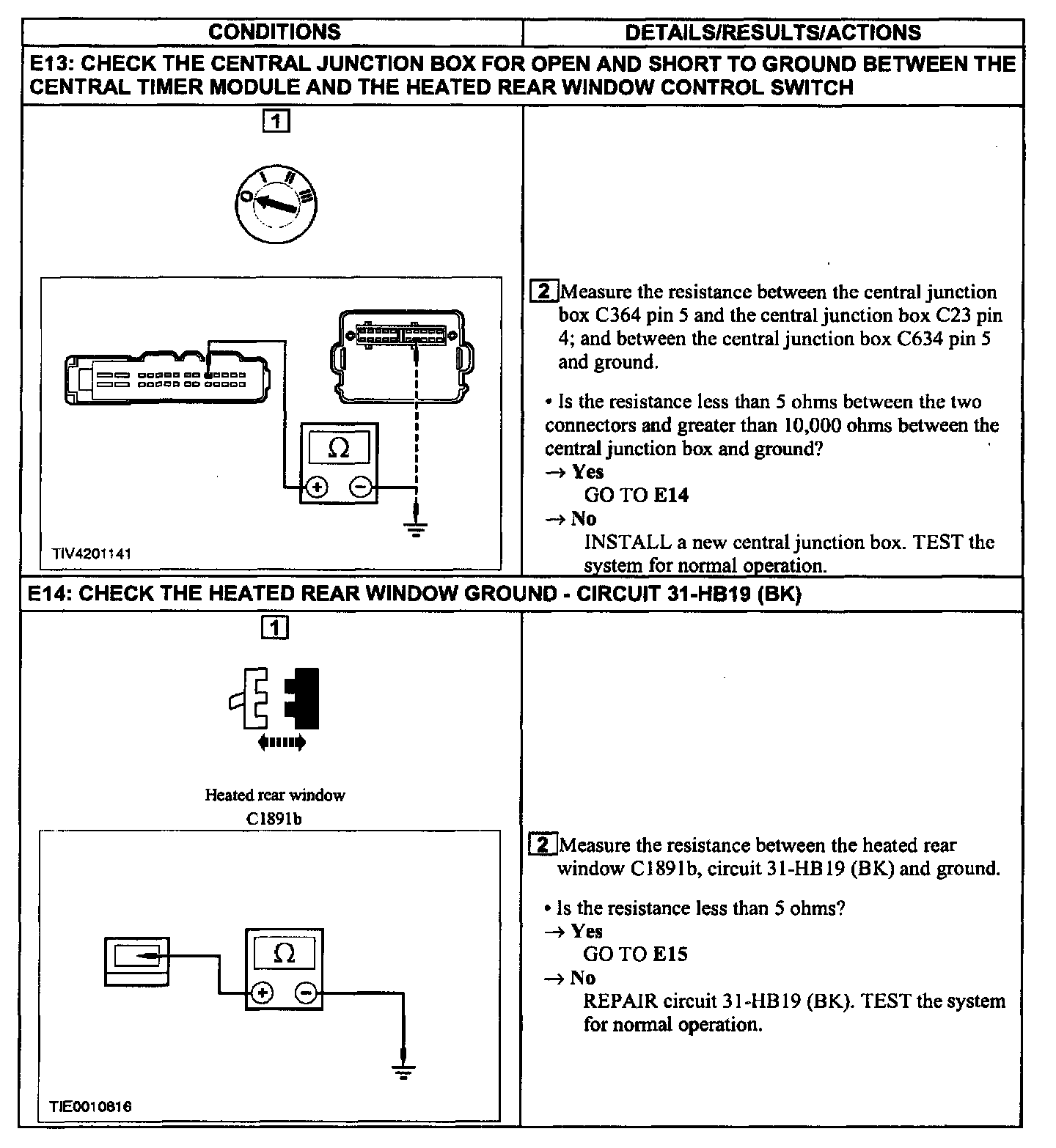

E13 - E14:

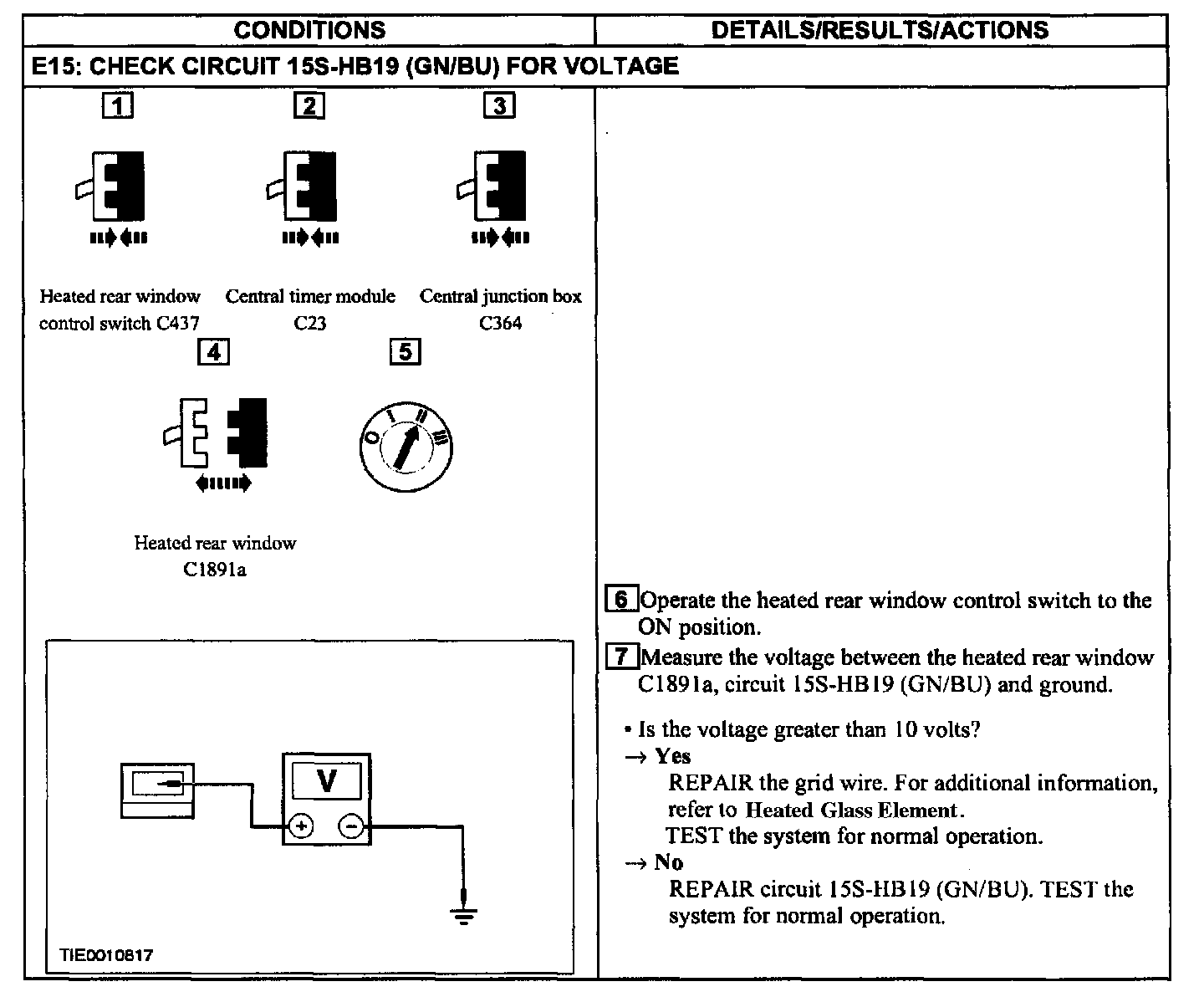

E15:
