Test E: Indicator Lamp Is Not Operating Properly
Test E: Indicator Lamp Is Not Operating Properly

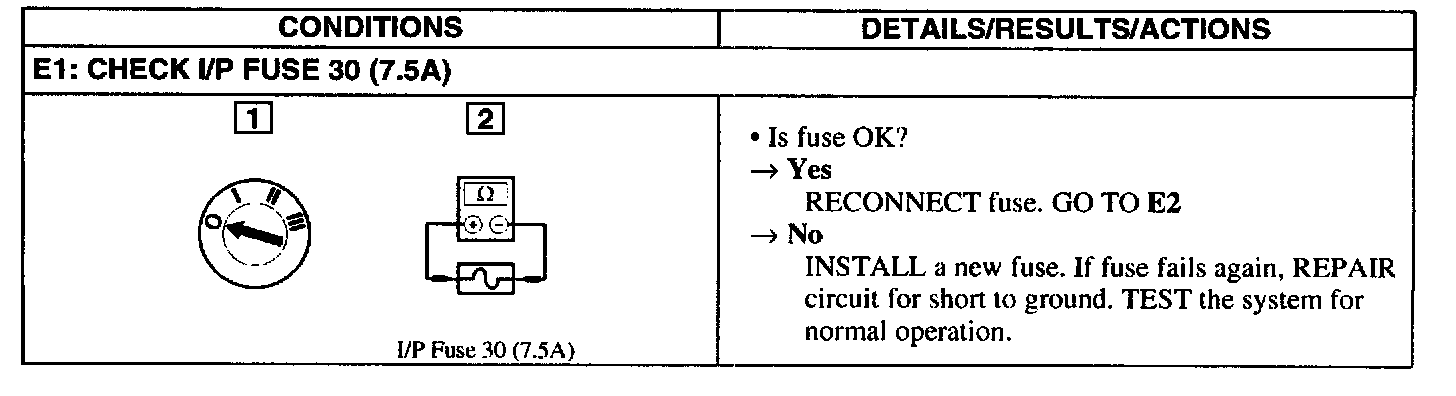

E1

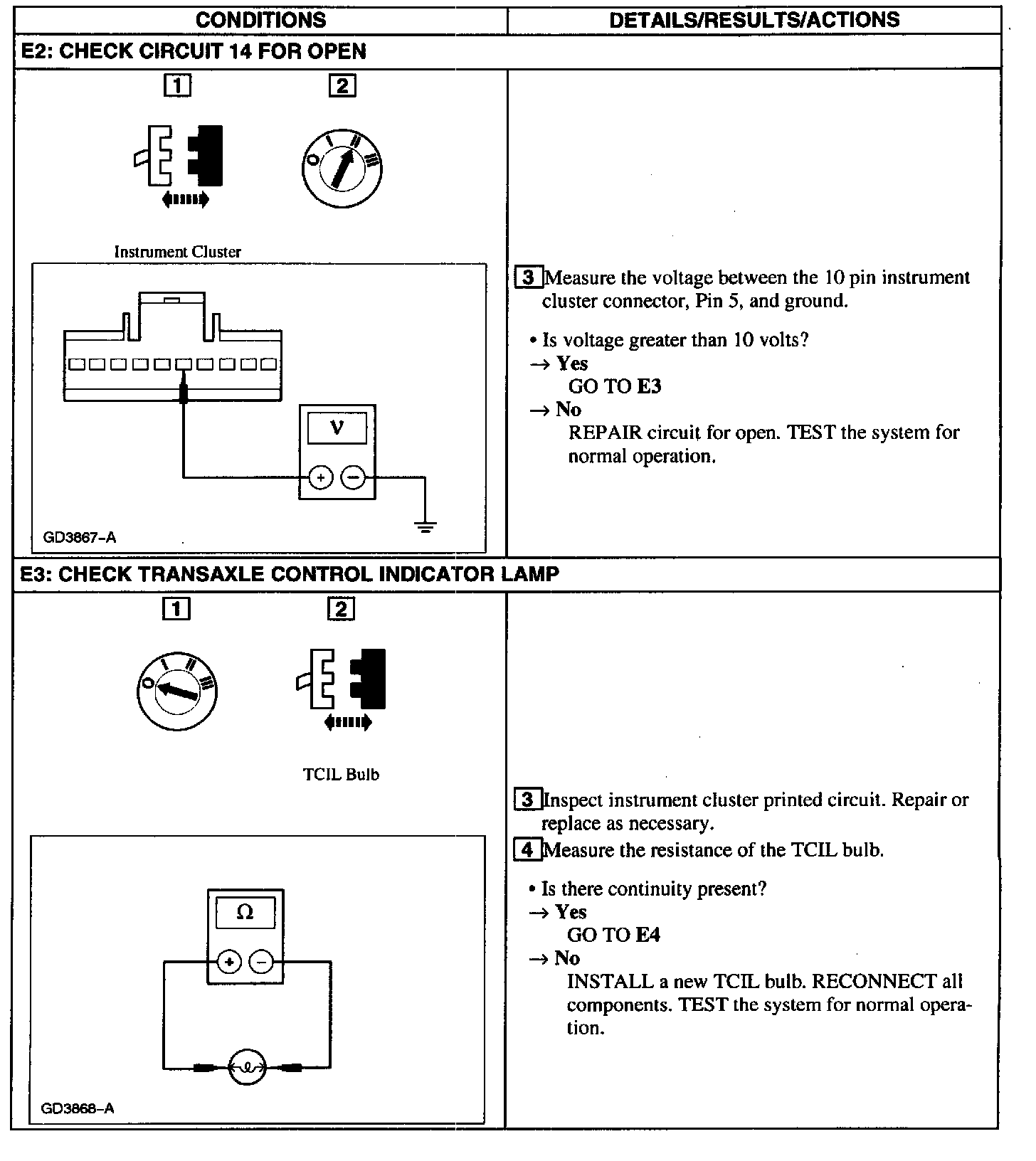

E2 - E3

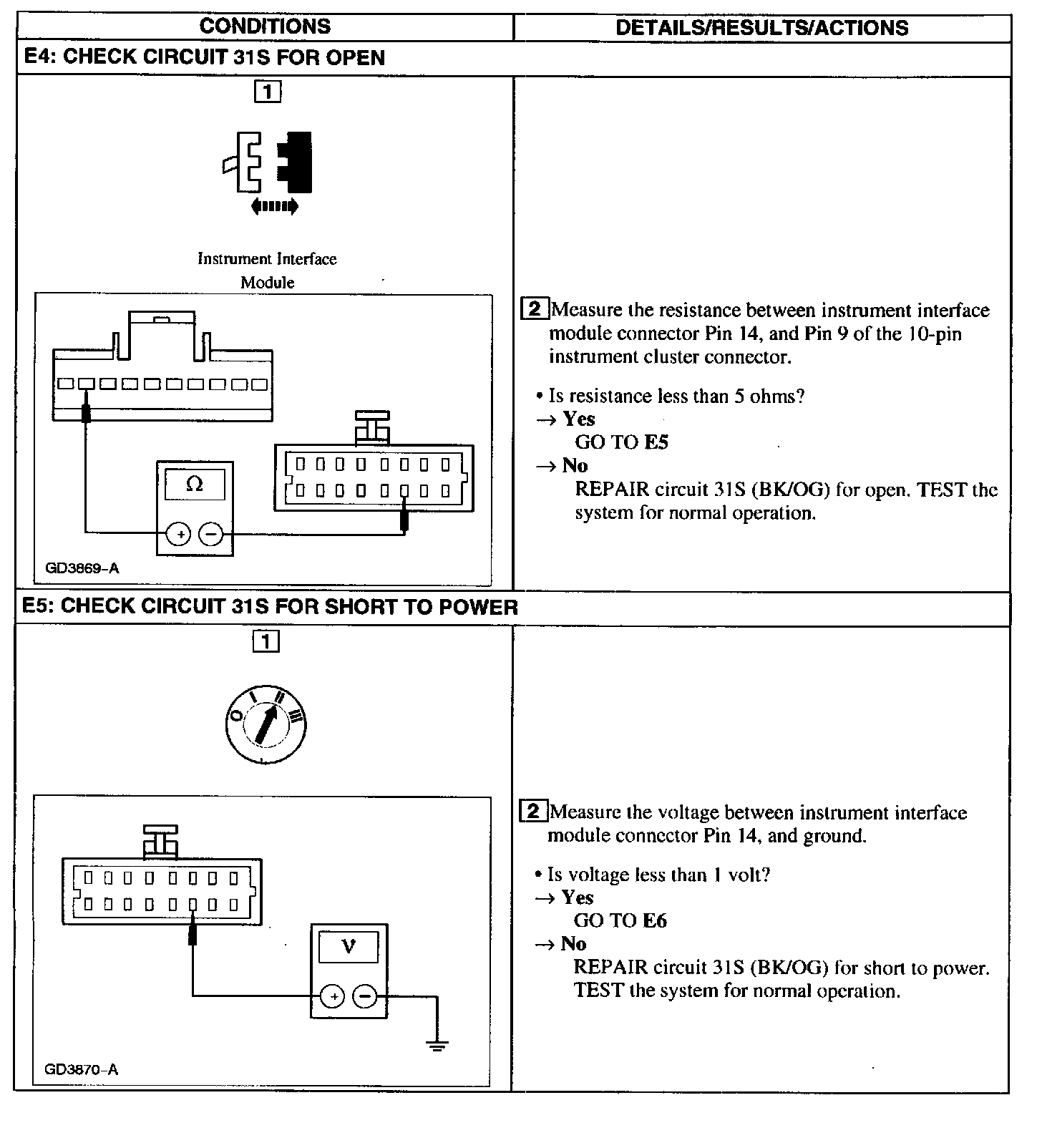

E4 - E5

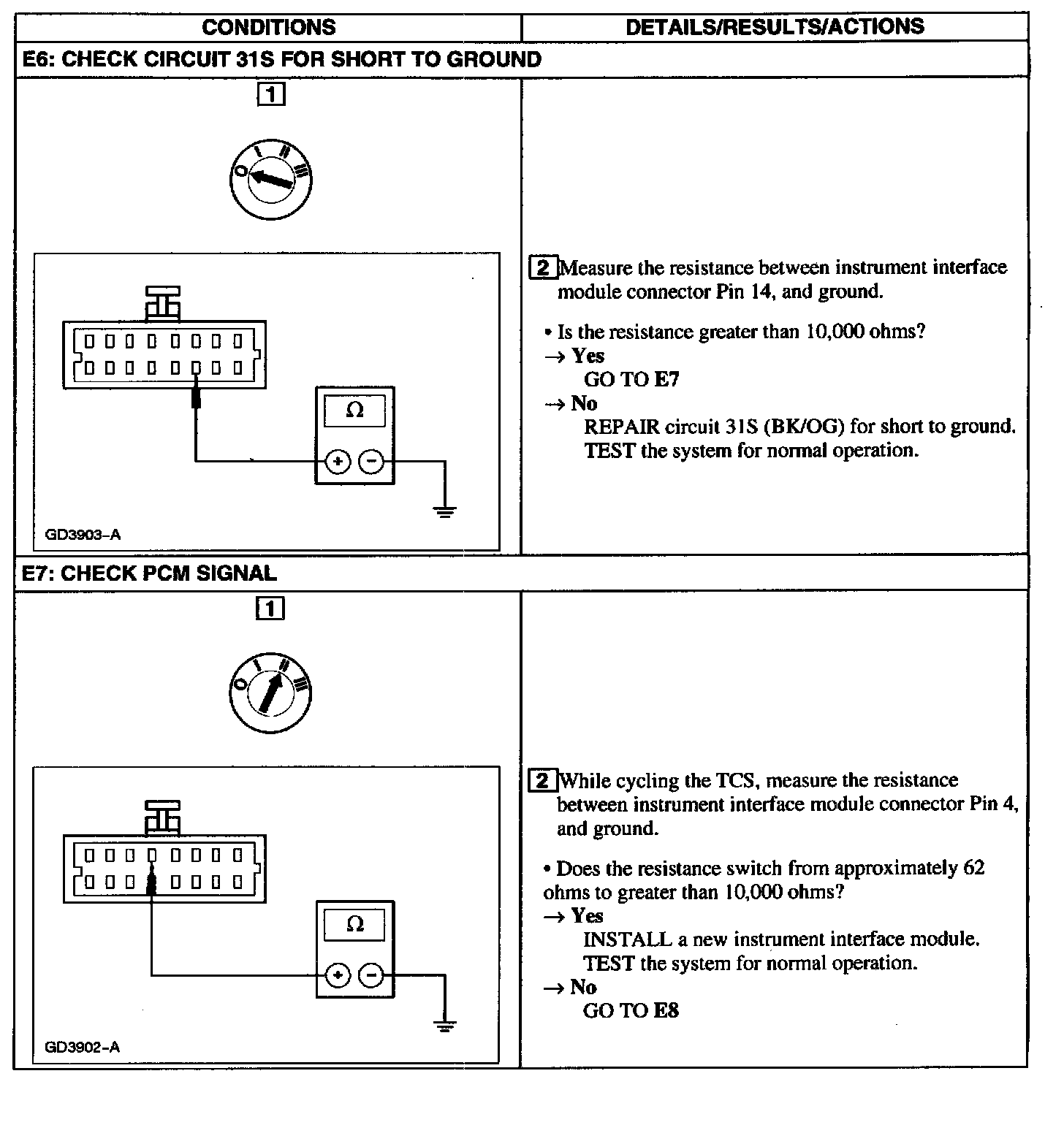

E6 - E7

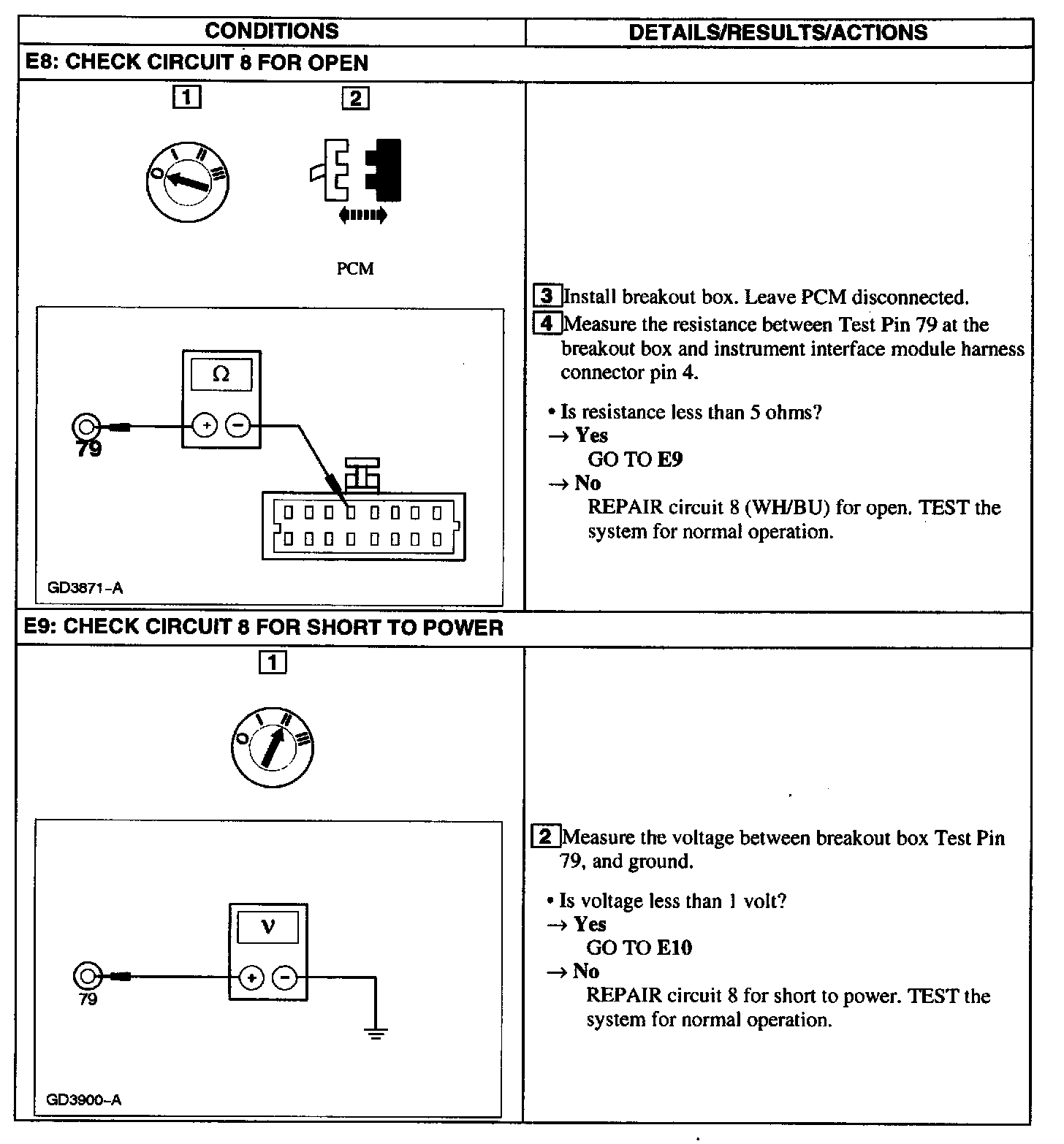

E8 - E9
E10
