Test A: Shift Solenoids

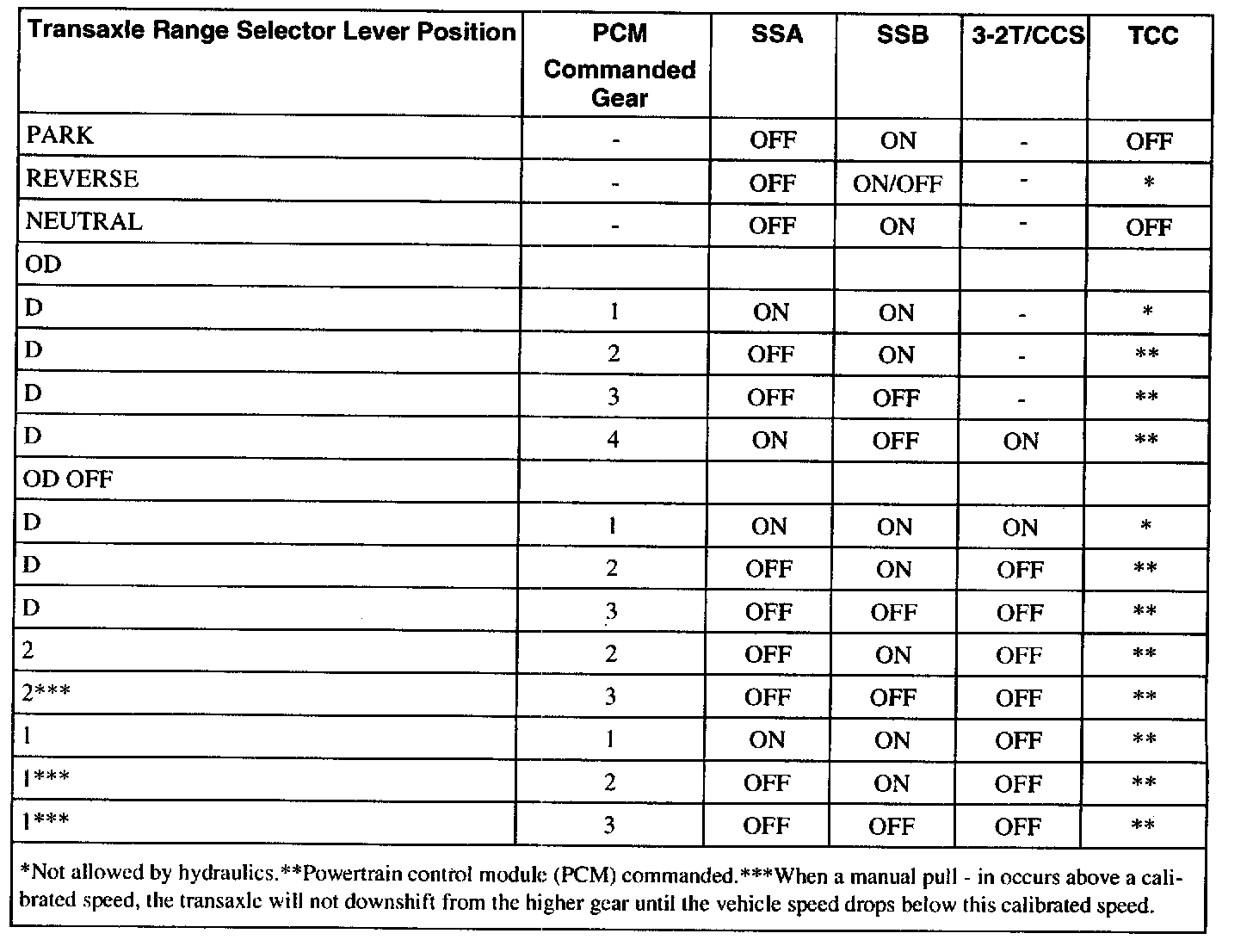

Solenoid Operation Chart-CD4E

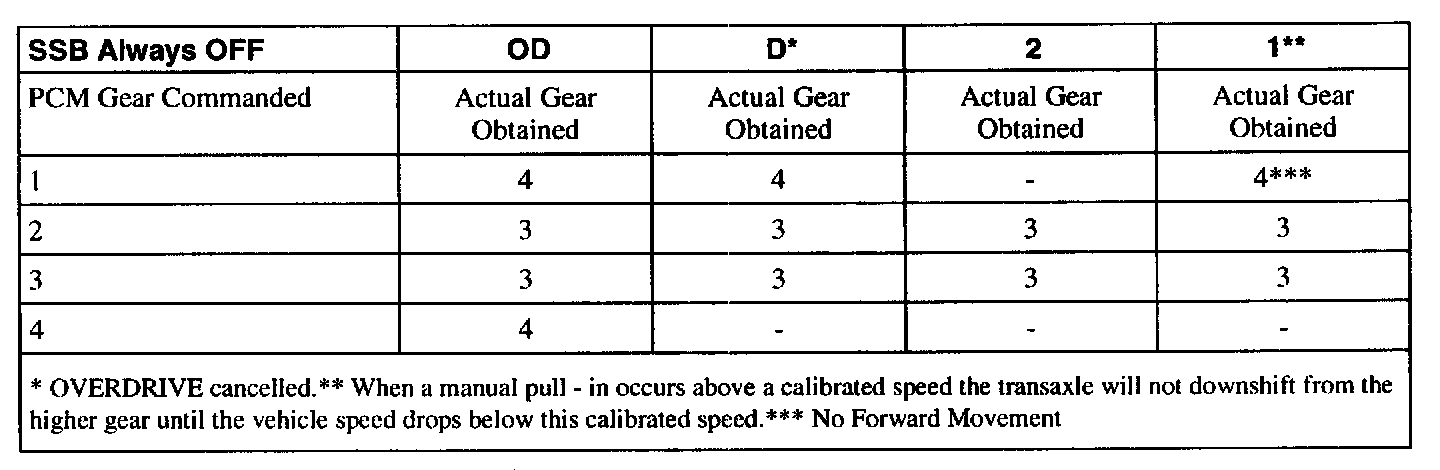

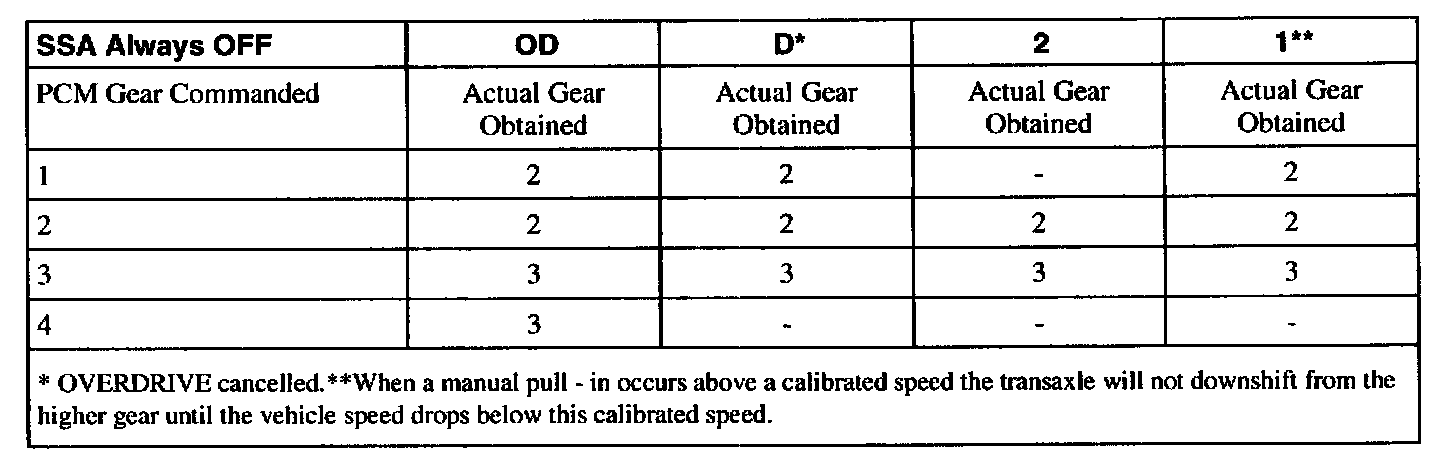

Shift Solenoid Failure Mode Chart "Always Off"








Failed OFF due to PCM and/or vehicle wiring concerns, and/or solenoid electrically stuck off, and/or hydraulically or mechanically stuck off.

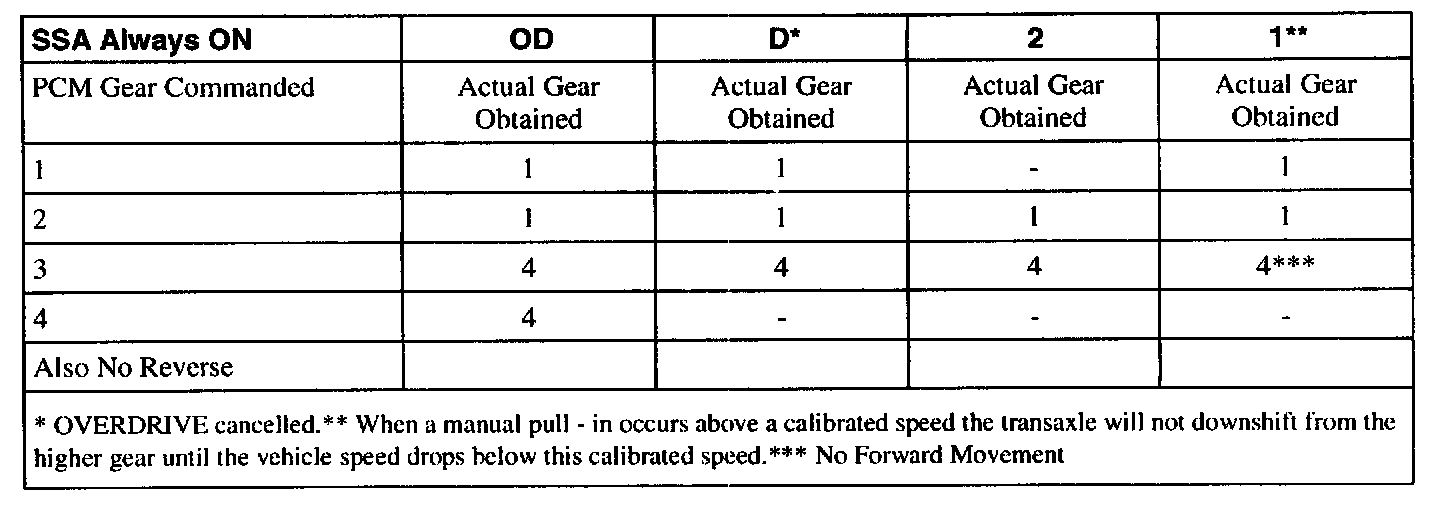

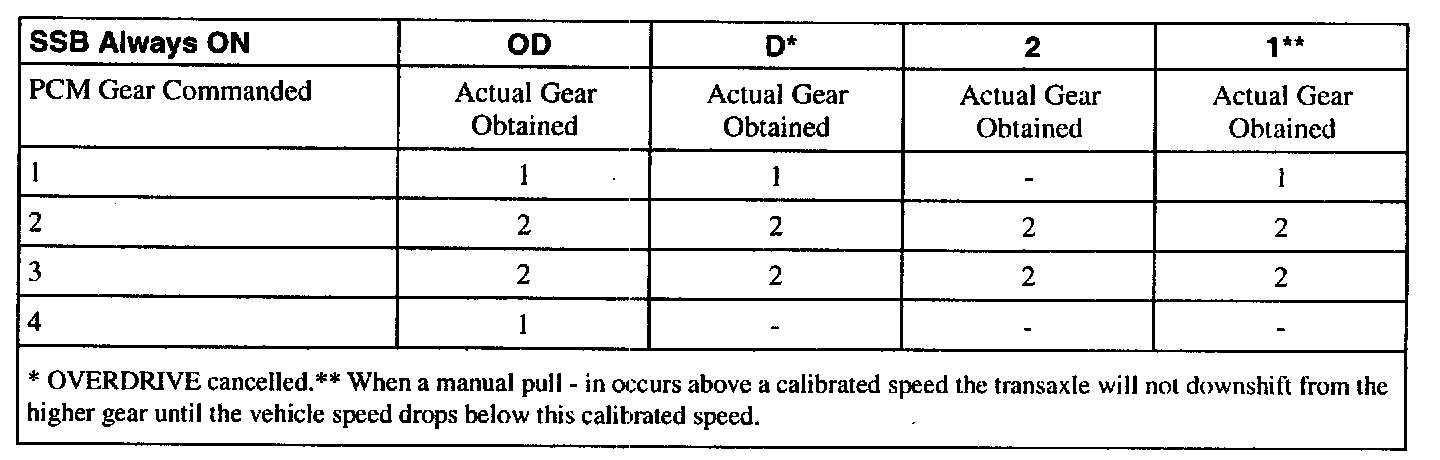

Shift Solenoid Failure Mode Chart "Always On"








Failed ON due to PCM and/or vehicle wiring concerns, and/or solenoid electrically stuck on, and/or hydraulically or mechanically stuck on.





A1

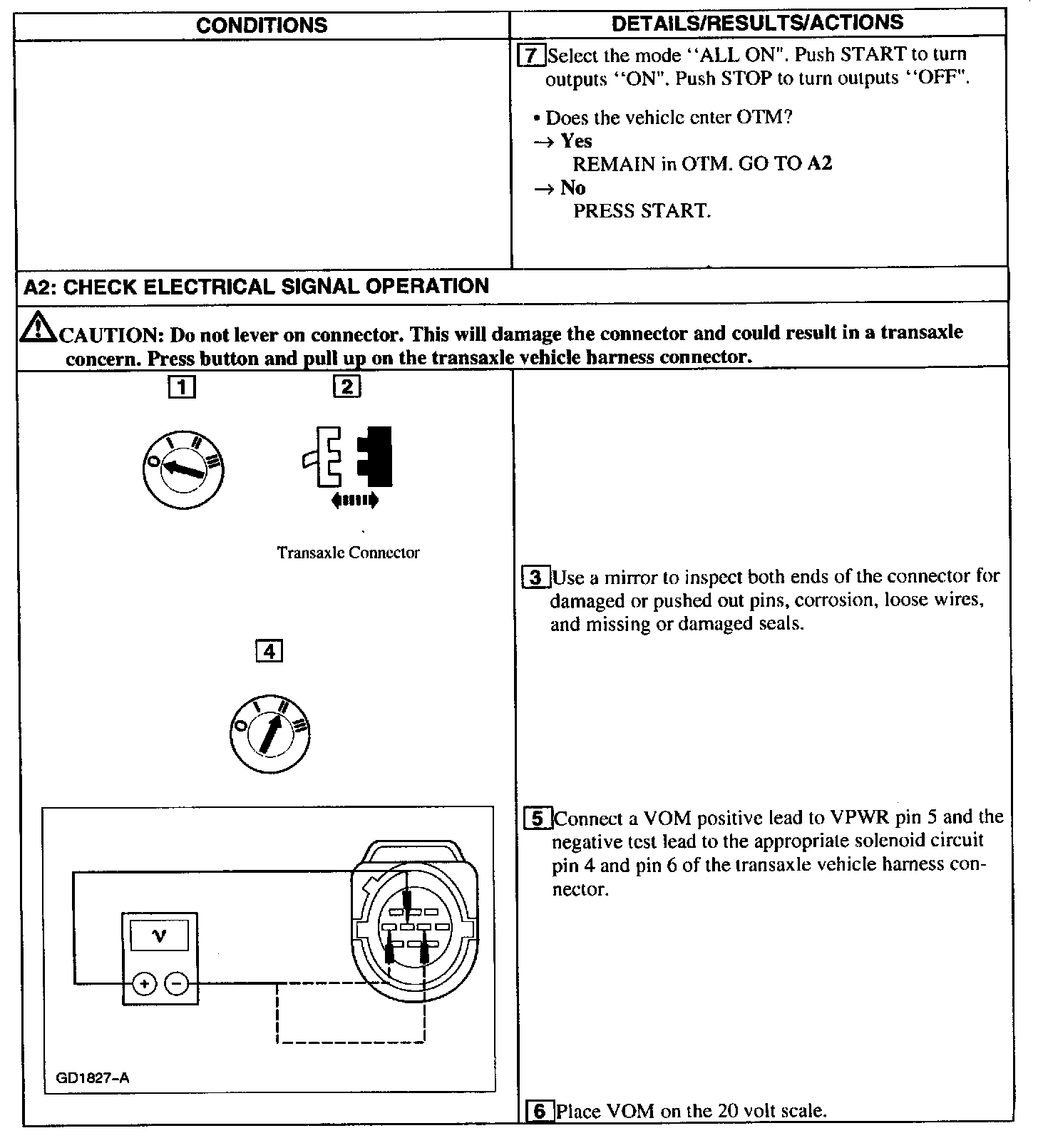

A1 - A2

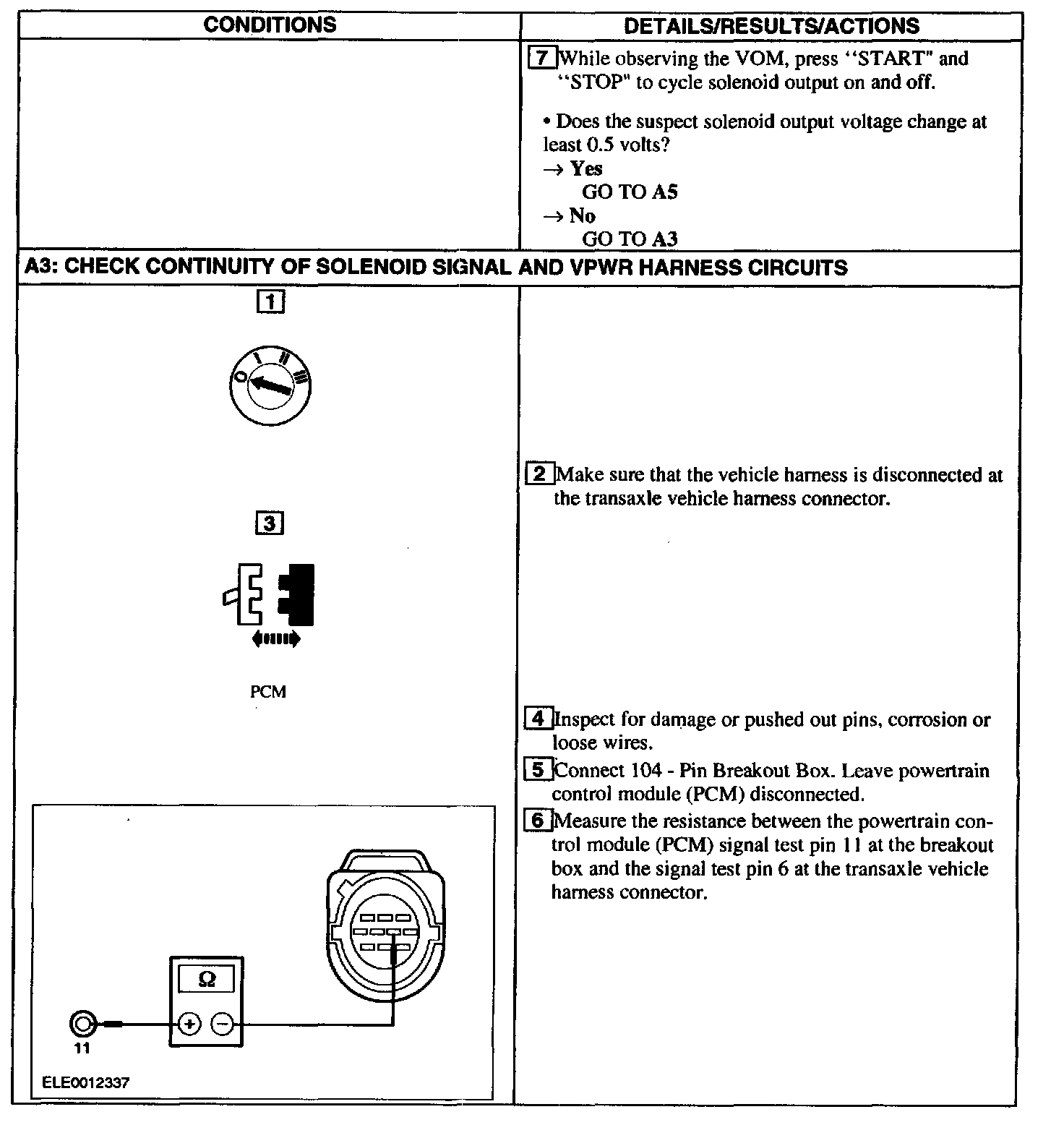

A2 - A3

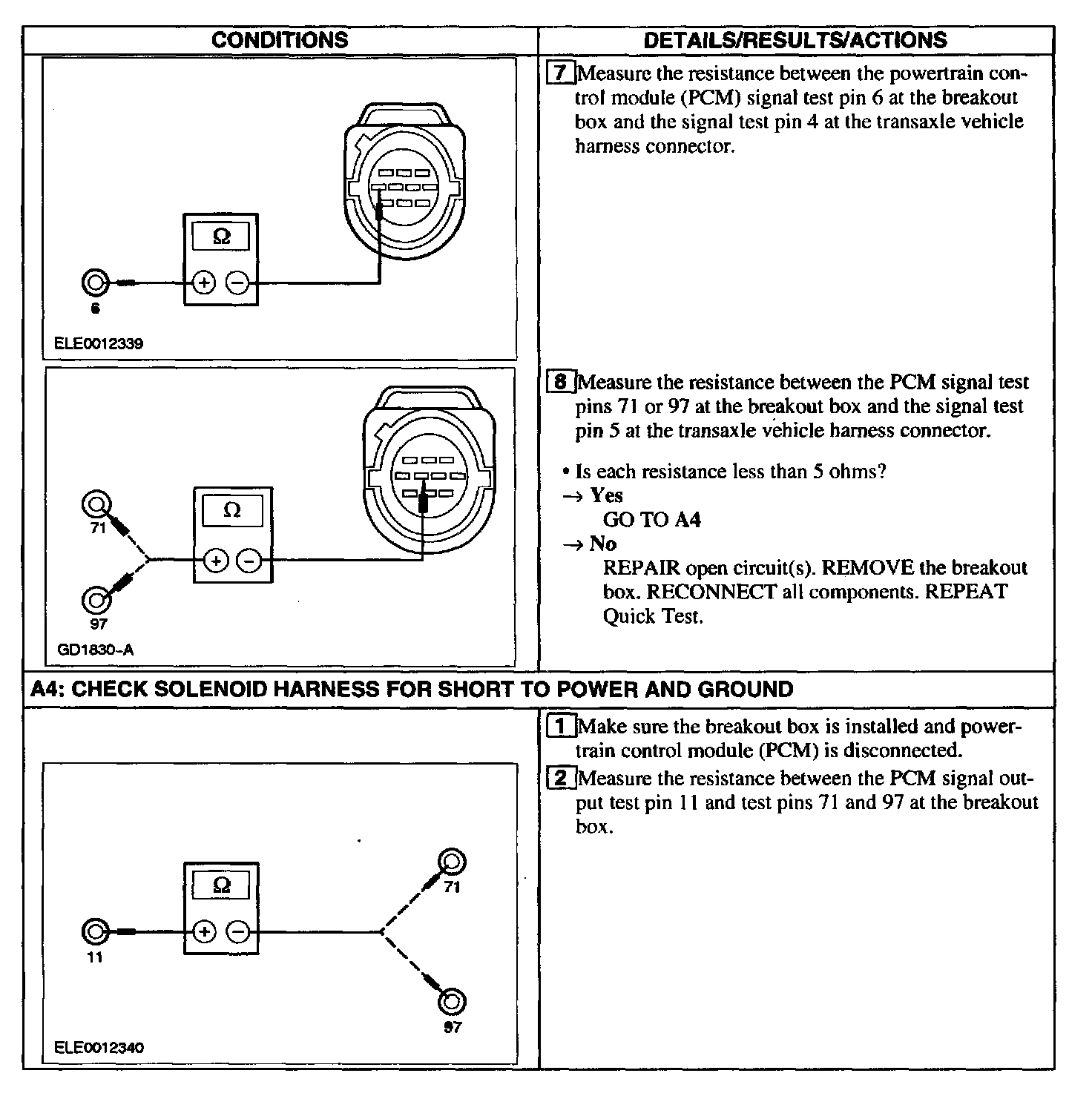

A3 - A4

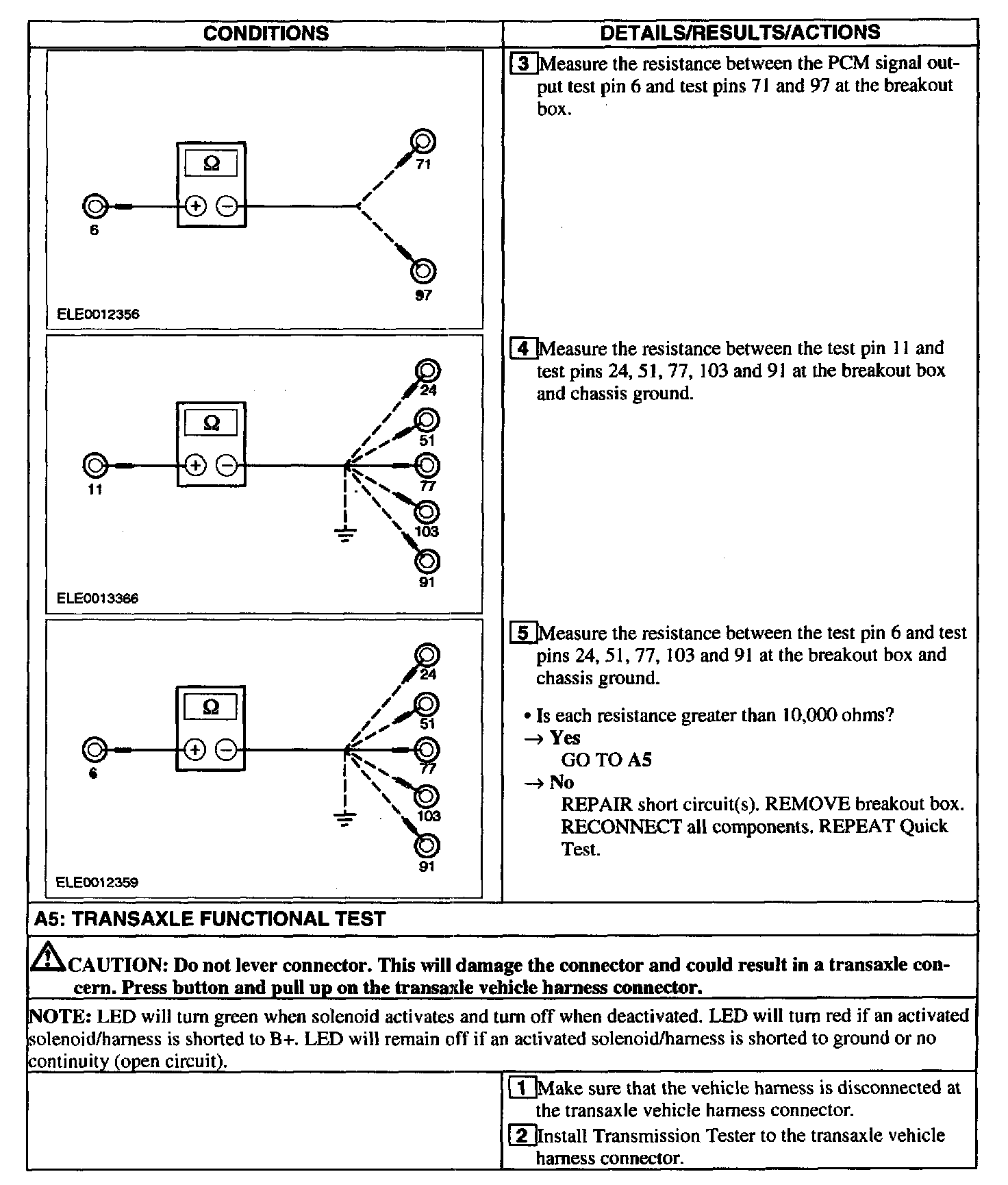

A4 - A5

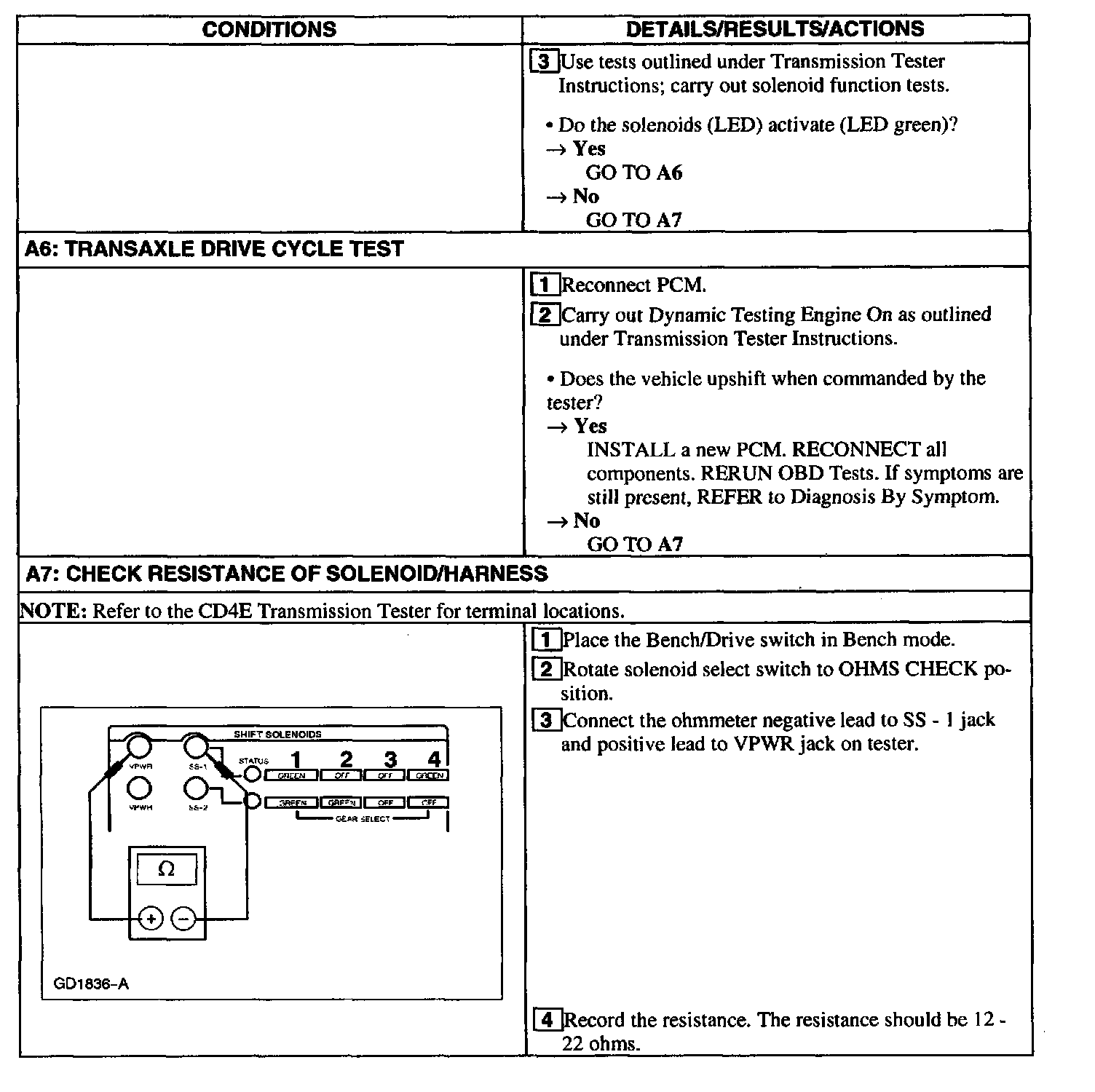

A5 - A7

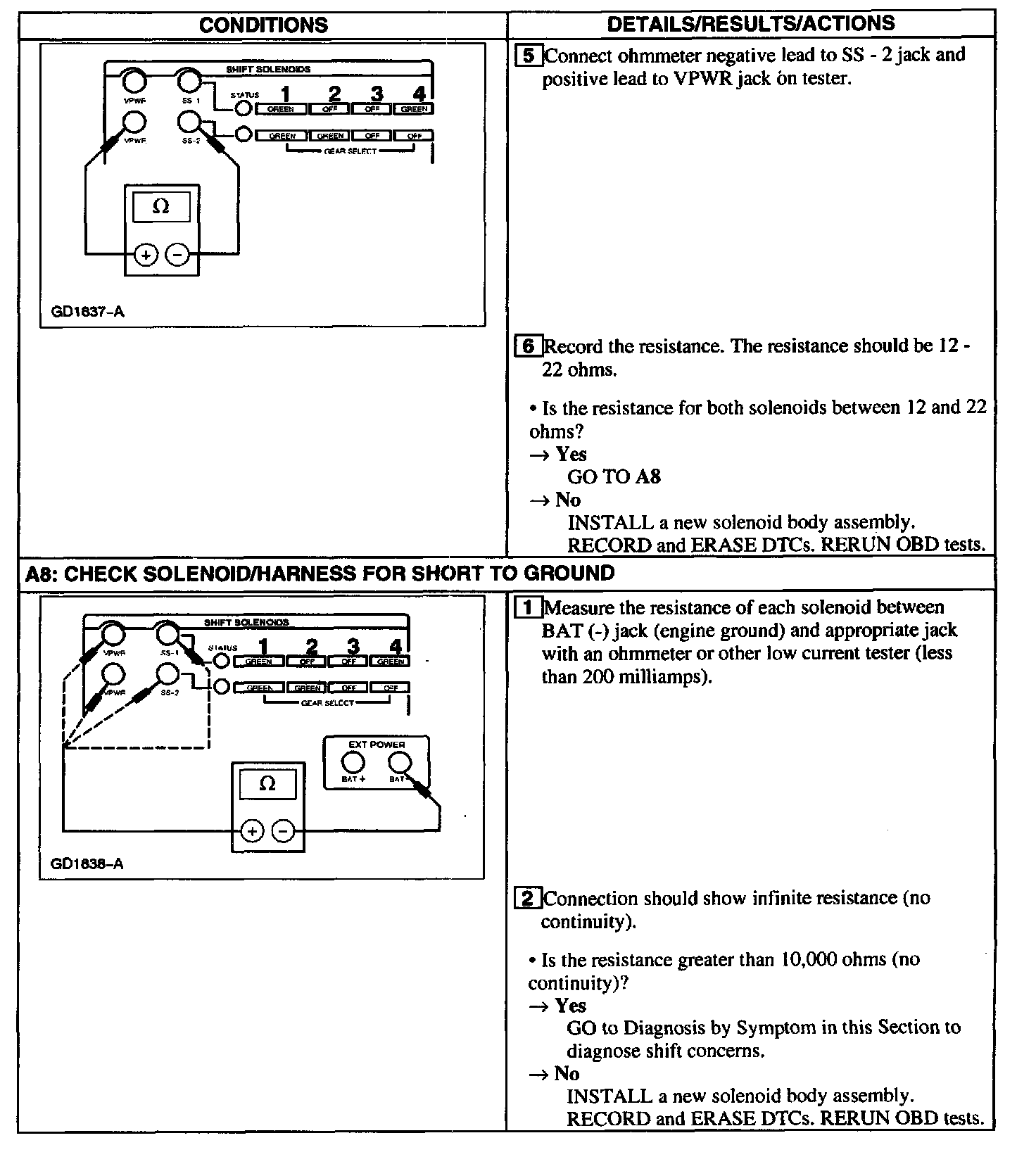

A7 - A8
